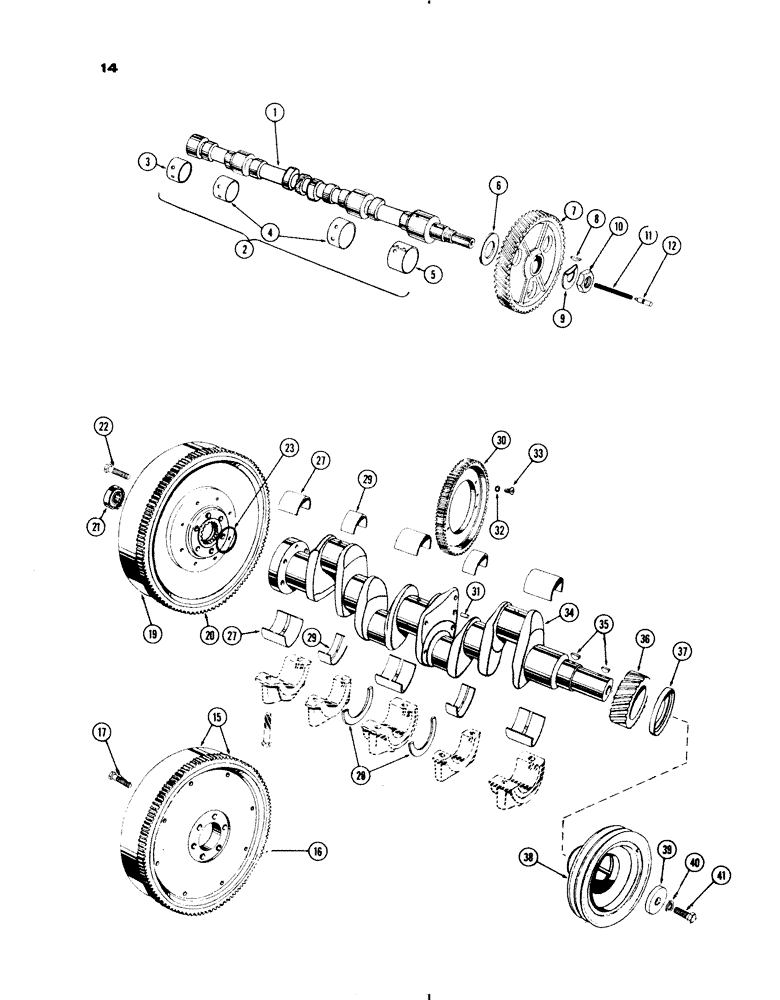

Запчасти Case IH 730 SERIES (014) - CAMSHAFT, CRANKSHAFT AND FLYWHEEL, 267 AND 301 DIESEL ENGINES (02) - ENGINE

1

A23495

CAMSHAFT

- engine

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (Set of 4), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, rear (1-5/32" wide)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, intermediate (1-7/16" wide)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - camshaft, front (1-21/32" wide)

1шт.

6

A21017

WASHER

- thrust

1шт.

7

A22604

GEAR

- camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to camshaft #18, 1/4" x 1 1/8"

1шт.

9

A26444

LOCK WASHER

- tab, camshaft nut lock

1шт.

10

A26445

NUT

- camshaft

1шт.

11

A27853

SPRING

- thrust plunger

1шт.

12

A27852

PLUNGER

- thrust

1шт.

15

A11548

FLYWHEEL ASSY. - eng. (w/torque conv.), Includes: Ref. 16, crankshaft

1шт.

16

A27920

GEAR

- ring, flywheel, crankshaft

1шт.

17

A11549

STEP BOLT

BOLT - flywheel (Use w/ref. 15) (9/16 x 1-17/32" N.F. spec.), crankshaft

2шт.

17

A11550

BOLT (SPREADER)

BOLT -flywheel (Use w/ref. 15) (5/8 x 1-1/2" N.F. spec.), crankshaft

4шт.

19

A7963

FLYWHEEL ASSY. - eng. (w/std. trans.), Includes: Ref. 20, crankshaft

1шт.

20

A27920

GEAR

- ring, flywheel, crankshaft

1шт.

21

A28237

BALL BEARING,34.99mm ID x 62mm OD x 14mm W

BEARING - pilot, flywheel, crankshaft

1шт.

22

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

BOLT - flywheel (Use w/ref. 19) (9/16 x 2-5/32" N.F. spec.), crankshaft

4шт.

22

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

BOLT - flywheel (Use w/ref. 19) (5/8 x 2-1/8" N.F., spec.), crankshaft

2шт.

23

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O"RING - flywheel (Use w/ref. 19) (2-3/4 x 3 x 1/8"), crankshaft

1шт.

27

A43168

BEARING LINER

LINER KIT - crankshaft brg. (Wide, std. size) (Replaces A28687), flywheel

3шт.

27

A43169

KIT

LINER KIT - crankshaft brg. (Wide, -.002") (Replaces A7182), flywheel

3шт.

27

A43170

LINING

LINER KIT - crankshaft brg. (Wide, -.010") (Replaces A7188), flywheel

3шт.

27

A43166

BEARING LINER

LINER KIT - crankshaft brg. (Wide, -.020") (Replaces A7194) (Replaces A42193), flywheel

3шт.

27

A43172

LINING

LINER KIT - crankshaft brg. (Wide, -.030") (Replaces A7200), flywheel

3шт.

28

A27835

WASHER

- thrust, crankshaft (Std. size), flywheel

2шт.

28

A7204

WASHER

- thrust, crankshaft (+.006"), flywheel

2шт.

29

A43158

BEARING LINER

LINER KIT - crankshaft brg. (Narrow, std. size) (Replaces A20394), flywheel

2шт.

29

A43159

BEARING LINER

LINER KIT - crankshaft brg. (Narrow, -.002") (Replaces A20579), flywheel

2шт.

29

A43160

BEARING LINER

(Replaces A20582), flywheel & crankshaft

1шт.

29

A43161

BEARING SET

LINER KIT - crankshaft brg. (Narrow, -.020") (Replaces A20585), crankshaft

2шт.

29

A43162

BEARING LINER

LINER KIT - crankshaft brg. (Narrow, -.030") (Replaces A20588), flywheel

2шт.

30

A22576

GEAR

ASSY. - drive, balancer, Includes: Ref. 31, flywheel & crankshaft

1шт.

31

A8134

PIN

- dowel, balancer drive gear, flywheel & crankshaft

1шт.

32

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, , Flywheel & crankshaft Ext Csk Tooth, 3/8"

4шт.

33

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - mtg., balancer gear, flywheel & crankshaft

4шт.

34

A166001

CRANKSHAFT

- engine (Order A42802 kit)(Replaces A22578), flywheel

1шт.

This kit includes two each of two size bolts (28-1032 and 28-1024). Use bolt relative to standard or metric flywheel. Use in lieu of shoulder bolts.

1шт.

35

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear and fan drive pulley, Flywheel #C, 5/16" x 1 1/8", HT

2шт.

36

A27837

GEAR

- crankshaft, front, flywheel

1шт.

37

A57342

SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2") (Replaces A23433), flywheel

1шт.

38

A23644

PULLEY

- fan drive, crankshaft, flywheel

1шт.

39

A27903

WASHER

- fan drive pulley screw (Replaces A23229), flywheel & crankshaft

1шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Flywheel & crankshaft 5/8"

1шт.

41

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Pulley retaining, Flywheel & crankshaft Hex, 5/8"-18 x 1 1/2", G5

1шт.
