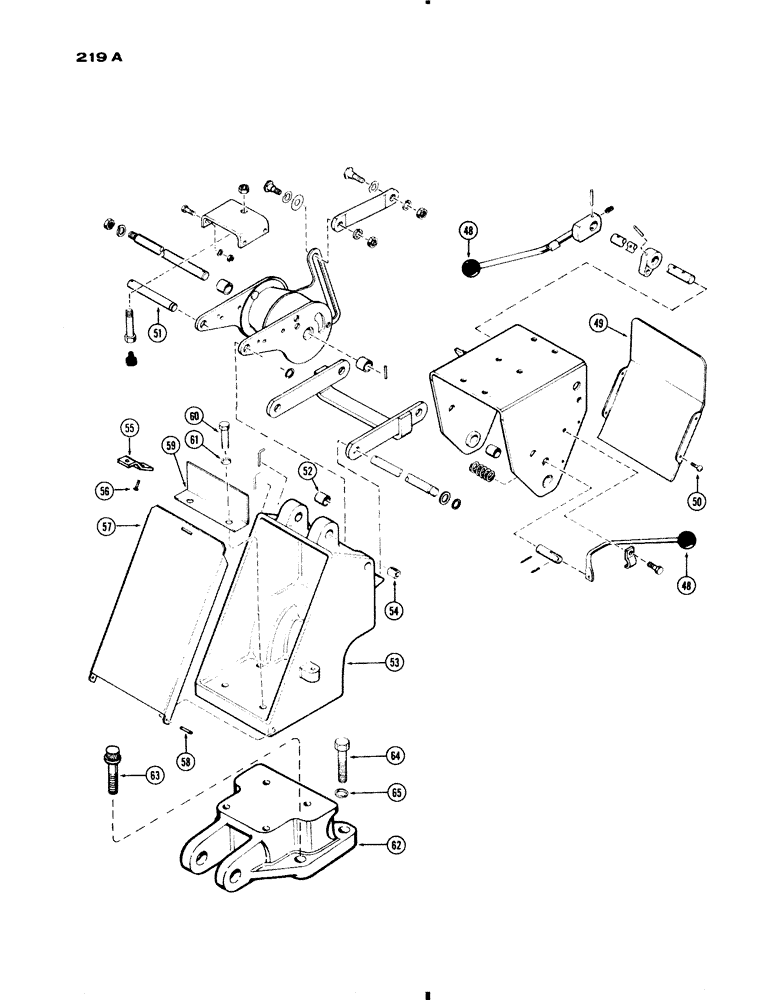

Запчасти Case IH 730 SERIES (219A) - SEAT SUSPENSION, 730 & 830 DELUXE EXCEPT GROVE, W/O FLANGED BUSH., USED PRIOR TO TRAC. S/N 8339332 (09) - CHASSIS/ATTACHMENTS

A34598

X

SEAT ASSY. - (cont. from Figure 218) (Order A57726)

1шт.

48

A23885

KNOB

- levers

2шт.

49

A23977

COVER - saddle

1шт.

50

187-1108

SCREW - cover (#8-32 x 3/8" self tapping)

4шт.

51

A23976

PIN

- pivot, torsion arm

1шт.

52

A24490

SPACER

- arm (11/16 x 3/4 x 2-1/8")

1шт.

53

A33500

SUPPORT

ASSY. - seat, Includes: Ref. 54 - 56

1шт.

54

A57709

BUSHING

- pivot pin (5/8 x 3/4 x 3/4" bronze)

2шт.

55

A32542

LATCH - tool box

1шт.

56

47-39

RIVET - latch (3/16 x 9/16" flat hd.)

1шт.

57

A34067

COVER

- tool box

1шт.

58

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , cover hinge 3/16" x 5/8", Slotted

2шт.

59

A33503

BAFFLE - tool box

1шт.

60

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- support (1/2 x 1-3/4" N.C. hex.)

4шт.

61

92-8

LOCK WASHER,1/2"

4шт.

62

A33504

BASE - seat support

1шт.

63

166-115

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

BOLT - base (5/8 x 2" N.C. 12 pt. hd.)

2шт.

64

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Base Hex, 5/8"-11 x 2", G5

2шт.

65

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
