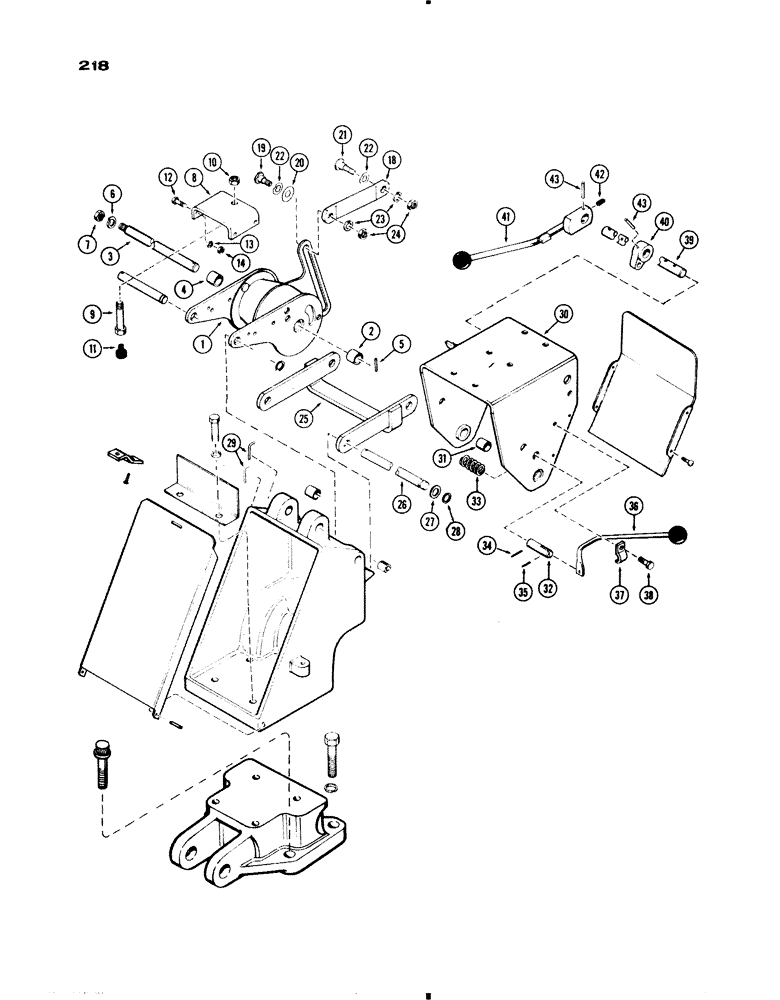

Запчасти Case IH 730 SERIES (218) - SEAT SUSPENSION, 730 AND 830 DELUXE EXCEPT GROVE, W/O FLANGED BUSH, USED PRIOR TO TRAC. S/N 8339332 (09) - CHASSIS/ATTACHMENTS

A34598

X

SEAT ASSY. - (Not illust.) (Order A57726), Includes: Ref. 1 - 1 - 43

1шт.

1

A34676

DIFFERENTIAL ASSY

ARM ASSY. - torsion spring (incl. Ref. 2) (Order A57714), Includes: Ref. 2, Start Serial: 8287346

1шт.

1

A23947

X

ARM ASSY. - torsion spring (incl. Ref. 2) (Order A57714), Includes: Ref. 2, Serial Range: -8287346

1шт.

2

A57709

BUSHING

- arm (5/8 x 3/4 x 3/4")

2шт.

3

A23965

BOLT

- torsion spring

1шт.

4

A23966

SPACER

- torsion spring (5/8 x 27/32 x 1-3/32")

2шт.

5

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, , Bolt stop 3/16" x 7/8", Slotted

1шт.

6

92-8

LOCK WASHER,1/2"

1шт.

7

25-158

JAM NUT,Jam, 1/2"-20, G5

- bolt ret. (1/2" N.F. hex., jam)

1шт.

8

A23975

BRACE - cross, seat mtg. arm

1шт.

9

A33741

BOLT

- bumper seat

1шт.

10

25-108

NUT,1/2"-13, G5

- bumper bolt (1/2" N.C. hex.)

1шт.

11

A24372

BUMPER - seat (rubber)

1шт.

12

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- brace (1/4 x 7/8" N.F. hex.)

4шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

25-114

NUT,1/4"-28, G5

- (1/4" N.F. hex.)

4шт.

18

A23962

LINK - seat adjusting

1шт.

19

A27277

STEP BOLT

BOLT - shoulder, link, rear (3/8" N.F. x 1-1/4")

1шт.

20

A30752

WASHER

- rear link bolt (17/32 x 1-1/16 x 1/32")

1шт.

21

A23964

BOLT - shoulder, link, front (3/8" N.F. x 1-7/16")

1шт.

22

A23963

WASHER - bolt tension (spring type)

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

25

A23970

LINK

- parallel

1шт.

26

A34515

X

PIN - parallel link (8-5/16" long) (use A57725) (req. 1-A34516 lock pin & 1-A27811 "E" ring)

1шт.

26

A23973

PIN

- parallel link (req. 2-A27811 "E" rings)

1шт.

27

A7915

SHIM,.0359" Thk

Washer - Spacer (21/32" x 1-1/8" x 20 ga.) .0359" Thk

4шт.

28

A27811

CIRCLIP,#X74, .616" Dia, E-Type

RING - retaining, , parallel links #X74, .616" Dia, E-Type

2шт.

29

A34516

PIN

- lock (pivot & link pins)

2шт.

30

A32544

SADDLE

ASSY. - seat mtg., Includes: Ref. 31 - 34

1шт.

31

A13583

BUSHING

- saddle (5/8 x 3/4 x 3/8")

2шт.

32

A23967

ROD

- lock lever

1шт.

33

A23969

SPRING

- lock lever

1шт.

34

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Rod 1/8" x 7/8", Slotted

1шт.

35

138-69

LOCK PIN,5/32" x 1/2", Slotted

PIN, , lever 5/32" x 1/2", Slotted

1шт.

36

A32546

LEVER - seat lock

1шт.

37

A24014

CLIP - lock lever

1шт.

38

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- clip (1/4 x 3/4" N.F. hex.)

1шт.

39

A32549

SHAFT - cross, adj. lever

1шт.

40

A23957

LEVER - seat adj.

1шт.

41

A32547

LEVER - seat adj.

1шт.

42

A23646

SPRING

- lever tension

1шт.

43

138-2002

PIN,3/16" x 1 1/4", Coiled

Cross shaft 3/16" x 1 1/4", Coiled

4шт.
