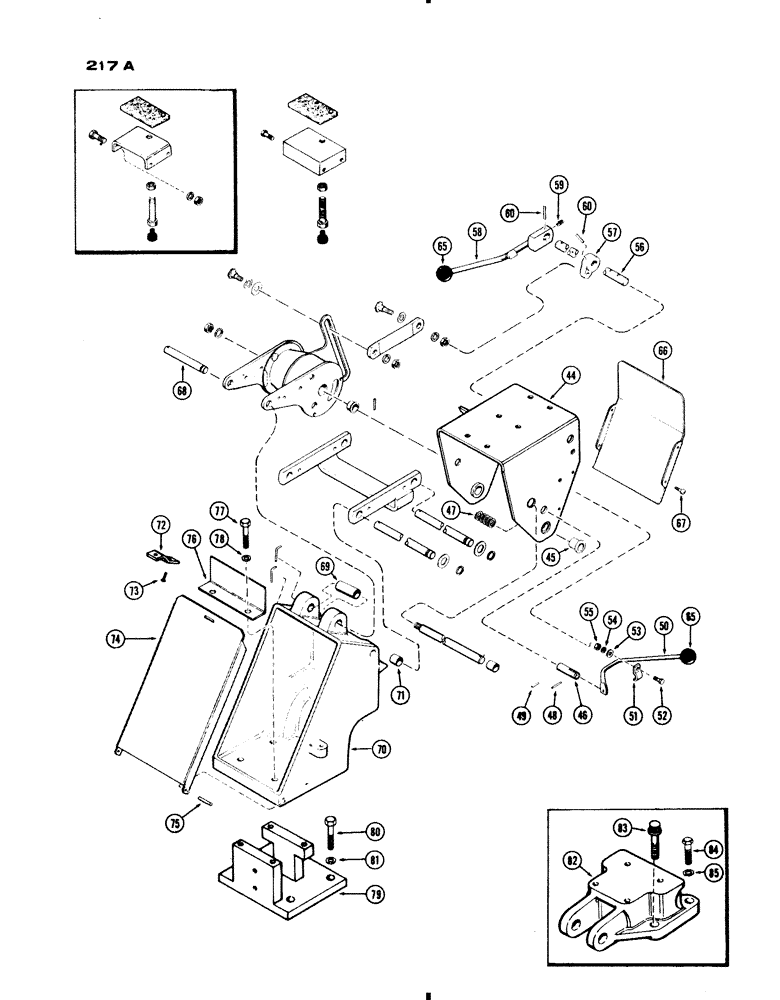

Запчасти Case IH 730 SERIES (217A) - SEAT SUSPENSION, 730 AND 830 DELUXE EXCEPT GROVE, W/ FLANGED BUSHINGS, 1ST USED TRAC. S/N 8339332 (09) - CHASSIS/ATTACHMENTS

A57726

SUSPENSION

SEAT ASSY. - (cont. from Figure 216), Includes: Ref. 44 - 60 and 2 - 39 on Fig. 216

1шт.

44

A57784

SADDLE

ASSY. - seat mounting, Includes: Ref. 45 - 48

1шт.

45

A57713

BUSHING

- flanged (1/2" long)

2шт.

46

A23967

ROD

- lock lever

1шт.

47

A23969

SPRING

- lock lever

1шт.

48

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Rod 1/8" x 7/8", Slotted

1шт.

49

138-69

LOCK PIN,5/32" x 1/2", Slotted

PIN, , rod & lever ret. 5/32" x 1/2", Slotted

1шт.

50

A32546

LEVER - seat lock

1шт.

51

A24014

CLIP - seat lock lever

1шт.

52

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- clip (1/4 x 3/4" N.C. hex.)

1шт.

53

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

1шт.

54

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

55

25-114

NUT,1/4"-28, G5

- (1/4" N.F. hex.)

1шт.

56

A32549

SHAFT - cross, adjusting lever

1шт.

57

A23957

LEVER - seat adjusting

1шт.

58

A32547

LEVER - seat adjusting

1шт.

59

A23646

SPRING

- adjusting lever (Replaces A9478)

1шт.

60

138-2002

PIN,3/16" x 1 1/4", Coiled

Cross shaft 3/16" x 1 1/4", Coiled

4шт.

65

A23885

KNOB

- levers

2шт.

66

A23977

COVER - saddle

1шт.

67

187-1108

SCREW - cover (#8-32 x 3/8" self-tapping)

4шт.

68

A23976

PIN

- pivot, torsion arm

1шт.

69

A24490

SPACER

- arm (11/16 x 3/4 x 2-1/8")

1шт.

70

A57794

SUPPORT

ASSY. - seat, Includes: Ref. 71 - 73

1шт.

71

A57709

BUSHING

- pivot pin (5/8 x 3/4 x 3/4" iron)

2шт.

72

A32542

LATCH - tool box

1шт.

73

47-310

RIVET,FH, 3/16" x 5/8"

- latch (3/16 x 5/8" flat hd.)

2шт.

74

A34067

COVER

- tool box

1шт.

75

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

PIN, , cover hinge 3/16" x 5/8", Slotted

2шт.

76

A33503

BAFFLE - tool box

1шт.

77

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- support (1/2 x 1-3/4" N.C. hex.)

4шт.

78

92-8

LOCK WASHER,1/2"

4шт.

79

A57985

BRACKET - seat support & upper link, Start Serial: 8358425

1шт.

80

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Bracket Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

81

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

82

A33504

BASE - seat support & upper link, Serial Range: -8358425

1шт.

83

166-115

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

BOLT - base (5/8 x 2" N.C., 12 pt. hd.)

2шт.

84

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Base Hex, 5/8"-11 x 2", G5

2шт.

85

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
