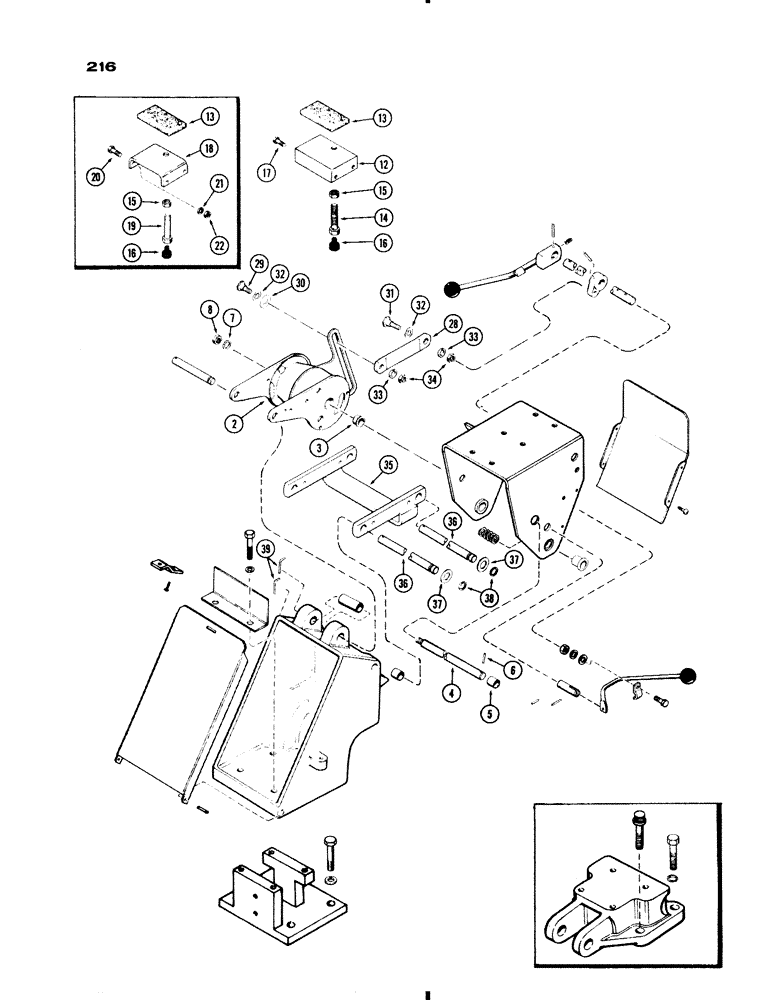

Запчасти Case IH 730 SERIES (216) - SEAT SUSPENSION, 730 AND 830 DELUXE EXCEPT GROVE, W/ FLANGED BUSHINGS, 1ST USED TRAC. S/N 8339332 (09) - CHASSIS/ATTACHMENTS

A57726

SUSPENSION

SEAT ASSY. - (not illust.), Includes: Ref. 2 - 39 and 44 - 60 on Fig. 217A

1шт.

2

A57714

ARM

ASSY. - torsion spring, Includes: Ref. 3

1шт.

3

A57717

BUSHING

- trunnion (5/8" long)

2шт.

4

A23965

BOLT

- torsion spring

1шт.

5

A57721

SPACER

- centering (5/8 x 27/32 x 31/32")

2шт.

6

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, , Bolt stop 3/16" x 7/8", Slotted

1шт.

7

92-8

LOCK WASHER,1/2"

1шт.

8

25-158

JAM NUT,Jam, 1/2"-20, G5

- (1/2" N.F. hex., jam), Includes: Ref. 12 and 13

1шт.

A60041

BRACE ASSY. - cross, seat mounting, Start Serial: 8364617

1шт.

12

NSS

NOT SOLD SEPARAT

BRACE - cross, seat mounting

1шт.

13

A60030

PAD - brace (use adhesive 345-11)

1шт.

14

A60027

BOLT - seat bumper (1/2" N.C. x 1-1/2"), Start Serial: 8364617

1шт.

15

25-108

NUT,1/2"-13, G5

- lock, bumper bolt (1/2" N.C. hex.)

1шт.

16

A24372

BUMPER - seat (rubber)

1шт.

17

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- brace (3/8 x 3/4" N.C. hex.) (used w/A60041 cross brace)

4шт.

18

A57720

BRACE - cross, seat mounting (can use A60030 pad w/this brace), Serial Range: -8364617

1шт.

19

A33741

BOLT

- bumper seat (1/2" N.C. x 2-1/4"), Serial Range: -8364617

1шт.

20

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- brace (3/8 x 1" N.F. hex.) (used w/A57720 cross brace)

4шт.

21

92-6

LOCK WASHER,3/8"

used w/14-616 bolt 3/8"

4шт.

22

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.) (used w/14-616 bolt)

4шт.

28

A23962

LINK - seat adjusting

1шт.

29

A27277

STEP BOLT

BOLT - shoulder, link, rear (3/8" N.F. x 1-1/4")

1шт.

30

A30752

WASHER

- rear link bolt (17/32 x 1-1/16 x 1/32")

1шт.

31

A23964

BOLT - shoulder, link, front (3/8" N.F. x 1-7/16")

1шт.

32

A23963

WASHER - bolt tension (spring type)

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

35

A57722

LINK

- parallel

1шт.

36

A57725

PIN

- parallel link (8-19/32" long)

2шт.

37

A7915

SHIM,.0359" Thk

Washer - Spacer (21/32" x 1-1/8" x 20 ga.) .0359" Thk

1шт.

38

A27811

CIRCLIP,#X74, .616" Dia, E-Type

RING - retaining, , parallel link pins #X74, .616" Dia, E-Type

2шт.

39

A34516

PIN

- lock, (pivot & link pins)

3шт.
