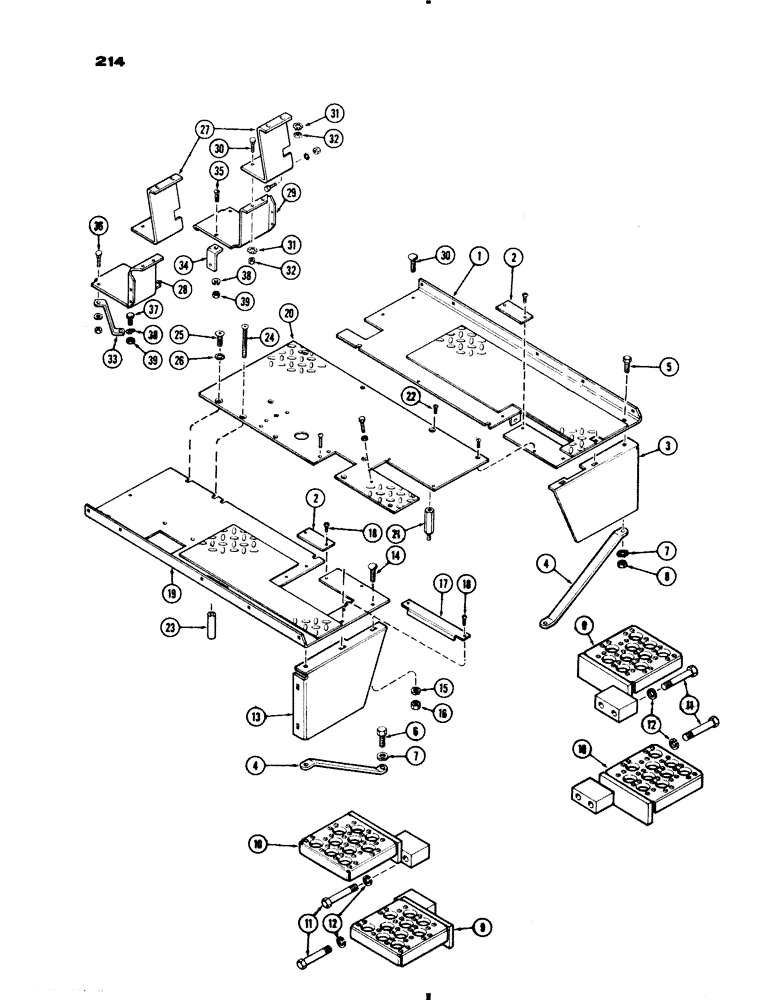

Запчасти Case IH 730 SERIES (214) - PLATFORMS, WESTERN (09) - CHASSIS/ATTACHMENTS

1

A33101

PLATFORM - left hand

1шт.

2

A32902

COVER - platform, front

2шт.

3

A33073

COVER - front step, left hand

1шт.

4

A32375

BRACE - platform, front

2шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Brace, upper Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- brace, lower (1/2 x 1-3/4" N.C. hex.)

2шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

9

A32908

STEP - lower R.H. & upper L.H.

2шт.

10

A32909

STEP - lower L.H. & upper R.H.

2шт.

11

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- front step (5/8 x 3-1/2" N.C. hex.)

4шт.

11

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- front step (5/8 x 4" N.C. hex.)

4шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

13

A33072

COVER - front step, right hand

1шт.

14

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - cover (5/16 x 5/8" N.C. carr.)

4шт.

15

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" lock)

4шт.

16

25-106

NUT,3/8"-16, G5

- (5/16" N.C. hex.)

4шт.

17

A32901

GUIDE - brake pedal (R.H. side)

1шт.

18

187-1145

SCREW - cover & guide (1/4 x 3/8" PH pan hd.)

6шт.

19

A33100

PLATFORM - right hand

1шт.

20

A32906

PLATFORM - center

1шт.

21

A32368

STUD - plat. to trans. cover, left hand

1шт.

21

A32900

STUD - plate to trans. cover, right hand

1шт.

22

164-51

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1"

SCREW - plt. to stud (3/8 x 1" N.C. flat sckt. hd.)

2шт.

23

A27328

SPACER

- platform, rear

2шт.

24

164-76

HEX SOC SCREW,Flat Hd, 1/2" - 13 x 2 1/4"

BOLT - (1/2 x 2-1/4" N.C. flat sckt. hd.)

2шт.

25

187-1246

SCREW - (1/4 x 1/2" N.C. flat ph. hd.)

4шт.

26

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

4шт.

27

A33085

STEP - platform, rear, upper

2шт.

28

A33488

PLATFORM - lower, right hand

1шт.

29

A33489

PLATFORM - lower, left hand

1шт.

30

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Rear step Short NK, 5/16"-18 x 3/4", G2

12шт.

30

11-514

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - rear step (5/16 x 7/8" N.C. carr.)

2шт.

31

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" int./ext. skpf.)

14шт.

32

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

14шт.

33

A33104

BRACE - lower plat. plate

2шт.

34

A33490

BRACE - lower platforms

2шт.

35

11-816

BOLT,Short NK, 1/2"-13 x 1", G2

- brace (1/2 x 1" N.C. carr.)

2шт.

36

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- brace (1/2 x 1-1/2" N.C. carr.)

2шт.

37

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- brace (1/2 x 1-3/4" N.C. hex.)

2шт.

38

92-8

LOCK WASHER,1/2"

6шт.

39

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

6шт.
