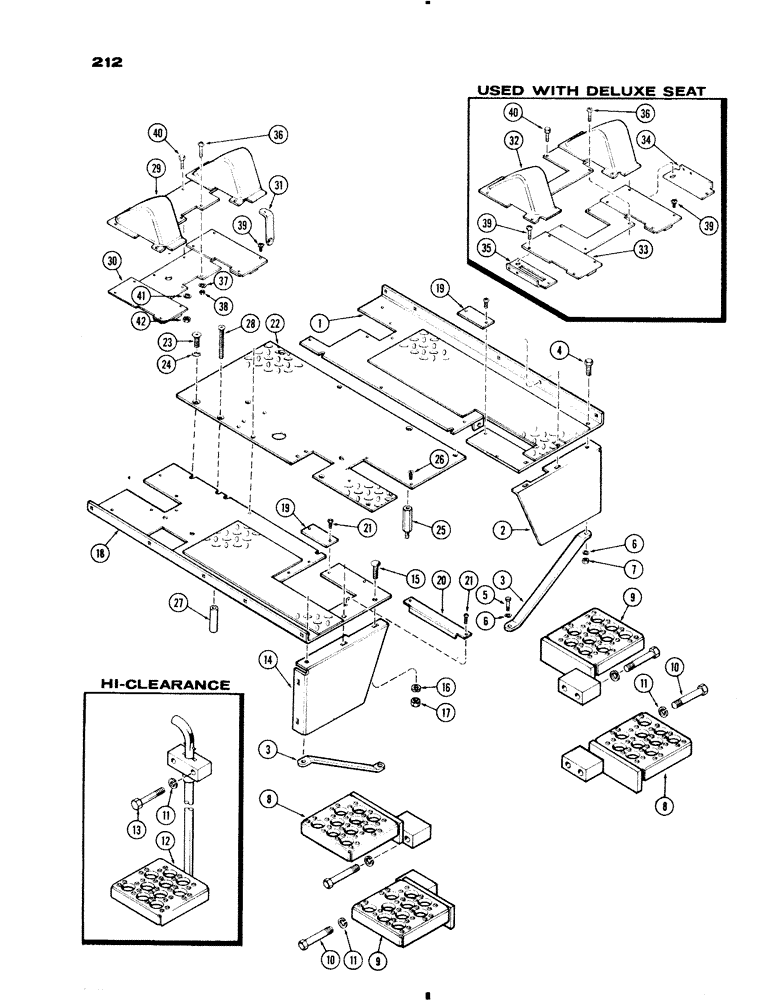

Запчасти Case IH 730 SERIES (212) - PLATFORMS, GENERAL PURPOSE, 4 WHEEL, HIGH CLEARANCE (09) - CHASSIS/ATTACHMENTS

1

A32895

PLATFORM - left hand

1шт.

2

A33073

COVER - step, left hand

1шт.

3

A32375

BRACE - platform, front

2шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Brace, upper Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

5

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- brace, lower (1/2 x 1-3/4" N.C. hex.)

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

8

A32909

STEP - lower L.H. & upper R.H.

2шт.

9

A32908

STEP - lower R.H. & upper L.H.

2шт.

10

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- step (5/8 x 3-1/2" N.C. hex.)

4шт.

10

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- step (5/8 x 4" N.C. hex.)

4шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

12

A33603

BOLT

STEP - auxiliary (Hi-Clr. only)

1шт.

13

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

Aux. step Hex, 5/8"-11 x 3 1/4", G5

2шт.

14

A33072

COVER - step, right hand

1шт.

15

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - cover (5/16 x 5/8" N.C. carr.)

4шт.

16

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" lock)

4шт.

17

25-106

NUT,3/8"-16, G5

- (5/16" N.C. hex.)

4шт.

18

A32894

PLATFORM - right hand

1шт.

19

A32902

COVER - platform, front

2шт.

20

A32901

GUIDE - brake pedal (R.H. side)

1шт.

21

187-1145

SCREW - cover & guide (1/4 x 3/8" Ph. Pan Hd.)

6шт.

22

A32906

PLATFORM - center

1шт.

23

187-1246

SCREW - ctr. plat. (1/4 x 1/2" N.C. flat, Ph. Hd.)

4шт.

24

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

4шт.

25

A32368

STUD - plat. to trans. cover, left hand

1шт.

25

A32900

STUD - plat. to trans. cover, right hand

1шт.

26

164-51

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1"

SCREW - plat. to stud (3/8 x 1" N.C. flat sckt. hd.)

2шт.

27

A27328

SPACER

- platform, rear

2шт.

28

164-76

HEX SOC SCREW,Flat Hd, 1/2" - 13 x 2 1/4"

BOLT - plat. spacer (1/2 x 2-1/4" N.C. flat sckt. hd.)

2шт.

29

A33901

COVER - rear (used w/std. w/out hitch)

1шт.

30

A33895

GUARD - lift arm (used w/std. seat w/hitch)

1шт.

31

A33903

SUPPORT - guard (used w/std. seat)

1шт.

32

A33894

GUARD - lift arm (used w/de-luxe seat w/hitch)

1шт.

33

A33900

COVER - rear (used w/de-luxe seat w/out hitch)

1шт.

34

A33893

COVER - platform, L.H. (used w/de-luxe seat)

1шт.

35

A33892

COVER - platform, R.H. (used w/de-luxe seat)

1шт.

36

173-258

SCREW - (#10 x 5/8" N.C. Phill. rd. hd.)

6шт.

37

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

38

129-7

NUT,Hex, #10 - 24

- (#10 N.C. hex.)

6шт.

39

187-1145

SCREW - (1/4 x 3/8" N.C. Phill. Pan hd.)

2шт.

40

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

42

25-104

NUT,1/4"-20, G5

2шт.
