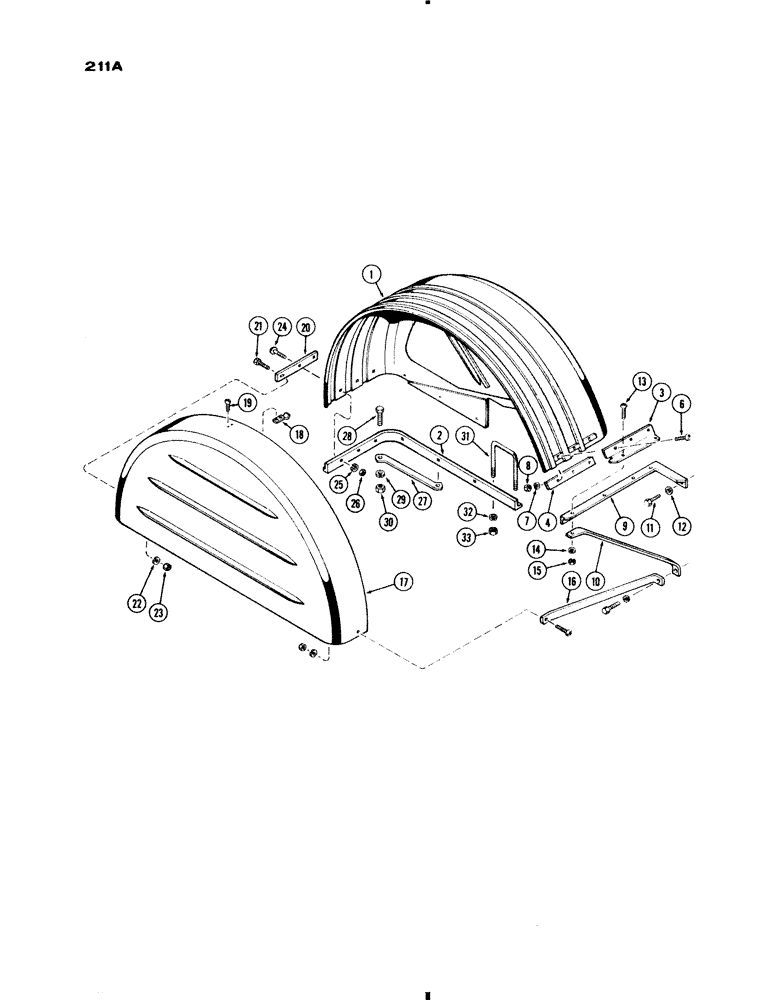

Запчасти Case IH 730 SERIES (211A) - FENDERS, 730 GROVE (09) - CHASSIS/ATTACHMENTS

1

A8541

FENDER ASSY. - left hand

1шт.

1

A8540

FENDER ASSY. - right hand

1шт.

2

A8548

SUPPORT - rear, right hand

1шт.

2

A8549

SUPPORT - rear, left hand

1шт.

3

A8542

SUPPORT - front, right hand

1шт.

3

A8543

SUPPORT - front, left hand

1шт.

4

A8544

STRAP - front support

2шт.

A27483

CLIP - light wire (L.H. fender only) (not illust.)

4шт.

6

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Supports Short NK, 3/8"-16 x 1", G2

9шт.

7

92-6

LOCK WASHER,3/8"

9шт.

8

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

9шт.

9

A8550

ANGLE - support, right hand front

1шт.

9

A8551

ANGLE - support, left hand front

1шт.

10

A10266

BRACE - support, right hand front

1шт.

10

A10267

BRACE - support, left hand front

1шт.

11

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(to trans. case) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

6шт.

12

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

13

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- (1/2 x 1-1/2" N.C. carr.)

2шт.

13

11-828

BOLT (MACHINE)

BOLT - (1/2 x 1-3/4" N.C. carr.)

2шт.

14

92-8

LOCK WASHER,1/2"

4шт.

15

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

4шт.

16

A8568

BRACE - cover, right hand front

1шт.

16

A8569

BRACE - cover, left hand front

1шт.

17

A8566

SHEET - fender side cover

2шт.

18

A27630

CLAMP - side cover

6шт.

19

175-410

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- clamp (5/16 x 3/4" N.C. Ph. Tr. hd.)

12шт.

20

A8567

BRACE - tie, rear

2шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Brace Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

24

66-620

SCREW - brace (3/8 x 1-1/4" N.C. flat hd.)

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

27

A33759

BRACE - support, rear

2шт.

28

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- brace (1/2 x 1-3/4" N.C. hex.)

2шт.

29

92-8

LOCK WASHER,1/2"

2шт.

30

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

31

A7069

ARM

"U" BOLT - support to axle sleeve

2шт.

32

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

33

25-1110

NUT,5/8"-18, G5

- (5/16" N.F. hex.)

4шт.
