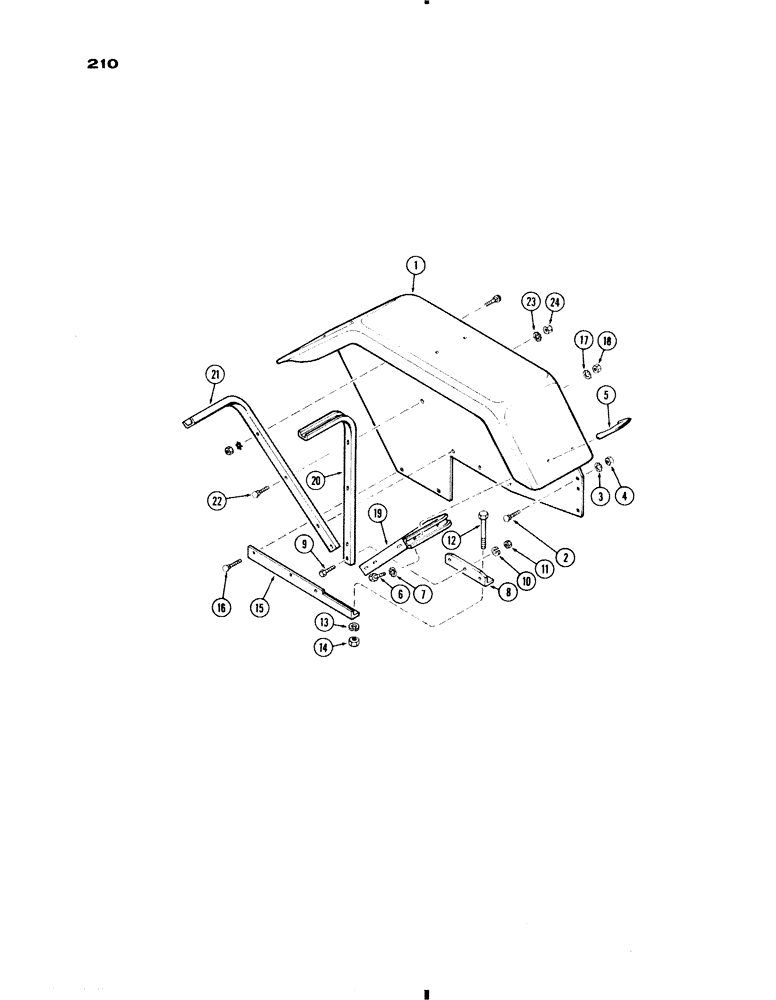

Запчасти Case IH 730 SERIES (210) - FENDERS, WESTERN (09) - CHASSIS/ATTACHMENTS

1

A34024

FENDER - right hand, Includes: Ref. 2 - 8

1шт.

1

A34025

FENDER - left hand, Includes: Ref. 2 - 8

1шт.

205-15

HOLE PLUG BUTTON,3/8"

PLUG - fender ( button type) (not illust.) 3/8"

1шт.

2

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - fender (5/16 x 5/8" N.C. carr.)

10шт.

3

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" int./ext. skpf.)

10шт.

4

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

10шт.

5

A23725

HANDLE

- tractor mtg.

2шт.

6

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- handle (5/16 x 1-1/2" N.F. hex)

4шт.

7

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" int./ext. skpf.)

4шт.

8

A21228

SUPPORT - fender

2шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Support to fender Hex, 3/8"-16 x 1 3/4", G5

6шт.

10

92-6

LOCK WASHER,3/8"

6шт.

11

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

6шт.

12

15-10128

BOLT (MACHINE)

BOLT - axle sleeve (5/8 x 8" N.C. hex.)

4шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

25-110

POSTER

NUT - (5/8" N.C. hex.)

4шт.

15

A33094

SUPPORT - right hand, lower

1шт.

15

A33095

SEAL

SUPPORT - left hand, lower

1шт.

16

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Support to plat. Short NK, 3/8"-16 x 1", G2

4шт.

17

92-6

LOCK WASHER,3/8"

int./ext. skpf. 3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

19

A33086

BRACE - right hand, front

1шт.

19

A33087

BRACE - left hand, front

1шт.

20

A33090

BRACE - center

2шт.

21

A33092

BRACE - lower

2шт.

22

11-520

X

BOLT - braces to fender (5/16 x 1-1/4" N.C. carr.)

21шт.

22

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

BOLT, CARRIAGE, , Braces to fender Short NK, 5/16"-18 x 1 1/2"

4шт.

23

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" int./ext. skpf.)

25шт.

24

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

25шт.
