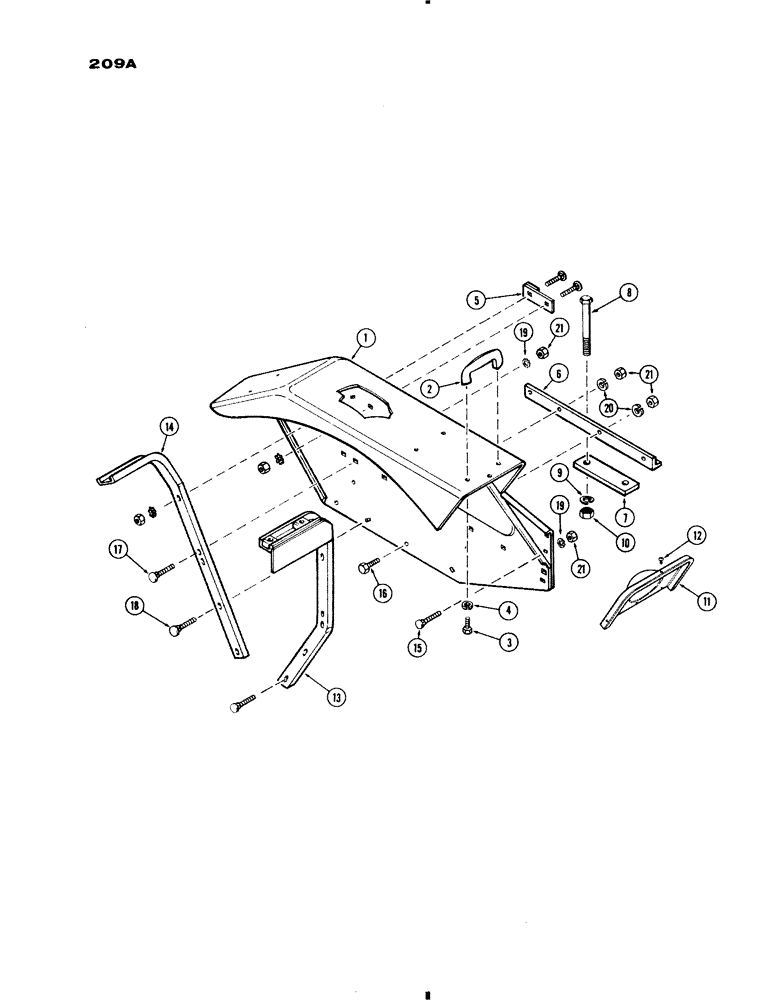

Запчасти Case IH 730 SERIES (209A) - FENDERS, HIGH CLEARANCE (09) - CHASSIS/ATTACHMENTS

1

A33580

FENDER - right hand

1шт.

1

A33581

FENDER - left hand

1шт.

2

A23725

HANDLE

- tractor mtg.

2шт.

3

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Handle Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

A33594

PLATE - fender reinforcement

2шт.

6

A33592

SUPPORT - brace, right hand

1шт.

6

A33595

SUPPORT - brace, left hand

1шт.

7

A33921

BAR - fender support

2шт.

8

16-10136

BOLT

- (5/8 x 8-1/2" N.F. hex.)

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

4шт.

11

A32919

PANEL

- light mtg.

2шт.

12

187-328

SCREW - panel (#10 x 3/8" ph. pan hd. self-tapping)

6шт.

13

A33586

BRACE - R.H. front

1шт.

13

A33587

BRACE - L.H. front

1шт.

14

A33578

BRACE - R.H. rear

1шт.

14

A33579

SHIM

BRACE - L.H. rear

1шт.

15

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Fender to plat. Short NK, 5/16"-18 x 3/4", G2

12шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Support to fender Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

17

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

BOLT, CARRIAGE, , Brace Short NK, 5/16"-18 x 1 1/2"

6шт.

18

11-528

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

CARRIAGE, 5/16"-18 x 1 3/4", G2, Fender to plat.

4шт.

19

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" int./ext. skpf.)

1шт.

20

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" lock)

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.
