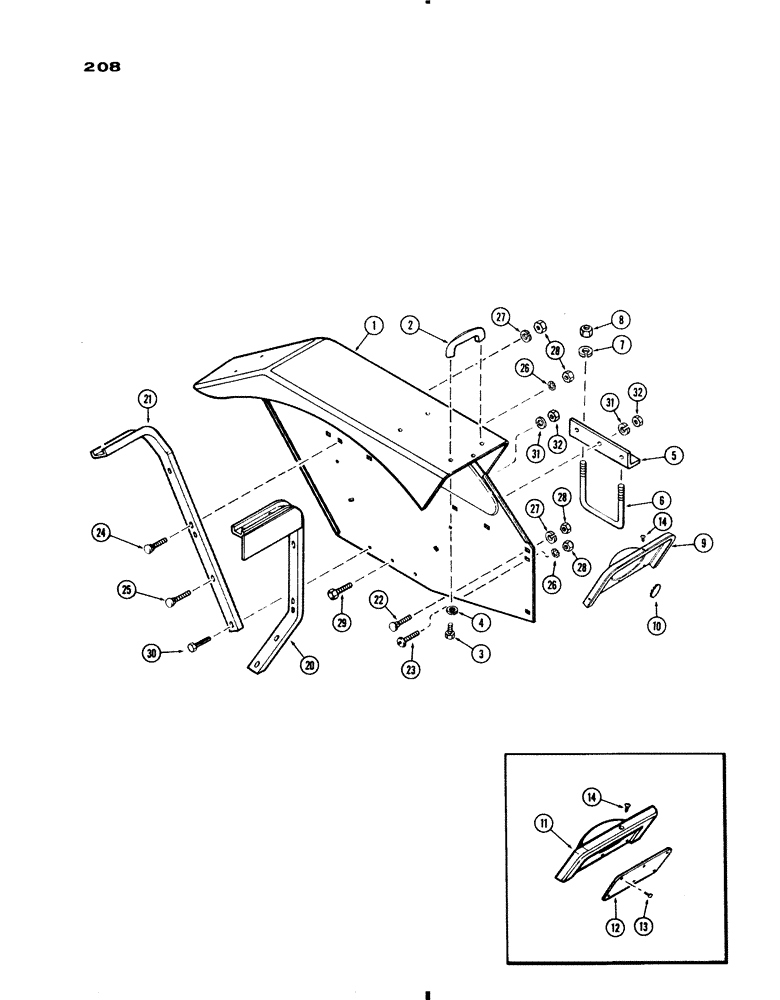

Запчасти Case IH 730 SERIES (208) - FENDERS, GEN. PURP. AND 4 WHEEL (09) - CHASSIS/ATTACHMENTS

1

A32920

FENDER - right hand

1шт.

1

A32921

FENDER - left hand

1шт.

2

A23725

HANDLE

- tractor mtg.

2шт.

3

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Handle Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

A57227

SUPPORT - fender (7-1/4" between hole ctr.), Start Serial: 8312080

2шт.

5

864-10045

HEX SOC SCREW,M10 x 45mm, Cl 8.8

SUPPORT - fender (7" between hole ctrs.), Serial Range: -8312080

2шт.

6

A57048

U-BOLT

"U" BOLT - support (7-1/4" between hole ctrs.), Start Serial: 8312080

2шт.

6

A7069

ARM

"U" BOLT - support (7" between hole ctrs.), Serial Range: -8312080

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

4шт.

9

A57727

PANEL

- lamp mounting, Start Serial: 8344384

2шт.

10

205-67

HOLE PLUG BUTTON,2"

PLUG - ( button type) (Used w/A57727 Panel) 2"

2шт.

11

A32919

PANEL

- light mounting, Serial Range: -8344384

2шт.

12

A33040

COVER - cultivator lamp hole (Used w/A32919 Panel)

2шт.

13

187-1108

SCREW - cover (#8 x 3/8" sheet metal)

10шт.

14

187-328

SCREW - panel (#10 x 3/8" ph. pan hd., self tapping)

6шт.

20

A32926

BRACE - right hand front

1шт.

20

A32927

BRACE - left hand front

1шт.

21

A32932

BRACE - right hand rear

1шт.

21

A32933

BRACE - left hand rear

1шт.

22

77-58

SCREW - fender to step (5/16 x 1/2" N.C. truss hd.)

2шт.

23

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Fender to plat. Short NK, 5/16"-18 x 3/4", G2

10шт.

24

11-528

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

CARRIAGE, 5/16"-18 x 1 3/4", G2, Fender to plat.

4шт.

25

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

BOLT, CARRIAGE, , Brace Short NK, 5/16"-18 x 1 1/2"

8шт.

26

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" int./ext. skpf.)

10шт.

27

92-5

LOCK WASHER,5/16"

14шт.

28

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

24шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

30

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Support Hex, 3/8"-16 x 2", G5

4шт.

31

92-6

LOCK WASHER,3/8"

6шт.

32

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

6шт.
