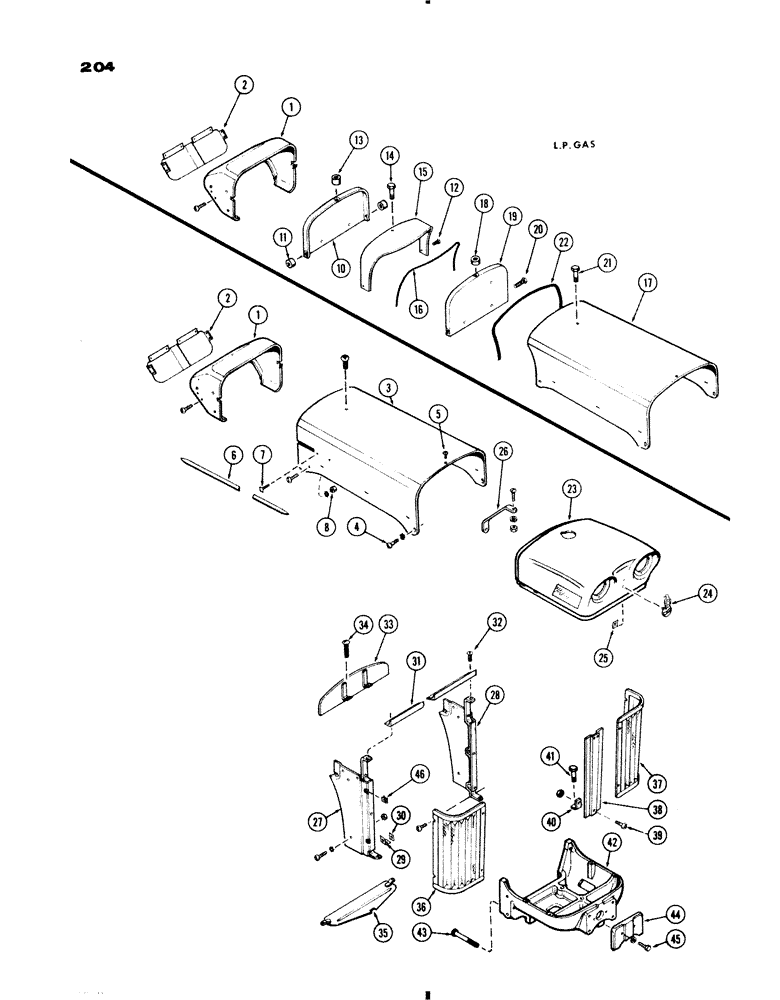

Запчасти Case IH 730 SERIES (204) - SHEET METAL, 730 GROVE (09) - CHASSIS/ATTACHMENTS

1

A33817

PANEL - instrument

1шт.

2

A23207

COVER - inst. panel

1шт.

3

A33864

HOOD - (Gas & Diesel)

1шт.

4

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- hood sides (1/4 x 1/2" N.C. ph. tr. hd.)

4шт.

5

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- hood to cap (5/16 x 5/8" N.C. Ph. Tr. hd.)

1шт.

6

A11785

MOULDING - hood trim (Gas & Diesel)

2шт.

7

A11459

BOLT

- trim ret.

4шт.

8

193-1000

NUT,Keps, w/LW,#10-32

- (#10 N.F. spec.)

4шт.

10

A33819

SUPPORT - inst. panel (LP)

1шт.

11

A33821

SPACER - inst. panel, lower (LP) (3/8 x 1-1/4 x 3/4")

2шт.

12

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- supt. (5/16 x 1-1/4" N.C. hex.)

2шт.

13

A33820

SPACER - support, upper (LP) (3/8 x 1-1/4 x 2-1/4")

1шт.

14

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Supt. Hex, 5/16"-18 x 2 3/4", G5

1шт.

15

A33822

SHROUD - inst. panel (LP)

1шт.

16

A33823

MOULDING - shroud (28" long)

1шт.

17

A33867

HOOD (LP)

1шт.

18

A33866

SPACER - hood, (LP) (3/8 x 1-1/4 x 1-1/4")

1шт.

19

A33865

SUPPORT - hood, rear (LP)

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Support Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

21

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- support (5/16 x 1-3/4" N.C. hex.)

1шт.

22

A33868

X

MOULDING - hood (LP)

1шт.

23

A33967

CAP

- hood

1шт.

24

A24526

MEDALLION - cap ornament

1шт.

25

131-138

PUSH-ON NUT

- medallion ret.

2шт.

26

A21421

BRACE - cap

1шт.

27

A20960

PANEL - radiator, R.H.

1шт.

28

A20961

PANEL - radiator, L.H.

1шт.

29

A11905

CLIP - panel, rear

2шт.

30

A11737

SPACER - clip (21/32 x 1-1/8 x 20 Ga.)

1шт.

31

A11049

BRACE - panels

1шт.

32

76-48

BOLT (MACHINE)

SCREW - brace (1/4 x 1/2" N.F. rd. hd.)

2шт.

33

A20954

BAFFLE - rad., upper

1шт.

34

75-412

SCREW,Rd, 1/4" x 3/4"

- baffle (1/4 x 3/4" N.C. rd. hd.)

2шт.

35

A8520

BAFFLE - rad. lower

1шт.

36

A11264

GRILLE - rad., R.H.

1шт.

37

A11265

GRILLE - rad., L.H.

1шт.

38

A20378

BRACE

PANEL - grille, center

1шт.

39

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- ctr. panel (1/4 x 3/4" N.C. ph. tr. hd.)

3шт.

40

A11267

BRACE - center panel

1шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Brace Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

42

A21791

SUPPORT - rad. & front axle

1шт.

43

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Support Hex, 3/4"-10 x 2", G5

4шт.

44

A20279

COVER - support

1шт.

45

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

46

131-132

SPRING NUT,Tinn, U, 1/4"-20

- speed (1/4" Tinnerman)

1шт.

46

131-122

NUT

- speed (5/16" Tinnerman)

1шт.
