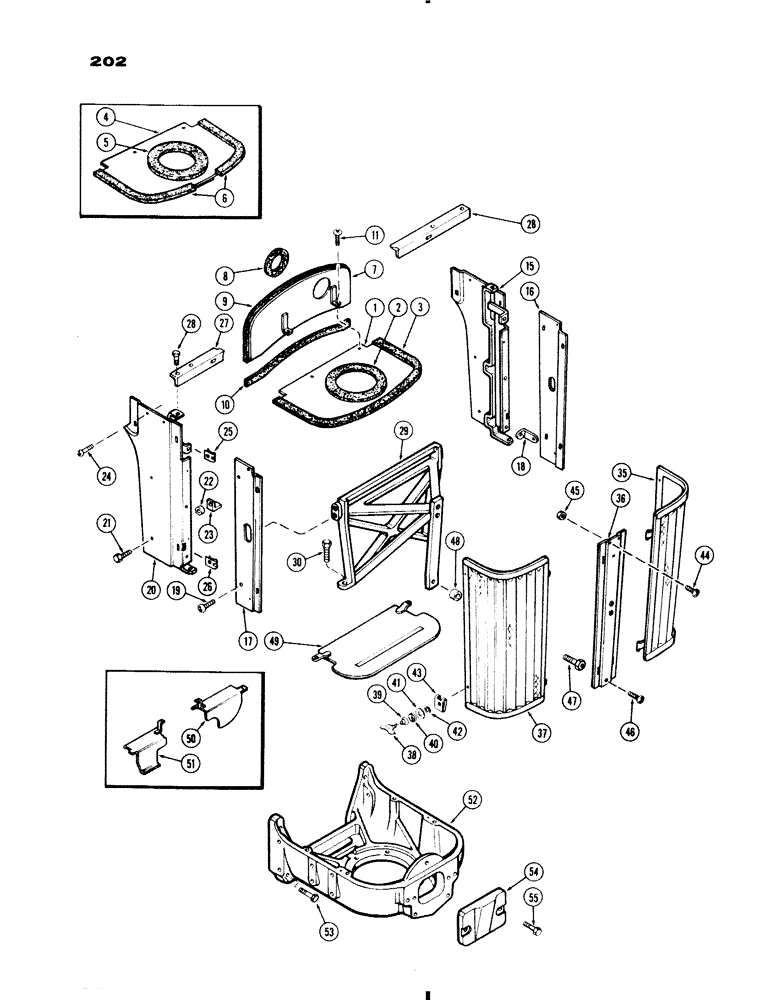

Запчасти Case IH 730 SERIES (202) - SIDE PANELS, GRILLE AND BAFFLES, ALL 730 AND 830 EXCEPT GROVE (09) - CHASSIS/ATTACHMENTS

1

A32861

BAFFLE ASSY. - air cleaner (Gas), Includes: Ref. 2 and 3

1шт.

2

A32864

GROMMET - baffle (6-3/4" I.D. x 9-3/4" O.D.)

1шт.

3

A32865

SEAL

- baffle (40" long)

1шт.

4

A32855

BAFFLE ASSY. - air cleaner (Diesel), Includes: Ref. 5 and 6

1шт.

5

A32859

GROMMET

- baffle (6-3/4" I.D. x 11-1/4" O.D.)

1шт.

6

A32860

SEAL - baffle (20" long)

2шт.

7

A24151

BAFFLE ASSY. - rad., upper (Gas), Includes: Ref. 8 - 10

1шт.

7

A23792

BAFFLE

ASSY. - rad., upper (Diesel), Includes: Ref. 8 - 10

1шт.

8

A23795

GROMMET

- baffle (2-1/4 x 5-1/2 x 1/2")

1шт.

9

A23796

SEAL

- rad. baffle, upper (1/2 x 1 x 34-3/8")

1шт.

10

A23797

SEAL ASSY.

SEAL - rad. baffle, lower (1/2" x 1-1/2 x 20")

1шт.

11

75-412

SCREW,Rd, 1/4" x 3/4"

- baffle (1/4 x 3/4" N.C. rd. hd.)

2шт.

15

A33877

MEMBER

PANEL - radiator, left hand side

1шт.

16

A32527

EXTENSION

- side panel, L.H. (Gen. Purp.) (Order A60079)

1шт.

17

A32526

EXTENSION

- side panel, R.H. (Gen. Purp.) (Order A60078)

1шт.

18

A11292

BRACE - extension

2шт.

19

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- ext. (1/4 x 1/2" N.C. Ph. Tr. hd.)

8шт.

20

A33876

PANEL - rad., right hand side

1шт.

21

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- clip (3/8 x 1/2" N.F. hex.)

2шт.

22

A11737

SPACER - clip

1шт.

23

A11905

CLIP - panel, lower

2шт.

24

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- panel to cap (1/4 x 1/2" N.C. Ph. Tr. hd.)

4шт.

25

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - side panel ret. (1/4" N.C., speed)

4шт.

26

131-122

NUT

- side panel ret. (5/16" N.F. speed)

2шт.

27

A23786

BRACE - side panel

1шт.

28

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Brace Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

29

A23139

"A" FRAME - cult. support (Gen. Purpose)

1шт.

30

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

"A" frame Hex, 5/8"-11 x 1 3/4", G5, Full Thd

2шт.

35

A32529

GRILLE - left hand (Gen. Purp.)

1шт.

35

A32837

GRILLE - left hand (4 whl., west & Hi-Clr.)

1шт.

36

A24254

BRACE - grille center (Gen. Purp.)

1шт.

36

A23785

BRACE - grille ctr. (4 whl., west & Hi-Clr.)

1шт.

37

A32528

GRILLE - right hand (Gen. Purp.)

1шт.

37

A32836

GRILLE - right hand (4 whl. west & hi-clr.)

1шт.

38

A32881

STUD

- grille lock

4шт.

39

A32882

VALVE SPRING

SPRING - lock stud

4шт.

40

A32883

WASHER

- lock spring

4шт.

41

A34012

WASHER

- grille stud

4шт.

42

A36041

RETAINER

RING - snap, washer retaining

4шт.

43

A36042

CLIP

RECEPTACLE - clip-on

4шт.

44

175-447

SCREW,Phil Truss Hd, 1/4" - 20 x 1"

- ctr. brace (1/4 x 1" N.C. Ph. tr. hd.)

2шт.

45

193-1006

NUT,Keps, w/LW, 1/4"-20

- (1/4" N.C. Keps)

2шт.

46

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- ctr., brace (1/4 x 1/2" N.C., Ph. Tr. Hd.)

1шт.

47

A8399

BOLT,Hex, Tap, 5/8" - 11 x 1 3/4", Gr 5

- ctr. brace (5/8 x 1-3/4" N.C. Spec.)

1шт.

48

B18239

SPACER,3/4" Pipe x 3/4"

- center brace (4 whl. west. & Hi-cir.) () 3/4" Pipe x 3/4"

1шт.

49

A22690

BAFFLE - rad., lower (4 whl. & west)

1шт.

50

A23340

BAFFLE - rad., lower R.H. (Gen. Purp. & Hi-Clr.)

1шт.

51

A23341

BAFFLE - rad. lower L.H. (Gen. Purp. & Hi-Clr.)

1шт.

52

A34790

SUPPORT - front axle & radiator (G.P., West & 4 wheel) (Replaces A57525), Start Serial: 8310332

1шт.

52

A33919

SUPPORT - front axle & radiator (G.P., West & 4 wheel), Serial Range: -8310332

1шт.

52

A32578

SUPPORT - front axle & radiator (Hi-Clr.)

1шт.

53

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Support Hex, 3/4"-10 x 2 1/4", G5

4шт.

54

A22769

COVER - support

1шт.

55

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

Cover Hex, 5/8"-11 x 3/4", G5, Full Thd

2шт.
