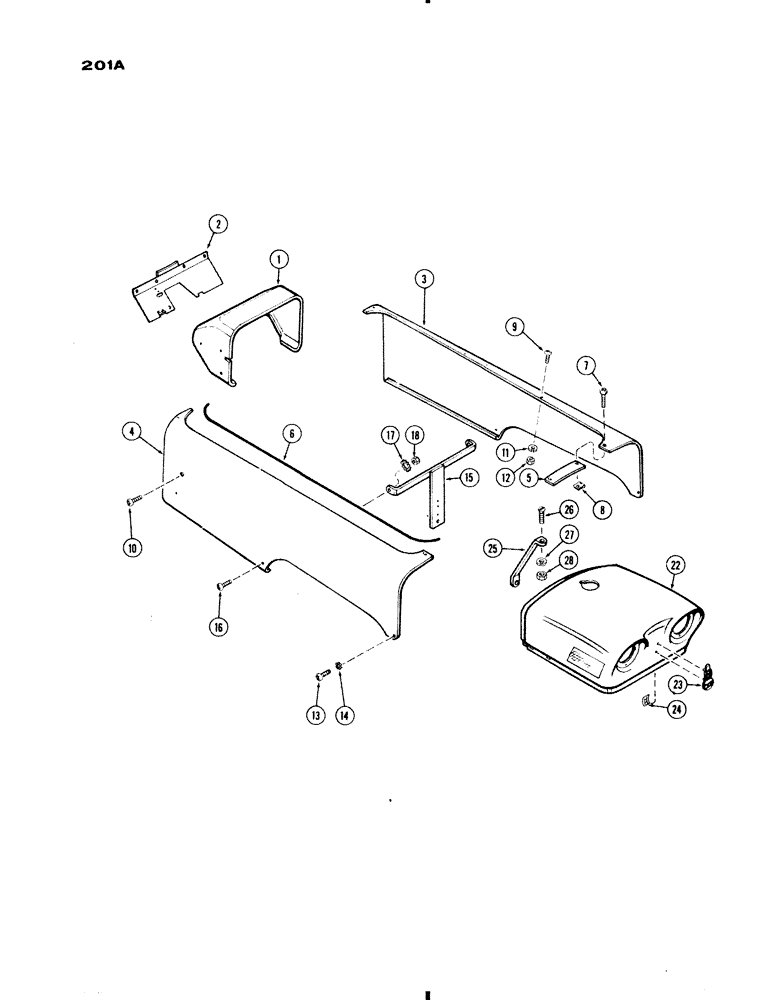

Запчасти Case IH 730 SERIES (201A) - HOOD AND CAP, ALL 730 AND 830 EXCEPT GROVE, L.P. GAS (09) - CHASSIS/ATTACHMENTS

1

A33268

PANEL - instrument (730)

1шт.

1

A33027

PANEL - instrument (830)

1шт.

2

A57412

COVER - inst. panel (replaces A33029)

1шт.

3

A32139

HOOD - half, left hand

1шт.

4

A32138

HOOD - half, right hand

1шт.

5

A32140

EXTENSION - hood

1шт.

6

A32141

MOULDING - hood

2шт.

7

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- ext. (1/4 x 1/2" N.C. ph. tr. hd.)

2шт.

8

131-130

NUT

- (#8 speed)

2шт.

9

175-423

SCREW,Sl Truss Hd, 1/4" - 20 x 1 1/4"

- hood (1/4 x 5/8" N.C. phd. tr. hd.)

4шт.

10

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- hood to tank (1/4 x 1/2" ph. tr. hd.)

4шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

25-104

NUT,1/4"-20, G5

4шт.

13

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- hood side (5/16 x 5/8" N.F. ph. tr. hd.)

2шт.

14

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" int./ext. skpf.)

2шт.

15

A33038

SUPPORT - R.H. & L.H. hoods

1шт.

16

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- hood (1/4 x 1/2" N.C., ph. tr. hd.)

2шт.

17

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

18

25-104

NUT,1/4"-20, G5

2шт.

22

A33971

CAP ASSY. - rad. grille & screen (replaces A32866)

1шт.

23

A24526

MEDALLION - cap (Case trade mark)

1шт.

24

131-138

PUSH-ON NUT

- medallion ret. (1/4" Tinnerman)

2шт.

25

A23791

BRACE - cap

1шт.

26

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- brace (1/4 x 5/8" N.C. flat hd.)

1шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

25-104

NUT,1/4"-20, G5

1шт.
