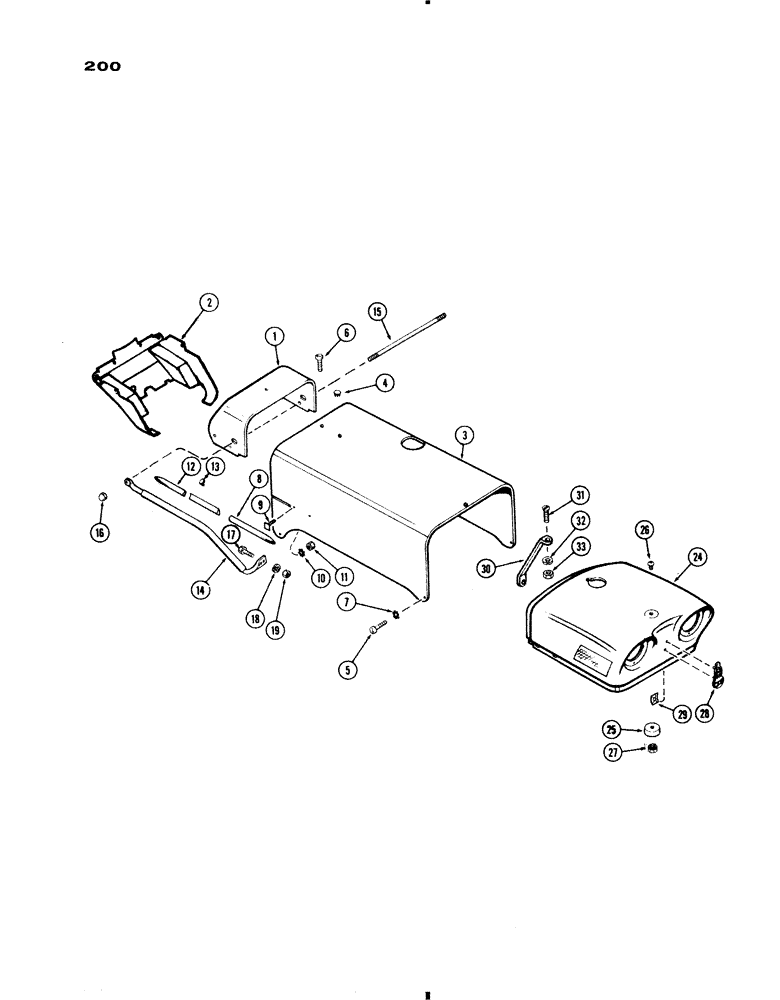

Запчасти Case IH 730 SERIES (200) - HOOD AND CAP, ALL 730 AND 830 EXCEPT GROVE, GAS AND DIESEL (09) - CHASSIS/ATTACHMENTS

1

A33267

PANEL - instrument (730)

1шт.

1

A32885

PANEL - instrument (830)

1шт.

2

A57408

COVER - inst. panel (replaces A33020)

1шт.

3

A24200

HOOD ASSY., Includes: Ref. 4

1шт.

4

205-10

PLUG

- (1/2" button type)

1шт.

5

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- hood (5/16 x 5/8" N.F. ph. tr. hd.)

4шт.

6

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- hood (1/4 x 1/2" N.C. ph. tr. hd.)

1шт.

7

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

4шт.

8

A11785

MOULDING - trim (on hood)

2шт.

9

A11459

BOLT

- trim ret. (#10 N.F. spec.)

4шт.

10

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

11

129-37

NUT,#10-32

4шт.

12

A11455

MOLDING

MOULDING - trim (on fuel tank)

2шт.

13

A11456

LOCK PIN

CLIP - trim ret.

4шт.

14

A33263

HANDLE - mounting, left hand

1шт.

14

A33262

HANDLE - mounting, right hand

1шт.

15

A32089

STUD - mtg. handle (3/8" N.C. x 17-5/8")

2шт.

16

129-527

NUT,Crown, 3/8"-16

- handle, outer (3/8" N.C., acorn)

2шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Handle

4шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

19

9635082

NUT,5/16" - 18, Gr 5

4шт.

24

A33971

CAP ASSY. - rad. grille & screen, Includes: Ref. 25 - 27

1шт.

25

A23789

DEFLECTOR - oil

1шт.

26

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- deflector (1/4 x 1/2" N.C., ph. hd.)

1шт.

27

193-1006

NUT,Keps, w/LW, 1/4"-20

- (1/4" N.C. Keps)

1шт.

28

A24526

MEDALLION - cap (case trade mark)

1шт.

29

131-138

PUSH-ON NUT

- medallion ret. (1/4" Tinnerman)

2шт.

30

A23791

BRACE - cap

1шт.

31

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- brace (1/4 x 5/8" N.C. flat hd.)

1шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

25-104

NUT,1/4"-20, G5

1шт.
