Запчасти Case IH 730 SERIES (235A) - BREAKAWAY COUPLING (08) - HYDRAULICS

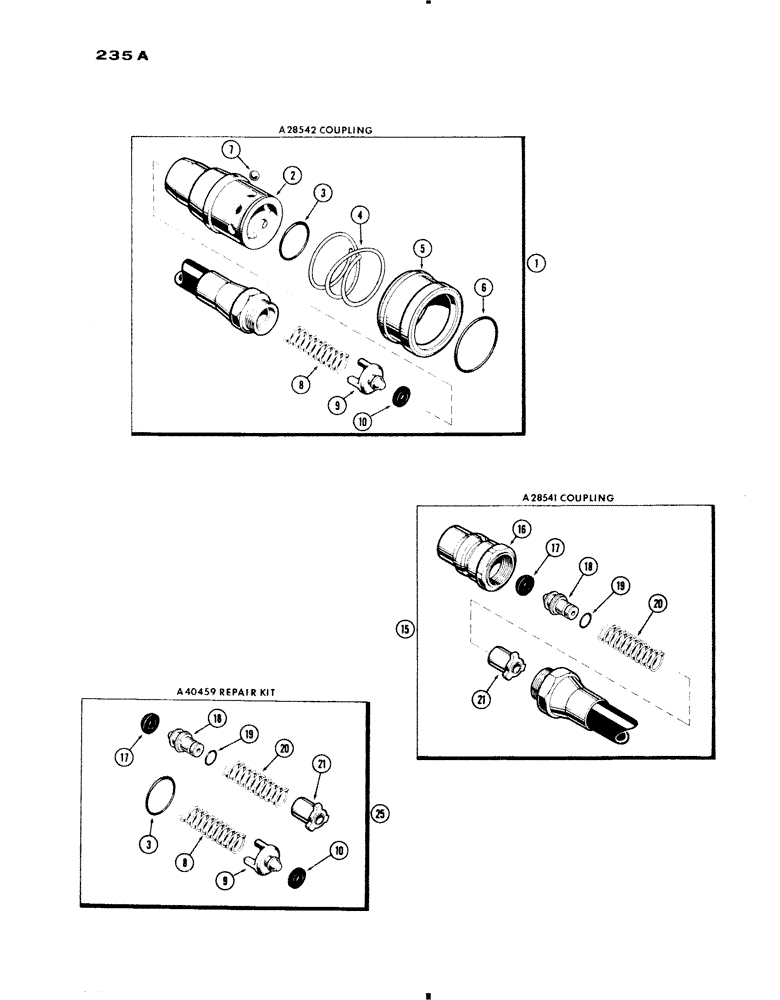

Схема запчастей Case IH 730 SERIES - (235A) - BREAKAWAY COUPLING (08) - HYDRAULICS
6
16
7
9
8
9
4
21
1
10
25
20
21
8
5
17
20
15
18
3
2
10
17
3
19
18
19

Артикул

Название

Примечание

Количество

1

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - breakaway, female half, Includes: Ref. 2 - 10

4шт.

2

A27349

BODY

- female section

1шт.

Ref #3 s/b A34848

1шт.

3

A24848

BEARING

"O" RING - body (7/8 x 1-1/8 x 1/8")

1шт.

Part of COUPLING REPAIR KIT, P/N A40459

1шт.

4

A27354

SPRING

- sleeve tension

1шт.

5

A27353

SLEEVE

SLEEVE - male coupling lock & release

1шт.

6

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve ret.

1шт.

7

211-7

BALL,1/4" Dia

- male coupling swivel 1/4" Dia

8шт.

8

A11324

SPRING

- piston pressure

1шт.

Part of COUPLING REPAIR KIT, P/N A40459

1шт.

9

A26215

PISTON

- coupling socket

1шт.

Part of COUPLING REPAIR KIT, P/N A40459

1шт.

10

A33964

SEAL

- piston

1шт.

Part of COUPLING REPAIR KIT, P/N A40459

1шт.

15

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - breakaway, male half, Includes: Ref. 16 - 21

4шт.

16

A27356

PIPE FITTING

BODY - coupling

1шт.

17

A33964

SEAL

- piston

1шт.

Part of COUPLING REPAIR KIT, P/N A40459

1шт.

18

A27508

PISTON

- coupling

1шт.

Part of COUPLING REPAIR KIT, P/N A40459

1шт.

19

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O"RING - piston (1/4 x 3/8 x 1/16")

1шт.

Part of COUPLING REPAIR KIT, P/N A40459

1шт.

20

A27351

SPRING

- piston

1шт.

Part of COUPLING REPAIR KIT, P/N A40459

1шт.

21

A9634

SLEEVE

- piston

1шт.

Part of COUPLING REPAIR KIT, P/N A40459

1шт.

25

A40459

KIT

COUPLING REPAIR KIT - Includes Refs., 3, 8, 9, 10, 17, 18, 19, 20 and 21

1шт.

Выбрано товаров: 28
