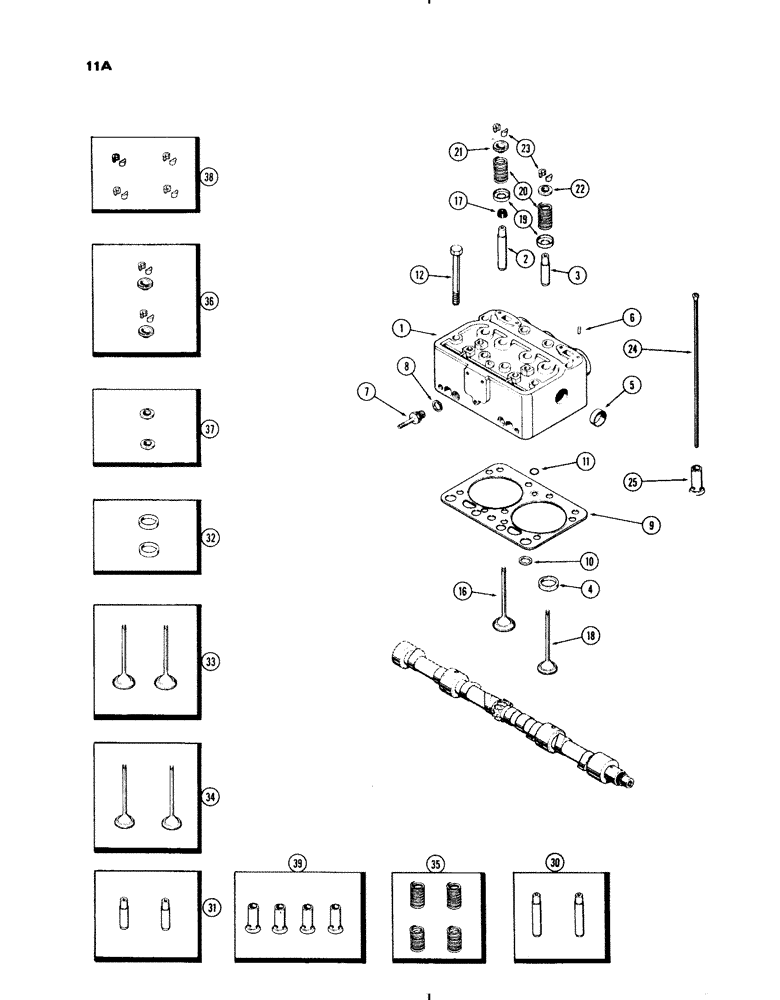

Запчасти Case IH 730 SERIES (011A) - CYLINDER HEAD AND VALVE TRAIN, MODEL 730, 267 DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A33643
HEAD (CYLINDER)
HEAD ASSY. - cylinder, Includes: Ref. 2 - 8
2шт.
2
NSS
NOT SOLD SEPARAT
GUIDE - intake valve (Order ref. 30)
2шт.
3
NSS
NOT SOLD SEPARAT
GUIDE - exhaust valve (Order ref. 31)
2шт.
4
NSS
NOT SOLD SEPARAT
INSERT - exhaust valve (Order ref. 32)
2шт.
5
A34124
PLUG,Cup, 1 5/8", Stainless
- cyl. head (1-41/64" cup type)
2шт.
6
A11810
PIN,3.19mm OD x 6.99mm L
- powrcel locating (1/8 x 17/64")
2шт.
7
A10678
STUD
- nozzle holder
2шт.
8
A10679
GASKET
- stud (23/32 x 29/32 x 1/32" copper)
2шт.
9
A23118
GASKET
- cylinder head
2шт.
10
A7669
RING
- water passage (7/8 x 1-3/32 x 5/64" rubber)
4шт.
11
A27410
O-RING,0.487" ID x 0.693" OD x 0.103"
"O"RING - oil passage (1/2 x 11/16 x 3/32")
2шт.
12
A23355
BOLT
- cyl. head (9/16 x 6" N.C. hex.)
18шт.
16
NSS
NOT SOLD SEPARAT
VALVE - intake (Order ref. 33)
4шт.
17
A10726
SEAL
SHIELD - oil, intake valve
4шт.
18
NSS
NOT SOLD SEPARAT
VALVE - exhaust (Order ref. 34)
4шт.
19
A27866
SEAT
- valve springs
8шт.
20
NSS
NOT SOLD SEPARAT
SPRING - valve (Order ref. 35)
8шт.
21
NSS
NOT SOLD SEPARAT
RETAINER - intake valve spring (Order ref. 36)
4шт.
22
NSS
NOT SOLD SEPARAT
ROTO-CAP - exhaust valve spring (Order ref. 37)
4шт.
23
NSS
NOT SOLD SEPARAT
KEEPER - valve spring (Order ref. 38)
16шт.
24
A21060
ROD
- push
8шт.
25
NSS
NOT SOLD SEPARAT
LIFTER - push rod (Order ref. 39)
8шт.
30
A21671
GUIDE
KIT - intake valve (Set of 2)
2шт.
31
A21674
GUIDE
KIT - exhaust valve (Set of 2)
2шт.
32
A21681
KIT
INSERT KIT - exhaust valve (Set of 2)
2шт.
33
A11801
VALVE
KIT - intake (Set of 2) (Replaces A40351)
2шт.
34
A24770
VALVE
KIT - exhaust (Set of 2)
2шт.
35
A21694
SPRING
KIT - valves (Set of 4)
2шт.
36
A21657
LOCK
RETAINER KIT - intake valve spring (Set of 2 retainers & 4 keepers)
2шт.
37
A57433
COIL
ROTO CAP KIT - exhaust valve (Set of 2) (Replaces A24993)
2шт.
38
A40352
LOCK
KEEPER KIT - valve spring (Set of 8)
2шт.
39
A21653
KIT
LIFTER KIT - push rod (Set of 4)
2шт.
Выбрано товаров: 32
