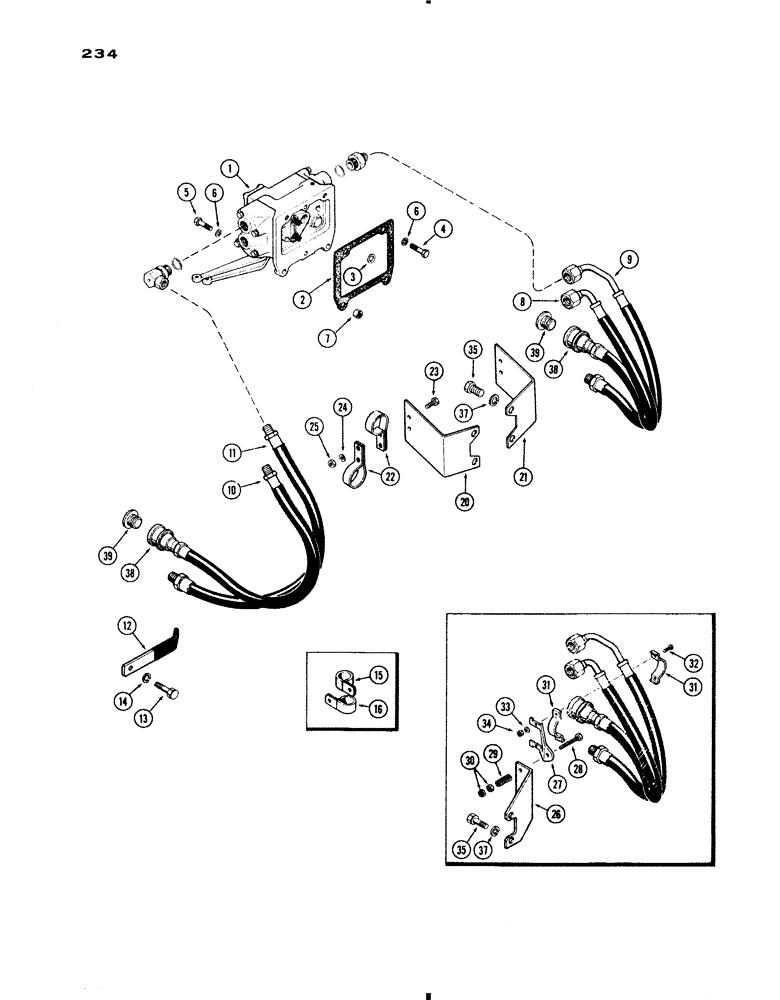

Запчасти Case IH 730 SERIES (234) - BREAKAWAY COUPLING AND LINES, ALL 730 AND 830 EXCEPT GROVE (08) - HYDRAULICS

1

A57571

VALVE

ASSY. - aux. (Warner) (See Figure 182)

1шт.

1

A34699

VALVE

ASSY. - aux. (Kingston) (See Figure 183C)

1шт.

2

A32349

GASKET

- auxiliary valve

1шт.

3

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

- auxliary valve (21/32 x 29/32 x 9/32")

1шт.

4

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Aux valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Aux valve Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

8

A33003

HOSE

- coupling, L.H. lower (18-3/16" long)

1шт.

9

A32999

HOSE

- couplings, L.H. upper (24-7/16" long)

1шт.

10

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - coupling, R.H. lower (31-5/8" long)

1шт.

11

A33002

HYDRAULIC HOSE

HOSE - coupling, R.H. upper (26-3/4" long)

1шт.

12

A33981

STRAP - right hand hose

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Strap Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

A32569

CLAMP - R.H. hose, lower (Order Ref. 12)

1шт.

16

A33004

CLAMP

- R.H. hose, upper (Order Ref. 12)

1шт.

20

A57660

BRACKET

- coupling, right hand, Start Serial: 8344855

1шт.

21

A57661

BRACKET - coupling, left hand, Start Serial: 8344855

1шт.

22

A57662

CLAMP

- coupling, Start Serial: 8344855

4шт.

23

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Clamp to bracket Hex, 1/4"-20 x 1", G5

4шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25

25-104

NUT,1/4"-20, G5

4шт.

26

A33001

BRACKET - coupling mtg., left hand, Serial Range: -8344855

1шт.

26

A33000

BRACKET - coupling mtg., right hand4, Serial Range: -8344855

1шт.

27

A27360

BRACKET

- clamp4, Serial Range: -8344855

4шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Bracket Hex, 3/8"-16 x 2", G5

4шт.

29

A26546

SPRING

- (used w/A27360 bracket)

4шт.

30

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C., jam)

8шт.

31

A27423

CLAMP

- coupling ret. (use W/A27360 bracket)

8шт.

32

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- clamp (#8-32 x 5/8" rd. hd.)

8шт.

33

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

8шт.

34

129-6

NUT,#8-32

8шт.

35

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Bracket (w/out hitch) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

4шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

38

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - breakaway (See Figure 235A)

4шт.

39

A22768

PLUG

- dust, female coupling

4шт.
