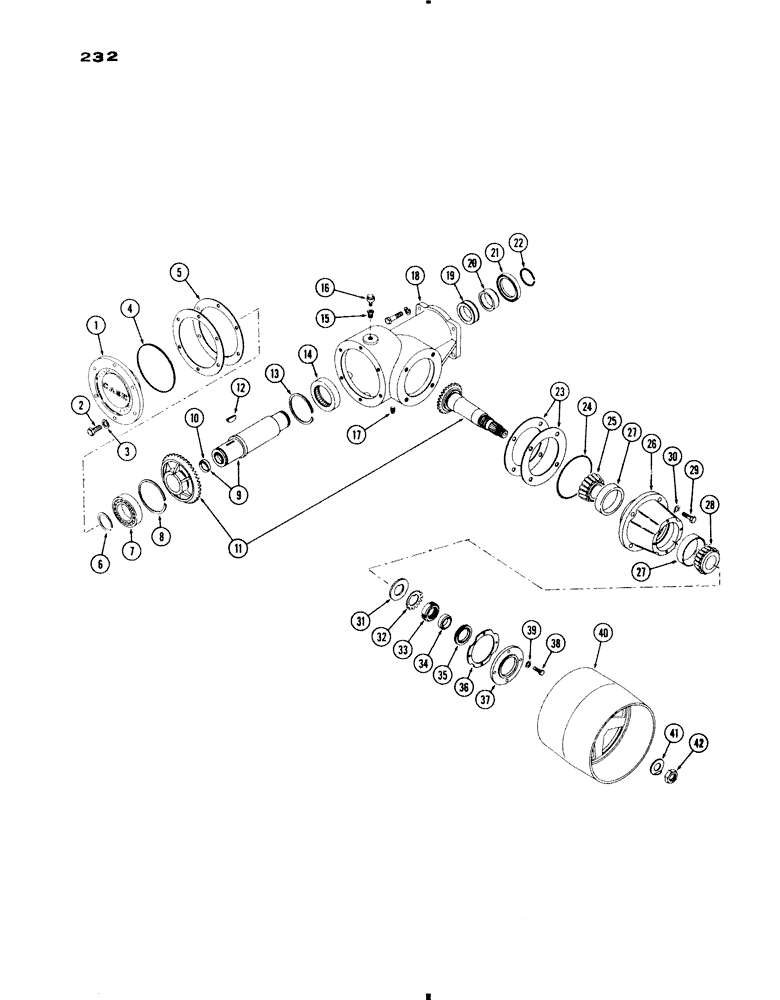

Запчасти Case IH 730 SERIES (232) - BELT PULLEY (08) - HYDRAULICS

1

A20293

COVER - hsg. & brg. carrier

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

3

92-6

LOCK WASHER,3/8"

6шт.

4

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O"RING - cover (6-1/4 x 6-1/2 x 1/8")

1шт.

5

A20294

SHIM - cover (.003")

1шт.

5

A20295

SHIM - cover (.005")

1шт.

6

A27760

RING, SNAP

RING - snap, brg. ret., outer

1шт.

7

A20291

BALL BEARING,2.3616" ID x 4.3307" OD

BEARING - drive shaft, outer

1шт.

8

A20292

RING - snap, brg. ret., inner

1шт.

9

A34040

BOLT

SHAFT ASSY. - drive (used w/540 PTO), Includes: Ref. 10

1шт.

9

A34042

SHAFT ASSY. - drive (used w/1000 PTO), Includes: Ref. 10

1шт.

10

41-1024

PLUG,Cup, 1 1/2"

- drive shaft (1-1/2 cup type)

1шт.

11

A20312

GEAR SET - bevel (used w/540 PTO)

1шт.

11

A34043

GEAR SET - bevel (used w/1000 PTO)

1шт.

12

126-44

WOODRUFF KEY,#129, 3/8" x 2 1/8"

KEY - bevel gear (3/8 x 2-1/8" Woodruff)

1шт.

13

A20287

RING - snap, inner brg. ret.

1шт.

14

A20286

BEARING - hsg., inner

1шт.

15

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

(1/2" ext. to 1/4" int. P.T.)

1шт.

16

A27173

BREATHER

- hsg.

1шт.

17

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - hsg. (1/8" P.T., sq. hd.)

1шт.

18

A34044

HOUSING - pulley drive

1шт.

19

A20313

RACE - brg., inner

1шт.

20

A20289

COLLAR - drive shaft (2-5/32 x 2-1/2 x 3/4")

1шт.

21

A20288

SEAL - oil, hsg. (2-1/2 x 3-1/2 x 15/32")

1шт.

22

A20314

RING - snap, oil seat ret.

1шт.

23

A20299

SHIM - bevel pinion hsg. (.003")

1шт.

23

A20300

SHIM - bevel pinion hsg. (.005")

1шт.

24

R12802

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

"O" RING - bevel pinion hsg. (4-3/4 x 5 x 1/8")

1шт.

25

A27301

ROLLER BEARING,2" ID x 1.193"

CONE - brg., inner

1шт.

26

A20298

HOUSING ASSY. - bevel pinion, Includes: Ref. 27

1шт.

27

A26678

BEARING CUP,3.6718" OD x 0.9375"

CUP - bearing

2шт.

28

A20301

CUP

CONE - brg. outer

1шт.

29

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

30

92-8

LOCK WASHER,1/2"

4шт.

31

A20302

WASHER - thrust, outer brg.

1шт.

32

A20303

WASHER - pinion shaft

1шт.

33

131-1059

LOCK NUT,Bearing, 1.5748" Bore

NUT - pinion shaft ret.

1шт.

34

A20305

SPACER - belt pulley

1шт.

35

A20306

SEAL - oil, pinion (1-3/4 x 2-29/64 x 1/4")

1шт.

36

A20309

GASKET - carrier

1шт.

37

A20307

CARRIER - oil seal

1шт.

38

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

39

92-5

LOCK WASHER,5/16"

4шт.

40

A7427

PULLEY - belt

1шт.

41

A26737

WASHER - tab

1шт.

42

25-1516

NUT,Jam, 1"-14, G5

- pulley ret. (1" N.F. half hex.)

1шт.
