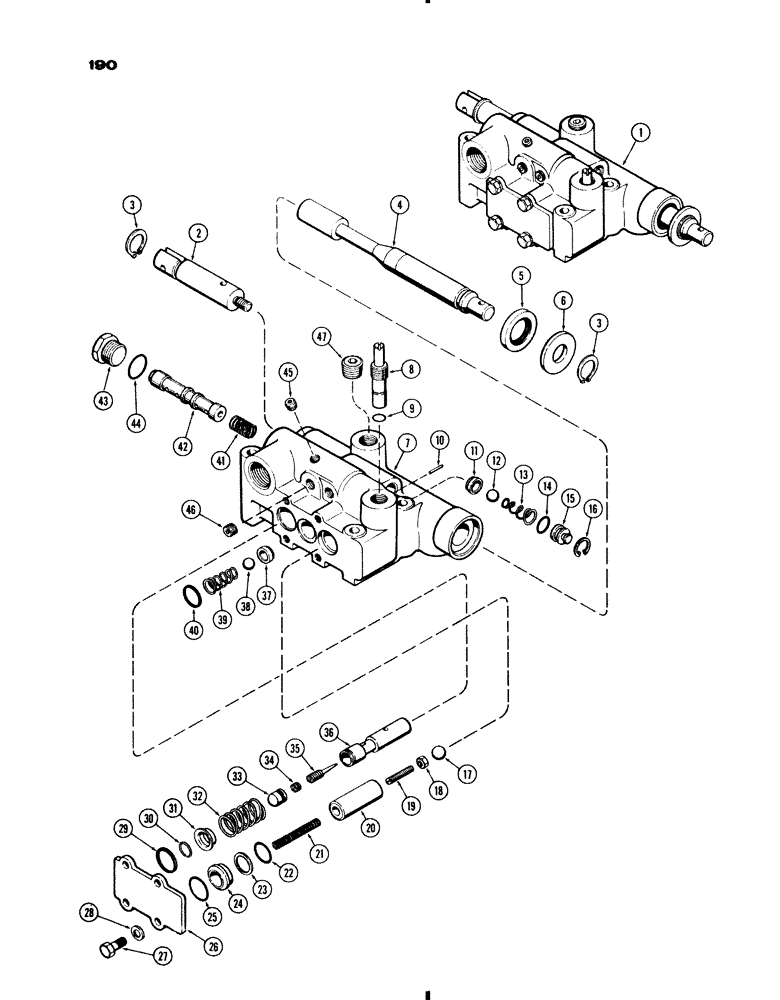

Запчасти Case IH 730 SERIES (190) - A32978 VALVE (08) - HYDRAULICS

1

A32978

VALVE

ASSY. - draft control, Includes: Ref. 2 - 46

1шт.

2

A32981

END - valve spool

1шт.

3

A35094

SNAP RING,#81, Ext

RING - snap, , spool #81, Ext

2шт.

4

A32980

SPOOL - depth control valve

1шт.

5

A11507

OIL SEAL

- oil, spool (7/8 x 1-3/8 x 1/4")

1шт.

6

A35093

WASHER

- spool stop (13/16 x 1-5/8 x 11 Ga.)

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - depth control valve (Order A32978)

1шт.

8

A32363

SPOOL

- throttle

1шт.

9

A40109

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

"O"RING - throttle spool (3/8 x 1/2 x 1/16") (See A42496 kit)

1шт.

Part of SEAL KIT, P/N A42496

1шт.

10

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, , Throttle spool 3/32" x 5/8", Slotted

1шт.

11

L10120

SEAT

- ball, check valve

1шт.

12

211-12

BALL,7/16 Dia

- check valve (7/16" dia.)

1шт.

13

A35099

SPRING

- pressure, check valve

1шт.

14

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O"RING - check valve plug (1/2 x 11/16 x 3/32") (See A42496 kit)

1шт.

Part of SEAL KIT, P/N A42496

1шт.

15

A35693

PLUG

- check valve

1шт.

16

A35694

SNAP RING,0.688", Int, #68

RING - snap, , plug 0.688", Int, #68

1шт.

17

211-13

BALL,1/2" Dia

- lowering poppet 1/2" Dia

1шт.

18

A35102

NUT

- lock, adj. screw (#10-32 hex.)

1шт.

19

A35101

SET SCREW,Hex Skt, #10 - 32 x 1 1/4", Gr 5

- set, poppet adj.

1шт.

20

A35695

PISTON

- lowering poppet

1шт.

21

A35103

SPRING

- pressure, lowering poppet

1шт.

22

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O"RING - sleeve (3/4 x 15/16 x 3/32") (See A42496)

1шт.

Part of SEAL KIT, P/N A42496

1шт.

23

A35698

BACK-UP RING

WASHER - "O"ring back-up (See A42496 kit)

1шт.

Part of SEAL KIT, P/N A42496

1шт.

24

A35696

SLEEVE

- lowering poppet

1шт.

25

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O"RING - lowering poppet (7/8 x 1-1/16 x 3/32") (See A42496 kit)

1шт.

Part of SEAL KIT, P/N A42496

1шт.

26

A35105

COVER

- valve

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Cover Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

28

92-5

LOCK WASHER,5/16"

4шт.

29

A35548

RING

QUAD RING - trigger valve (See A42496 kit)

1шт.

Part of SEAL KIT, P/N A42496

1шт.

30

A35690

RING

- snap, seat ret.

1шт.

31

A35689

RETAINER

SEAT - pressure spring retainer

1шт.

32

A35691

SPRING

- pressure, trigger valve

1шт.

33

A35097

PLUG

- trigger valve cap

1шт.

34

A35785

SET SCREW,5/16" - 18 x 1/4"

- lock, needle valve

1шт.

35

A35784

VALVE

- needle, trigger poppet

1шт.

36

A32982

PISTON

- trigger poppet

1шт.

37

L10120

SEAT

- check valve

1шт.

38

211-12

BALL,7/16 Dia

- check valve (7/16" dia.)

1шт.

39

A35099

SPRING

- pressure, check valve

1шт.

40

A35547

RING

QUAD RING - check valve (See A42496 kit)

1шт.

Part of SEAL KIT, P/N A42496

1шт.

41

A35700

SPRING

- pressure, flow control

1шт.

42

A32984

PISTON

- flow control

1шт.

43

A34215

PLUG

ASSY. - flow control piston, Includes: Ref. 44

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O"RING - plug (5/8 x 3/4 x 3/32") (See A42496)

1шт.

Part of SEAL KIT, P/N A42496

1шт.

45

221-850

PLUG,Hex Soc, 1/16"-27

- (1/16" P.T., sckt. hd.)

1шт.

46

221-849

PLUG,Hex Soc, 1/8"-27

- (1/8" P.T., sckt. hd.)

2шт.

47

221-1843

PLUG

- (3/8" P.T. sckt. hd.)

1шт.

A42496

GASKET KIT

SEAL KIT - draft control valve, Includes Refs, 9, 14, 22, 23, 25, 29, 40 and 44

1шт.
