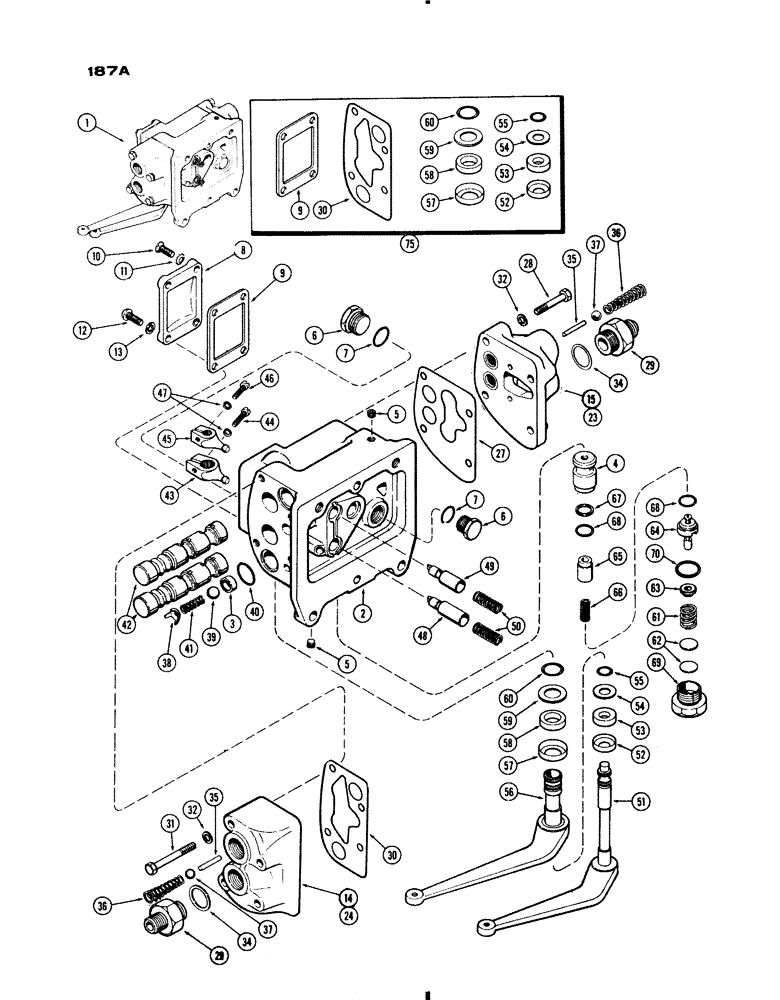

Запчасти Case IH 730 SERIES (187A) - A34739 AUXILIARY VALVE, 730 GROVE, 1ST USED TRAC. SER. NO. 8288617 (08) - HYDRAULICS

A34739

LOCK VALVE

VALVE ASSY. - auxiliary, non-float (cont. from Figure 186)

1шт.

42

A30874

SPOOL

- hydraulic valve

2шт.

43

A30878

ARM

- spool shifter, lower (2-11/64" long) (For 3/4" dia. shaft w/48 serrations)

1шт.

44

72-416

SCREW

- lower arm (1/4 x 1" N.C. fill. hd.)

1шт.

45

A30887

ARM

- spool shifter, upper (1-31/32" long) (For 1/2" dia. shaft w/36 serrations)

1шт.

46

72-412

SCREW,Slotted Fil Hd, 1/4"-28 x 3/4"

- upper arm (1/4 x 3/4" N.F., fill. hd.)

1шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

48

A33357

PLUNGER

- spool, lower (w/out drilled hole)

1шт.

49

A33358

PLUNGER

- spool, upper (w/drilled hole)

1шт.

50

A30883

SPRING

- spool plunger

2шт.

51

A23387

LEVER

- spool shifter (w/36 serrations)

1шт.

52

A30875

RETAINER

- felt seal (See Ref. 75)

1шт.

Part of Repair Kit, P/N A25264

1шт.

53

A30853

WASHER

SEAL - (1/2 x 15/16 x 1/4" felt) (See Ref. 75)

1шт.

Part of Repair Kit, P/N A25264

1шт.

54

A27409

WASHER

- felt seal (23/64 x 63/64 x 20 Ga.) (See Ref. 75)

1шт.

Part of Repair Kit, P/N A25264

1шт.

55

A60498

O-RING

"O"RING - (1/2 x 11/16 x 3/32") (Repl. A27410) (SeeRef. 75)

1шт.

Part of Repair Kit, P/N A25264

1шт.

56

A23357

SHAFT

LEVER - spool shifter (w/48 serrations)

1шт.

57

A30880

RETAINER

- felt seal (See Ref. 75)

1шт.

Part of Repair Kit, P/N A25264

1шт.

58

A30879

WASHER

SEAL - (3/4 x 1-3/16 x 1/4") (See Ref. 75)

1шт.

Part of Repair Kit, P/N A25264

1шт.

59

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - felt seal (49/64 x 1-15/64 x 20 Ga.) (See Ref. 75)

1шт.

Part of Repair Kit, P/N A25264

1шт.

60

A60499

O-RING

"O"RING - (3/4 x 15/16 x 3/32") (Repl. A27365) (See Ref. 75)

1шт.

Part of Repair Kit, P/N A25264

1шт.

A34723

VALVE

ASSY. - pilot relief (incl. Refs. 4, 6 and 61 thru 70)

1шт.

61

A34492

SPRING

- valve, outer (23/32" free length)

1шт.

62

A34391

SHIM,.0149" Thk

Valve spring (28 ga.) .0149" Thk

1шт.

62

A34390

SHIM,.0329" Thk

Valve spring (21 Ga.) .0329" Thk

1шт.

62

A34694

SHIM,.0201" Thk

Valve spring (24 Ga.) .0201" Thk

1шт.

63

A34491

RETAINER

- valve spring

1шт.

64

A34489

PISTON

ASSY. - pilot

1шт.

65

A34487

X

PISTON - relief valve

1шт.

66

A34382

SPRING

- valve, inner (1" free length)

1шт.

67

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

SEAL - sleeve (inner)

1шт.

68

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O"RING - sleeve & ret. (5/8 x 3/4 x 1/16")

2шт.

69

A34392

PLUG

- relief valve

1шт.

70

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - plug (3/4 x 59/64 x 1/8")

1шт.

75

A25264

SEAL

REPAIR KIT - aux. valve, Includes Refs., 52, 53, 54, 55, 57, 58, 59 and 60

1шт.
