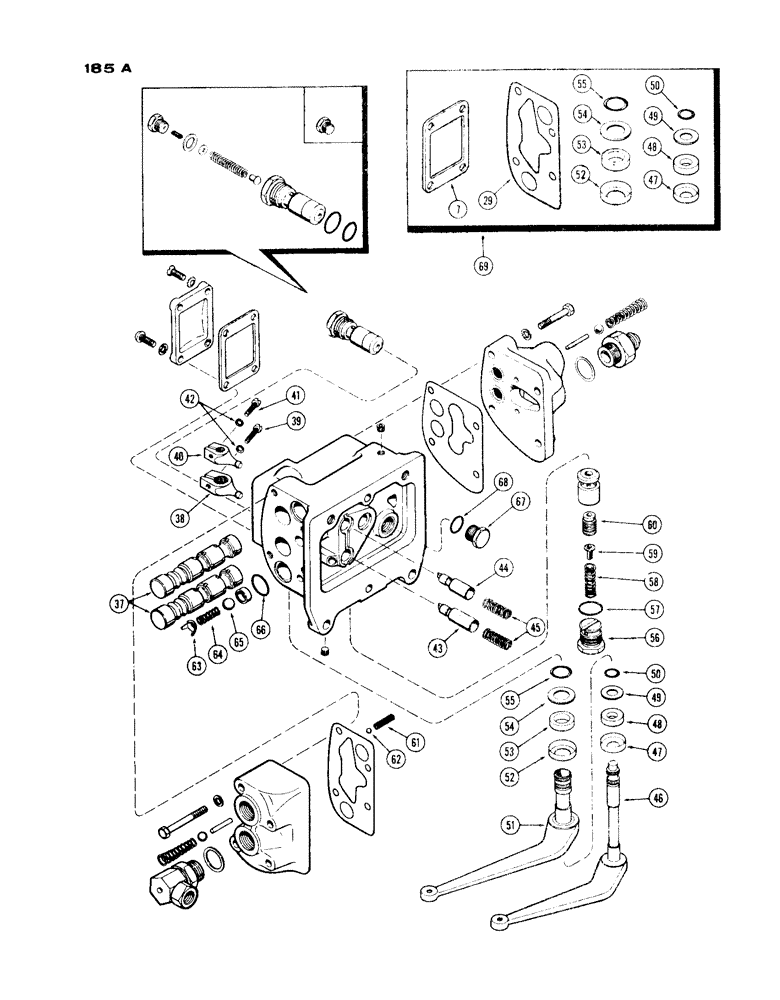

Запчасти Case IH 730 SERIES (185A) - A34069 AUX VALVE, ALL 730 AND 830 EXCEPT GROVE, USED PRIOR TO TRAC. S/N 8288617 (08) - HYDRAULICS

A34069

VALVE

ASSY. - auxiliary (Cont. from Figure 184), Includes: Ref. 37 - 68 and 2 - 36 on Fig. 184

1шт.

37

A30874

SPOOL

- main, hydraulic valve

2шт.

38

A30878

ARM

- spool shifter, lower (2-11/64" long) (For 3/4" dia. shaft w/48 serrations)

1шт.

39

72-416

SCREW

- lower arm (1/4 x 1" N.F. fill hd.)

1шт.

40

A30887

ARM

- spool shifter, upper (1-31/32" long) (For 1/2" dia. shaft w/36 serrations)

1шт.

41

72-412

SCREW,Slotted Fil Hd, 1/4"-28 x 3/4"

- upper arm (1/4 x 3/4" N.F. fill. hd.)

1шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

43

A33357

PLUNGER

- spool, lower (w/out drilled hole)

1шт.

44

A33358

PLUNGER

- spool, upper (w/drilled hole)

1шт.

45

A30883

SPRING

- spool plunger

2шт.

46

A32566

LEVER - spool shifter (w/36 serrations)

1шт.

47

A30875

RETAINER

- felt seal (see Ref. 69)

1шт.

Part of Repair Kit, P/N A25264

1шт.

48

A30853

WASHER

SEAL - (1/2 x 15/16 x 1/4" felt) (see Ref. 69)

1шт.

Part of Repair Kit, P/N A25264

1шт.

49

A27409

WASHER

- felt seal (23/64 x 63/64 x 20 Ga.) (see Ref. 69)

1шт.

Part of Repair Kit, P/N A25264

1шт.

50

A60498

O-RING

"O"RING - (1/2 x 11/16 x3/32") (Repl. A27410) (See Ref. 69)

1шт.

Part of Repair Kit, P/N A25264

1шт.

51

A32555

LEVER

- spool shifter (w/48 serrations)

1шт.

52

A30880

RETAINER

- felt seal (see Ref. 69)

1шт.

Part of Repair Kit, P/N A25264

1шт.

53

A30879

WASHER

SEAL - (3/4 x 1-3/16 x 1/4" felt) (see Ref. 69)

1шт.

Part of Repair Kit, P/N A25264

1шт.

54

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - felt seal (49/64 x 1-15/64 x 20 Ga.) (See Ref. 69)

1шт.

Part of Repair Kit, P/N A25264

1шт.

55

A60499

O-RING

"O"RING - (3/4 x 15/16 x 3/32") (Repl. A27365) (See Ref. 69)

1шт.

Part of Repair Kit, P/N A25264

1шт.

56

A32281

PLUG - relief valve

1шт.

57

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - plug (3/4 x 59/64 x 1/8")

1шт.

58

A23082

SPRING

- relief valve

1шт.

59

A24363

STRAINER ASSY.

SCREEN - relief valve

1шт.

60

A23366

PISTON

- relief valve

1шт.

61

A23364

SPRING

- relief valve

2шт.

62

211-7

BALL,1/4" Dia

- relief valve 1/4" Dia

2шт.

63

A27364

GUIDE

- spring, check valve

4шт.

64

A27452

SPRING

- check valve

4шт.

65

211-15

BALL,5/8" Dia

- check valve (.) 5/8" Dia

4шт.

66

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O"RING - check valve (7/8 x 1-1/8 x 1/8")

4шт.

67

86512512

PLUG,7/8" - 14 ORB

- Valve port, Incl. Ref. 68 Hex Hd, 7/8"-14 ORB

1шт.

68

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O"RING - plug (5/8 x 3/4 x 3/32")

1шт.

69

A25264

SEAL

REPAIR KIT - aux. valve, Includes Refs., 47, 48, 49, 50, 52, 53, 54 and 55

1шт.
