Запчасти Case IH 730 SERIES (184) - A34069 AUX. VALVE, ALL 730 AND 830 EXCEPT GROVE, USED PRIOR TO TRAC. S/N 8288617 (08) - HYDRAULICS

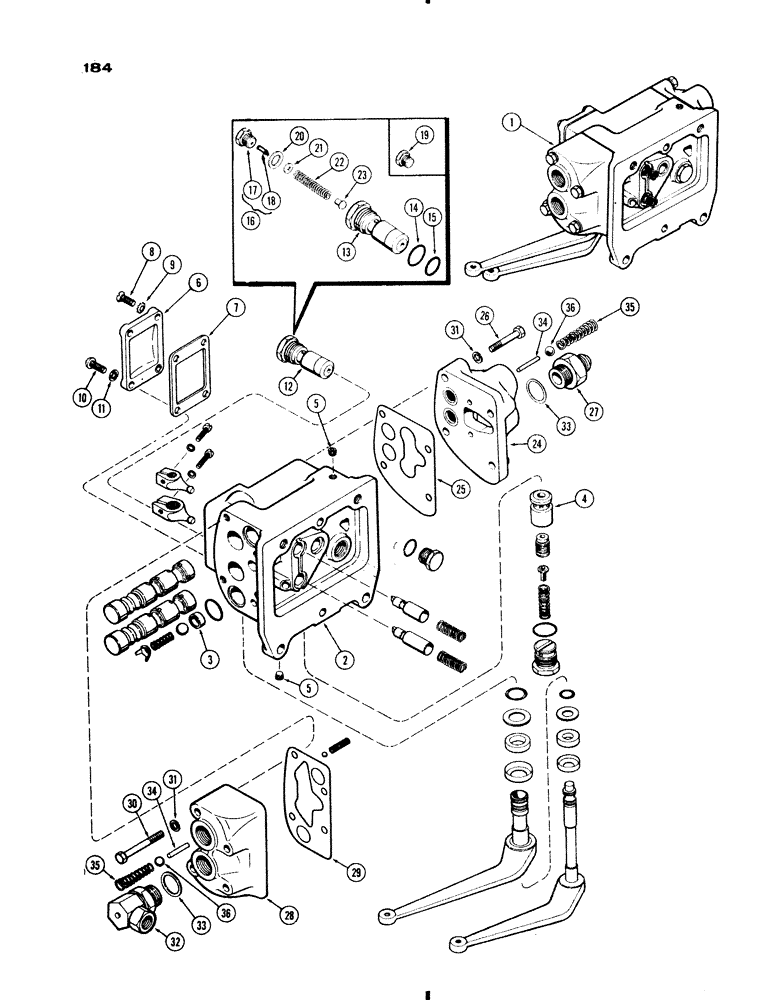

Схема запчастей Case IH 730 SERIES - (184) - A34069 AUX. VALVE, ALL 730 AND 830 EXCEPT GROVE, USED PRIOR TO TRAC. S/N 8288617 (08) - HYDRAULICS
3
34
2
11
29
33
31
35
25
36
31
14
32
8
36
35
4
20
34
5
19
26
28
5
12
27
24
23
9
1
16
6
15
7
17
18
30
10
33
22
21
13

Артикул

Название

Примечание

Количество

1

A34069

VALVE

ASSY. - auxiliary, non-float (Order A34699), Includes: Ref. 2 - 36 and 37 - 68 on Fig. 185A

1шт.

2

A25086

X

BODY ASSY. - valve (Order 1 - A34379 & 1 - A34723), Includes: Ref. 3 - 5

1шт.

3

A30869

SEAT

- ball, check valve

4шт.

4

A23354

SLEEVE

- relief valve pilot

1шт.

5

221-1849

PLUG

- body (1/8" P.T. sckt. hd.)

4шт.

6

A7353

CAP

- valve body

1шт.

7

A30854

GASKET

- cap (See Ref. 69 on Figure 185A)

1шт.

Part of Repair Kit, P/N A25264

1шт.

8

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- cap (1/4 x 3/4" N.C., flat hd.)

1шт.

9

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

1шт.

10

75-412

SCREW,Rd, 1/4" x 3/4"

- cap (1/4 x3/4" N.C., rd. hd.)

3шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

12

A40562

X

VALVE ASSY. - pilot relief (1450 PSI) (Order A34723), Includes: Ref. 13 - 23

1шт.

Valve Assy subs to A34723 with includes a 218-5157 plug. Remove Refs. 56, 57, 58, 59 & 60. replace with A34723.

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - pilot relief valve (order A40562)

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O"RING - (5/8 x 3/4 x 3/32")

1шт.

15

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O"RING - (9/16 x 3/4 x 3/32")

1шт.

16

A40677

PLUG ASSY., Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG - (drilled for pin) (order A40677)

1шт.

18

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, , Plug 5/32" x 3/4", Slotted

1шт.

19

A32559

PLUG - solid (used some early valves) (order A40677)

1шт.

20

A29468

GASKET

- plug (17/32 x 3/4 x 1/32" copper)

1шт.

21

A32283

SHIM - valve (.009")

1шт.

21

A32284

SHIM,.0478" Thk

Valve .0478" Thk

1шт.

22

A23367

SPRING

- relief valve

1шт.

23

A23368

VALVE POPPET

POPPET - relief valve

1шт.

24

A30886

X

HEAD - valve, left hand (Order A57394)

1шт.

25

A30888

GASKET

- left hand head

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

LH head Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

26

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

LH head Hex, 3/8"-16 x 1 3/4", G5

3шт.

27

A32985

FITTING

- left hand head

2шт.

28

A23395

HEAD - valve, right hand (Order A57407)

1шт.

29

A30855

GASKET

- right hand head (see Ref. 69 on Figure 185A)

1шт.

Part of Repair Kit, P/N A25264

1шт.

30

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- R.H. head (3/8 x 2-3/4" N.C. hex.)

4шт.

31

92-6

LOCK WASHER,3/8"

8шт.

32

A30872

90 ELBOW

FITTING ASSY. - right hand head

2шт.

33

A27366

GASKET

- fitting (1-1/32 x 1-1/4 x 1/32" copper)

4шт.

34

A30876

SPOOL

- auxiliary valve

4шт.

35

A30877

SPRING

- return, check valve

4шт.

36

211-13

BALL,1/2" Dia

- check 1/2" Dia

4шт.
