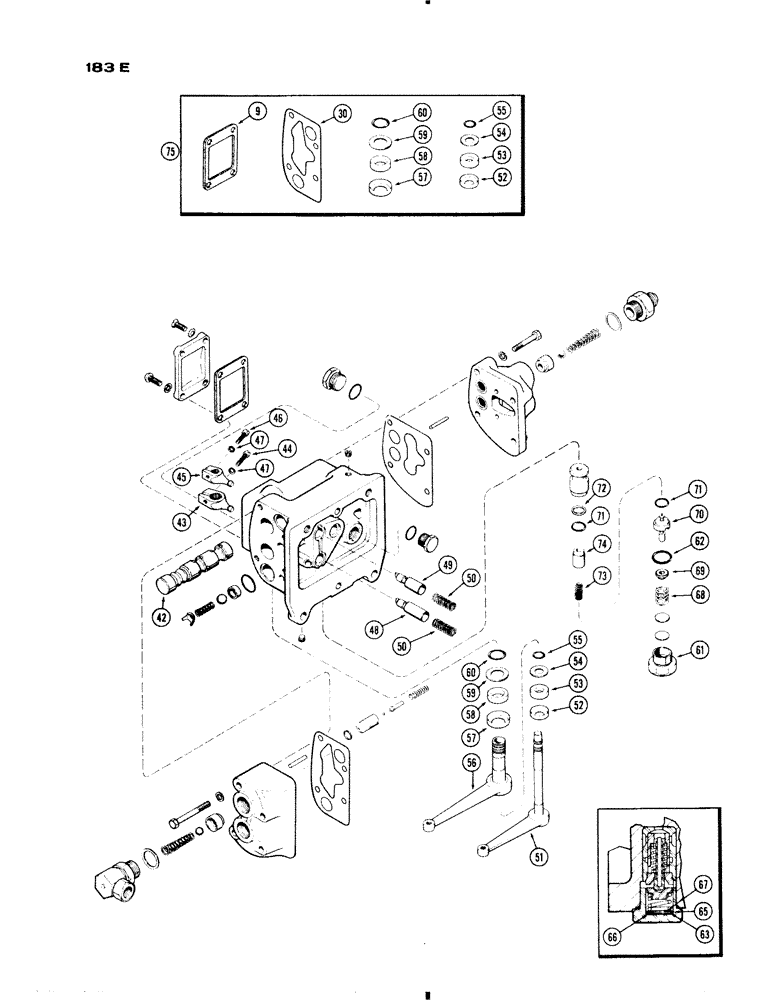

Запчасти Case IH 730 SERIES (183E) - A34699 AUX. VALVE, ALL 730 AND 830 EXCEPT GROVE, KINGSTON PROD., USED PRIOR TO TRANS. S/N 2219218 (08) - HYDRAULICS

A34699

VALVE

ASSY. - auxiliary, non-float (cont. from Figure 183C), Includes: Ref. 42 - 74 and 2 - 41 on Fig. 183C

1шт.

42

A30874

SPOOL

- hydraulic valve

2шт.

43

A30878

ARM

- spool shifter, lower (2-11/64" long) (For 3/4" dia. shaft w/48 serrations)

1шт.

44

72-416

SCREW

- lower arm (1/4 x 1" N.C., fill hd.)

1шт.

45

A30887

ARM

- spool shifter, upper (1-31/32" long) (For 1/2" dia. shaft w/36 serrations)

1шт.

46

72-412

SCREW,Slotted Fil Hd, 1/4"-28 x 3/4"

- upper arm (1/4 x 3/4" N.F. fill. hd.)

1шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

48

A33357

PLUNGER

- spool, lower (w/out drilled hole)

1шт.

49

A33358

PLUNGER

- spool, upper (w/drilled hole)

1шт.

50

A30883

SPRING

- spool plunger

2шт.

51

A32566

LEVER - spool shifter (w/36 serrations)

1шт.

52

A30875

RETAINER

- felt seal

1шт.

Part of REPAIR KIT, A25264

1шт.

53

A30853

WASHER

SEAL - (1/2 x 15/16 x 1/4")

1шт.

Part of REPAIR KIT, A25264

1шт.

54

A27409

WASHER

- felt seal (23/64 x 63/64 x 20 Ga.)

1шт.

Part of REPAIR KIT, A25264

1шт.

55

A60498

O-RING

"O"RING - lever (1/2 x 11/16 x 3/32")

1шт.

Part of REPAIR KIT, A25264

1шт.

56

A32555

LEVER

- spool shifter (w/48 serrations)

1шт.

57

A30880

RETAINER

- felt seal

1шт.

Part of REPAIR KIT, A25264

1шт.

58

A30879

WASHER

SEAL - (3/4 x 1-3/16 x 1/4" felt)

1шт.

Part of REPAIR KIT, A25264

1шт.

59

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - felt seal (49/64 x1-15/64 x 20 Ga.)

1шт.

Part of REPAIR KIT, A25264

1шт.

60

A60499

O-RING

"O"RING - lever (3/4 x 15/16 x 3/32")

1шт.

Part of REPAIR KIT, P/N A25264

1шт.

A34723

VALVE

ASSY. - pilot relief (incl. Refs. 4, 6 & 61 thru 74)

1шт.

61

A34392

PLUG

- relief valve

1шт.

62

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - plug (3/4 x 59/64 x 1/8")

1шт.

63

A34391

SHIM,.0149" Thk

Valve spring (29 Ga.) .0149" Thk

1шт.

63

A34390

SHIM,.0329" Thk

Valve spring (21 Ga.) .0329" Thk

1шт.

65

A34694

SHIM,.0201" Thk

Valve spring (24 Ga.) .0201" Thk

1шт.

66

A34817

SHIM,.0149" Thk

Valve spring (28 Ga.) (Blue Japan) .0149" Thk

1шт.

67

A34849

SHIM,.0105" Thk

Valve spring .0105" Thk

1шт.

68

A34492

SPRING

- valve, outer (23/32" free length)

1шт.

69

A34816

X

RETAINER - valve spring (Replaces A34491)

1шт.

70

A34814

PISTON

ASSY. - pilot (Replaces A34489)

1шт.

71

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O"RING - sleeve & ret. (5/8 x 3/4 x 1/16")

2шт.

72

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

SEAL - sleeve (inner)

1шт.

73

A34382

SPRING

- valve, inner (1" free length)

1шт.

74

A34487

X

PISTON - relief valve

1шт.

75

A25264

SEAL

REPAIR KIT - auxiliary valve, Includes Refs., 52, 53, 54, 55, 57, 58, 59 and 60

1шт.
