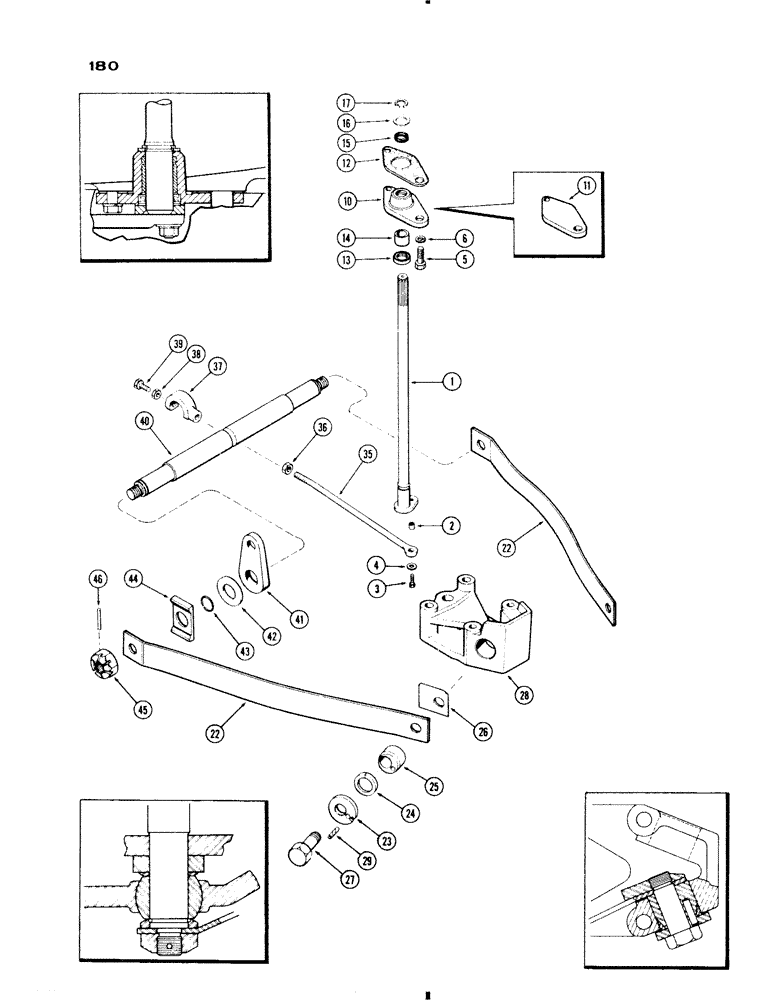

Запчасти Case IH 730 SERIES (180) - DRAFT-O-MATIC LOWER SENSING, 1ST USED TRAC. S/N 8348489 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A34834
SHAFT
- draft signal
1шт.
2
A34836
SPACER
- signal arm (5/16 x 1/2 x 15/32")
1шт.
3
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
Spacer Hex, 5/16"-18 x 7/8", G5, Full Thd
1шт.
4
95-5
WASHER,3/8" x 7/8" x .083"
- spacer bolt (3/8 x 7/8 x 5/64")
1шт.
5
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
Support Hex, 3/8"-16 x 1 1/8", G5, Full Thd
1шт.
6
92-6
LOCK WASHER,3/8"
1шт.
10
A32203
BUSHING
SUPPORT - signal shaft (Used w/hitch)
1шт.
11
A32387
COVER - signal shaft (Used w/out hitch)
1шт.
12
A32210
GASKET
- support
1шт.
13
A23903
OIL SEAL
- oil (1 x 1-1/2 x 1/4")
1шт.
14
A31082
BUSHING
BEARING - support (1 x 1-1/4 x 1")
1шт.
15
A9394
RING
QUAD RING - support (1 x 1-1/4 x 9/64")
1шт.
16
B18275
WASHER
- signal shaft (1-1/32 x 1-1/2 x 12 Ga.)
1шт.
17
A33315
RING
- snap, signal shaft ret.
1шт.
22
A57581
SPRING
- wishbone
2шт.
For satisfactory operation it is recommended new springs be installed in pairs.
1шт.
23
A57585
WASHER
- clamp, wishbone adj.
2шт.
24
A57584
RING
- cam adjusting
2шт.
25
A57582
CLAMP
CAM - wishbone adjusting
2шт.
26
A57583
CLAMP
- wishbone adjusting
2шт.
27
A57943
STEP BOLT
BOLT - wishbone spring cam
2шт.
28
A57956
BRACKET
- drawbar & wishbone anchor
1шт.
35
A33405
LINK
- draft signal control
1шт.
36
25-158
JAM NUT,Jam, 1/2"-20, G5
- link lock (1/2 N.C. hex., jam)
1шт.
37
A33006
LOCK
- control link
1шт.
38
25-146
JAM NUT,Jam, 3/8"-16, G5
- (3/8" N.C. hex,. jam)
1шт.
39
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
Lock Hex, 3/8"-16 x 1 1/8", G5, Full Thd
1шт.
40
A57587
BAR
- cross, wishbone
1шт.
41
A32953
LINK
- cross bar
1шт.
42
A34921
WASHER
- draft arm pivot, inner (1-1/2" I.D.)
2шт.
43
A57588
RING
- snap, washer & link ret.
2шт.
44
A57589
PLATE
- rear wishbone spacer
2шт.
45
A33404
NUT
- wishbone retaining
2шт.
46
138-2014
PIN,3/16" x 1 7/8", Coiled
nut retainer 3/16" x 1 7/8", Coiled
2шт.
Выбрано товаров: 35
