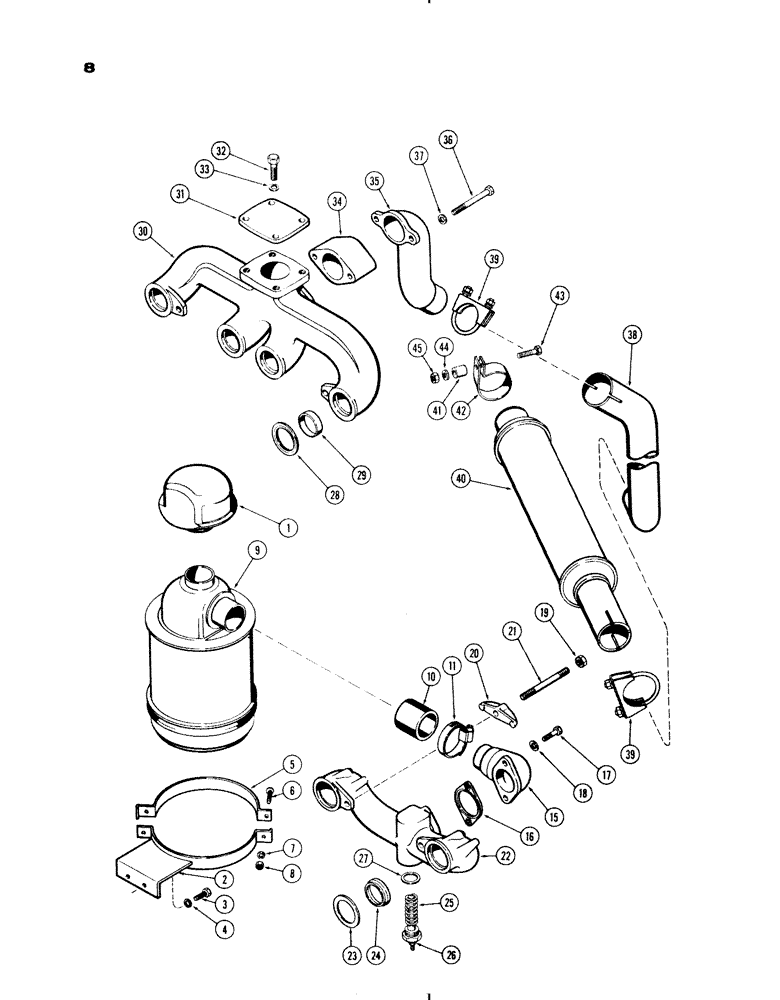

Запчасти Case IH 730 SERIES (008) - AIR CLEANER, 267 DIESEL, GROVE, MANIFOLD AND MUFFLER (02) - ENGINE

1

NLS

NO LONGER SERVICED

PRE-SCREENER - air

1шт.

2

A11830

SUPPORT ASSY. - air cleaner

2шт.

3

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

A27913

STRAP - ftg., air cleaner

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

8

25-106

NUT,3/8"-16, G5

- (3/8" N.C., hex.)

4шт.

9

A21432

CLEANER

ASSY. - air (Repair, Figure 38)

1шт.

10

A21828

HOSE

- cleaner to int. manifold

1шт.

11

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

2шт.

15

A21007

ELBOW - manifold, intake, muffler

1шт.

16

A21055

MANIFOLD GASKET

- elbow, int. manifold, muffler

1шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Muffler manifold Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

muffler manifold 3/8"

2шт.

19

25-117

NUT,7/16"-20, G5

- (7/16" N.F., hex.), muffler manifold

4шт.

20

A24368

CLAMP

- retainer, int. & exh. manifold, manifold

4шт.

21

A27911

STUD

- manifold (7/16" N.C./N.F. x 6"), muffler

4шт.

22

A21005

MANIFOLD - intake, muffler

1шт.

23

A11888

MANIFOLD GASKET

- manifold, intake, muffler

2шт.

24

A21383

CAP

FERRULE - manifold, intake, muffler

2шт.

25

A37775

HEATER

ASSY. - manifold, intake (Replaces A24396), Includes: Ref. 26, muffler

1шт.

26

129-503

NUT,1/4"-20, Brass

Muffler manifold 1/4"-20, Brass

1шт.

27

A20916

MANIFOLD GASKET

GASKET - manifold heater, muffler

1шт.

28

A11889

GASKET

- manifold, exhaust, muffler

4шт.

29

A21648

CAP

FERRULE - manifold, exhaust, muffler

4шт.

30

A20385

MANIFOLD - exhaust, muffler

1шт.

31

A20387

COVER - manifold, exhaust, muffler

1шт.

32

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Muffler manifold Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

33

92-8

LOCK WASHER,1/2"

muffler manifold 1/2"

1шт.

34

A23220

SPACER - extension, exh. stack, muffler manifold

1шт.

35

A33870

ELBOW - exhaust, muffler manifold

1шт.

36

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Muffler manifold Hex, 1/2"-13 x 3 3/4", G5

2шт.

37

92-8

LOCK WASHER,1/2"

muffler manifold 1/2"

2шт.

38

A33871

PIPE - exhaust, muffler manifold

1шт.

39

A13240

CLAMP,2-5/8" ID

ASSY. - exhaust pipe, muffler manifold

2шт.

40

A24314

MUFFLER

- exhaust, manifold

1шт.

41

04265B

SPACER - clamp, muffler, manifold

1шт.

42

A8593

CLAMP

- muffler, manifold

1шт.

43

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Muffler manifold Hex, 5/16"-18 x 2 3/4", G5

1шт.

44

92-5

LOCK WASHER,5/16"

1шт.

45

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C., hex), muffler manifold

1шт.
