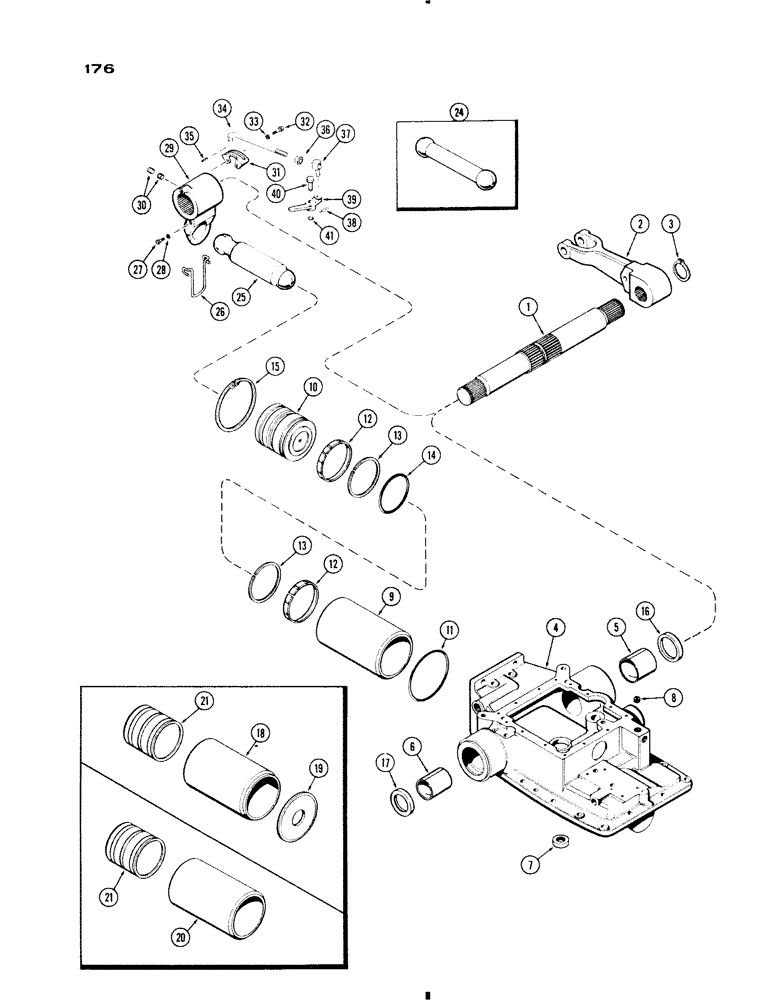

Запчасти Case IH 730 SERIES (176) - ROCKSHAFT AND HOUSING (08) - HYDRAULICS

1

A32286

ROCKSHAFT

1шт.

2

A57494

ARM

- rockshaft, lift links, Start Serial: 8347852

2шт.

2

A33376

ARM - rockshaft, lift links, Serial Range: -8347852

2шт.

3

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, arm ret.

2шт.

4

A34794

HOUSING ASSY. - rockshaft, Includes: Ref. 5 - 15, Start Serial: 8287346

1шт.

4

A34240

HOUSING ASSY. - rockershaft (Order A34794), Includes: Ref. 5 - 15, Serial Range: -8287346

1шт.

5

A32303

BUSHING,69.75mm ID x 74.73mm OD x 76.2mm L

- left hand (2.746 x 2.943 x 3")

1шт.

6

A32302

BUSHING,60.27mm ID x 65.2mm OD x 76.2mm L

- right hand (2.373 x 2.568 x 3")

1шт.

7

A12014

BUSHING

- signal shaft

1шт.

8

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - hsg. (3/8" P.T., sckt. hd.)

3шт.

9

A34273

LINING

LINER - hyd. cyl. piston (9-47/64" long) (See Refs. 18 & 20), Start Serial: 8287346

1шт.

10

A34270

PISTON

- hyd. cyl. (See Ref. 21), Start Serial: 8287346

1шт.

11

A32295

O-RING,5.725" ID x 6.275" OD x 0.275"

"O"RING - liner 5-3/4 x 6-1/4 x 1/4"

1шт.

12

A32219

RING,126.62mm ID x 133.35mm OD x 15.88mm Thk

- piston wear

2шт.

13

A32293

RING,121.94mm ID x 133.93mm OD x 2.97mm Thk

- "O"RING - back-up

2шт.

14

A32294

O-RING,4.725" ID x 5.275" OD x 0.275"

"O"RING - piston (4-3/4 x 5-1/4 x 1/4")

1шт.

15

A32292

CIRCLIP

RING - snap, liner ret.

1шт.

16

A32305

OIL SEAL,69.85mm ID x 92.2mm OD x 11.91mm Thk

- left hand (2-3/4 x 3-5/8 x 15/32")

1шт.

17

A32304

OIL SEAL,60.33mm ID x 85.8mm OD x 11.91mm Thk

- right hand (2-3/8 x 3-3/8 x 15/32")

1шт.

18

A34203

SLEEVE CYLINDER

LINER - hyd. cyl. piston (9-17/32" long) (See Refs. 9 & 20), Serial Range: 8266745-8287346

1шт.

19

A34204

RING

- liner, piston bottoming (used w/A34203 liner), Serial Range: 8266745-8287346

1шт.

20

A32291

X

LINER - hdy. cyl. (Order 1-A34203 & 1-A34204) (9-47/64" long), Serial Range: -8266745

1шт.

21

A32216

PISTON ASSY. - hyd. cyl. (used w/A32291 & A34203 liners), Serial Range: -8287346

1шт.

24

A57887

ROD

- piston, Start Serial: 8354980

1шт.

25

A32290

ROD

- piston (Order A57887), Serial Range: -8354980

1шт.

26

A60497

SPRING

- piston rod (Replaces A32913)

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

28

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.

29

A32287

ARM

- rockshaft, piston

1шт.

30

84-88

SET SCREW,Hex Soc, 1/2"-20 x 1/2"

SCREW - piston arm (1/2" N.F. cup pt., sckt. hd.)

2шт.

31

A33380

BRACKET

- lock rod

1шт.

32

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- bracket (5/16 x 1" N.F. hex.)

2шт.

33

92-5

LOCK WASHER,5/16"

2шт.

34

A33381

ROD

- valve lock

1шт.

35

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Lock rod 1/8" x 5/8", Slotted

2шт.

36

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock rod (3/8" N.F. hex.)

1шт.

37

A33379

TRUNNION

- lock, Serial Range: rod-lever

1шт.

38

136-109

SPLIT PIN

PIN - internal hair

1шт.

39

A34175

LEVER

- valve lock

1шт.

40

A32918

PIN

- valve lock lever pivot

1шт.

41

A11538

SNAP RING,#50, Ext

RING - snap, , pivot pin #50, Ext

1шт.
