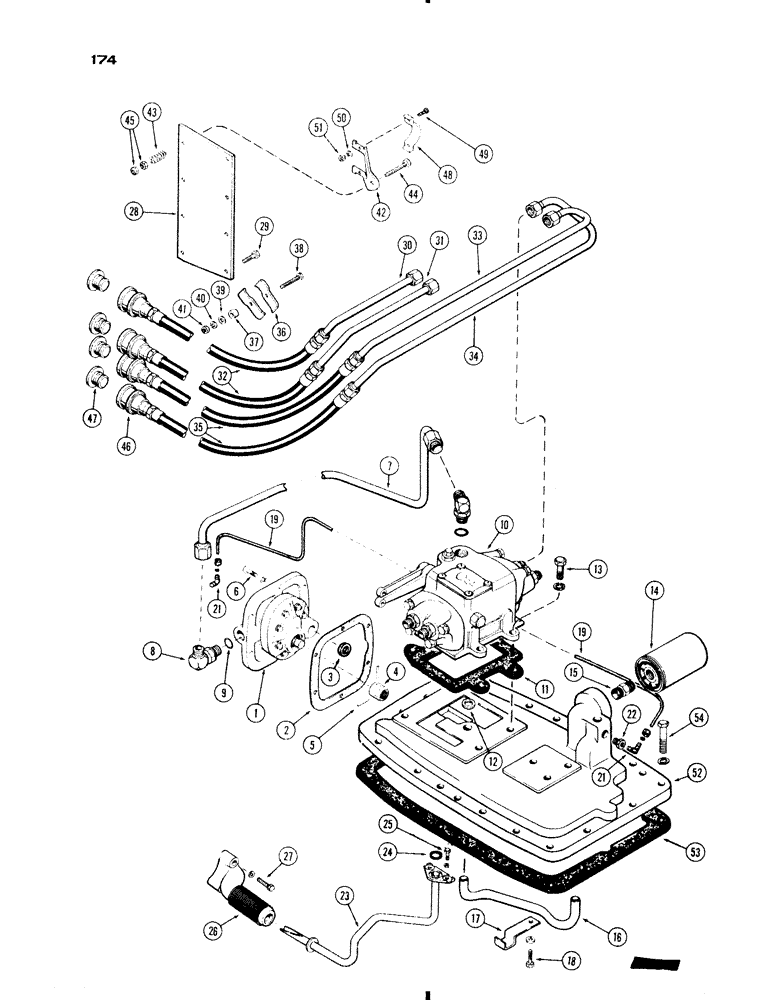

Запчасти Case IH 730 SERIES (174) - DRAFT-O-MATIC VALVES AND LINES, 730 GROVE (08) - HYDRAULICS

1

A34214

PUMP

PUMP ASSY. - hydraulic (See Figure 198) (Replaces A32048)

1шт.

1

AR34214

REMAN-HYD PUMP

730-Series Case Comfort King S/N 8253501 & After

1шт.

1

AC34214

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

A32096

GASKET

GASKET - hyd. pump

1шт.

3

A28264

GASKET

RING - sealing (1-3/16 x 1-9/16 x 7/32")

1шт.

4

A32097

COUPLING, BREAK AWAY

COUPLING - PTO shaft

1шт.

5

138-2011

PIN,1/8" x 1 1/4", Coiled

PIN, , coupling 1/8" x 1 1/4", Coiled

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Hyd. pump Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

7

A33936

TUBE

SPARE PART TUBE - hyd. pump to aux. valve

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, , Assy, Incl. Ref. 9 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - elbow (3/4 x 59/64 x 1/8")

1шт.

10

A34739

LOCK VALVE

VALVE ASSY. - auxiliary (see Figure 186) (Replaces A33937)

1шт.

11

A34138

GASKET

GASKET - auxiliary valve

1шт.

12

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

SEAL - auxiliary valve (21/32 x 29/32 x 9/64")

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, , Valve Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

14

A32297

HYDRAULIC OIL FILTER

FILTER - oil

1шт.

15

A33415

SPARE PART ADAPTER - oil filter

1шт.

16

A60007

TUBE

TUBE - auxiliary valve to filter (Replaces (A33394)

1шт.

17

A33935

CLIP - return tube

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, , Clip Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

19

A57352

TUBE

TUBE - lubrication, PTO (Replaces A34140)

1шт.

21

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ELBOW ASSY. - P.T.O. line (90 deg.)

2шт.

22

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING - reducing (3/8 x 1/4")

1шт.

23

A32340

TUBE

TUBE - hyd. oil return

1шт.

24

A32343

SEAL

SEAL - return tube (47/64 x 1-13/64 x 13/64")

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT - return tube (5/16 x 1" N.C. hex.)

2шт.

26

A32344

STRAINER ASSY.

STRAINER ASSY. - inlet elbow

1шт.

27

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

BOLT, , Elbow Hex, 5/16"-18 x 2", G5

2шт.

28

A33939

SPARE PART PLATE - coupling mtg.

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Plate Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

30

A33940

SPARE PART TUBE - hyd. coupling, R.H. rear

1шт.

31

A33941

SPARE PART TUBE - hyd. coupling, R.H. front

1шт.

32

A33944

SPARE PART HOSE - R.H. tubes (31" long)

2шт.

33

A33942

SPARE PART TUBE - hyd. coupling, L.H. rear

1шт.

34

A33943

TUBE - hyd. coupling, L.H., front

1шт.

35

A33945

SPARE PART HOSE - L.H. tubes (38" long)

2шт.

36

A33946

SPARE PART CLIP - hyd. lines

4шт.

37

A31132

SPARE PART SPACER - clip

2шт.

38

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

BOLT, , Clip Hex, 1/4"-20 x 2", G5

2шт.

39

95-4

WASHER,1/4"

WASHER - (5/16 x 3/4 x 1/16")

2шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

42

A27360

BRACKET

BRACKET - break-away coupling

4шт.

43

A26546

SPRING

SPRING - coupling brkt.

4шт.

44

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Bracket Hex, 3/8"-16 x 2", G5

4шт.

45

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - (3/8" N.C. half hex.)

8шт.

46

A28542

COUPLING, QUICK, FEM

COUPLING - break-away (See Figure 235A)

4шт.

47

A22768

PLUG

PLUG - dust, female coupling

4шт.

48

A27423

CLAMP

CLAMP - break-away coupling

8шт.

49

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

BOLT - clamp (#8 x 5/8" N.C. rd. hd.)

8шт.

50

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

8шт.

51

129-6

NUT,#8-32

NUT, #8-32

8шт.

52

A33929

COVER - transmission

1шт.

53

A32299

GASKET

GASKET - trans. cover

1шт.

54

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

BOLT, , Cover Hex, 1/2"-13 x 1 1/4", G5, Full Thd

13шт.
