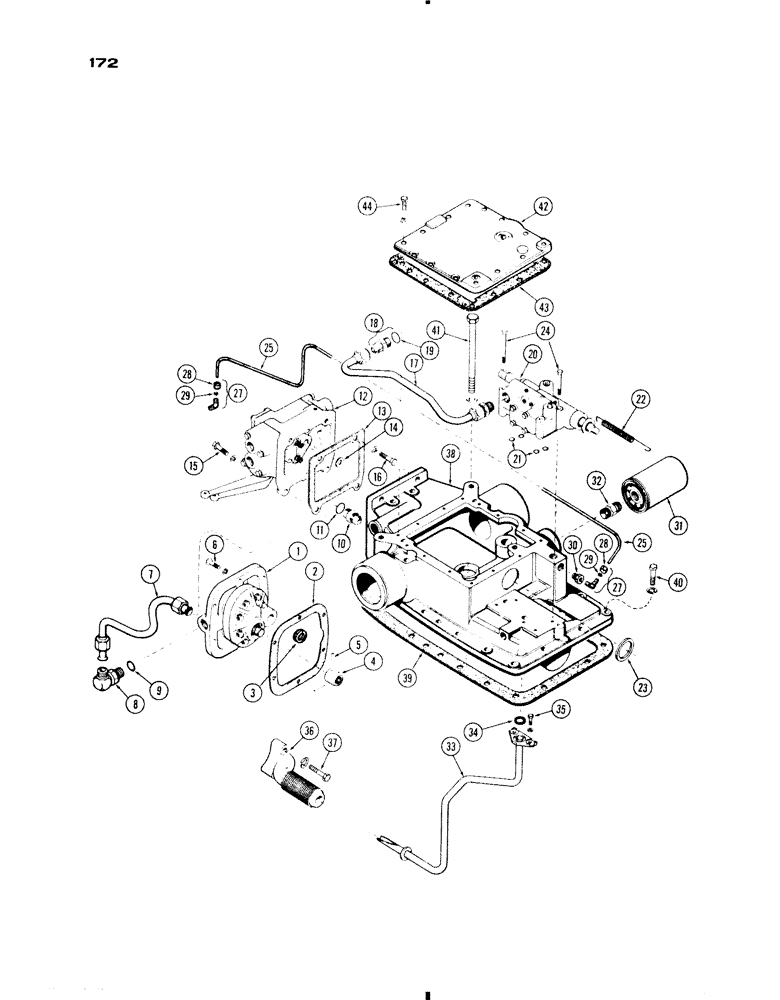

Запчасти Case IH 730 SERIES (172) - DRAFT-O-MATIC VALVES AND LINES, ALL 730 AND 830 EXCEPT GROVE (08) - HYDRAULICS

1

A34214

PUMP

PUMP ASSY. - hyd. (See Figure 198) (Replaces A32048)

1шт.

1

AR34214

REMAN-HYD PUMP

730 & 830 Series Case Comfort King S/N 8253501 & After

1шт.

1

AC34214

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

A32096

GASKET

GASKET - hyd. pump

1шт.

3

A28264

GASKET

RING - sealing (1-3/16 x 1-9/16 x 7/32")

1шт.

4

A32097

COUPLING, BREAK AWAY

COUPLING - hyd. pump

1шт.

5

138-2011

PIN,1/8" x 1 1/4", Coiled

PIN, , coupling to pump 1/8" x 1 1/4", Coiled

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Pump to housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

7

A33889

TUBE

TUBE - hyd., Serial Range: pump-housing

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, , Assy, Incl. Ref. 9 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - elbow (3/4 x 59/64 x 1/8")

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR ASSY., Includes: Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - connector (3/4 x 59/64 x 1/8")

1шт.

12

A57571

VALVE

VALVE ASSY. - auxiliary (See Figure 182) (1st used trans. ser. no. 2219218)

1шт.

12

A34699

VALVE

VALVE ASSY. - auxiliary (See Figure 183C) (Replaces A34069) (Used prior to trans. ser. no. 2219218)

1шт.

13

A32349

GASKET

GASKET - auxiliary valve

1шт.

14

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

SEAL - auxiliary valve (21/32 x 29/32 x 9/64")

1шт.

15

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

BOLT, , Valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, , Valve Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

17

A60007

TUBE

TUBE - housing to valve (Replaces A33394)

1шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY., Incl. Ref. 19

2шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O"RING - connector (3/4 x 59/64 x 1/8")

1шт.

20

A32978

VALVE

VALVE ASSY. - draft control (see figure 190)

1шт.

21

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O"RING - valve (1/2 x 11/16 x 3/32")

4шт.

22

A3206

SPRING - draft control valve

1шт.

23

A32307

SEAL

SEAL -, Serial Range: valve-housing

1шт.

24

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT, , Valve Hex, 5/16"-18 x 2 1/2", G5

3шт.

24

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

BOLT - hex, 5/16"-18 NC x 3-1/2", Valve

1шт.

25

A57352

TUBE

TUBE - PTO clutch lubricaiton (Replaces A34140)

1шт.

27

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ELBOW - PTO lub. line (90 deg.), Includes: Ref. 28 and 29

2шт.

28

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" O.D. tube)

1шт.

29

222-102

SLEEVE,1/4" Tube

SLEEVE, 1/4" Tube

1шт.

30

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING - reducing (3/8 x 1/4" )

1шт.

31

A32297

HYDRAULIC OIL FILTER

FILTER - hyd. oil

1шт.

32

A33415

SPARE PART ADAPTER - oil filter

1шт.

33

A32340

TUBE

TUBE - hyd. oil return

1шт.

34

A32343

SEAL

SEAL - return tube (47/64 x 1-13/64 x 13/64")

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Return tube Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

36

A32344

STRAINER ASSY.

STRAINER ASSY. - inlet elbow

1шт.

37

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

BOLT, , Strainer Hex, 5/16"-18 x 2", G5

2шт.

38

A34794

SPARE PART HOUSING ASSY. - (See Figure 176) (Replaces A33377)

1шт.

39

A32299

GASKET

GASKET - rockshaft housing, Includes: Ref. 40

1шт.

40

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, , Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

10шт.

40

13-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

BOLT - housing (1/2 x 5-3/4" N.C. hex.)

2шт.

41

15-8112

BOLT

BOLT - (de-luxe seat only) (1/2 x 7" N.C. hex.)

2шт.

41

15-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

BOLT - (std. seat only) (1/2 x 8-1/2" N.C. hex.)

2шт.

42

A33382

COVER

COVER - rockshaft housing

1шт.

43

A33383

GASKET

GASKET - housing cover

1шт.

44

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, , Cover Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

44

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

BOLT, , Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

9шт.
