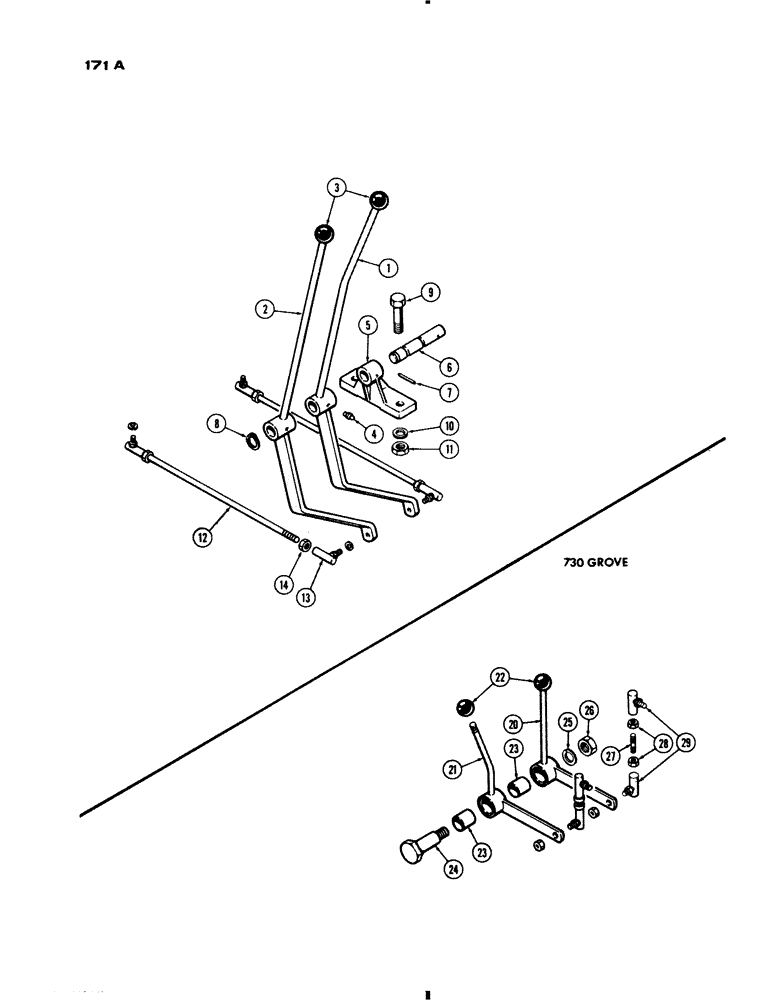

Запчасти Case IH 730 SERIES (171A) - AUXILIARY VALVE CONTROLS, ALL 730 AND 830 EXCEPT GROVE, AND 730 GROVE (08) - HYDRAULICS

1

A33420

LEVER - outer (Auxiliary valve)

1шт.

2

A33417

LEVER - inner (remote valve)

1шт.

3

A23885

KNOB

- valve levers

2шт.

4

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" P.T. str.)

2шт.

5

A24057

BRACKET - valve levers support

1шт.

6

A24056

PIN - pivot, valve levers

1шт.

7

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Pivot pin to bracket 3/16" x 1 1/4", Slotted

1шт.

8

A20202

RING

- snap, pivot pin ret.

1шт.

9

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

12

A32485

ROD - valve control linkage

2шт.

13

A27382

BALL

JOINT - control rod

4шт.

14

25-155

JAM NUT,Jam, 5/16"-24, G5

- ball joint (5/16" N.F. half hex.)

4шт.

20

A33922

LEVER - inner, auxiliary valve, 730 grove

1шт.

21

A33925

LEVER - outer, auxiliary valve, 730 grove

1шт.

22

A32845

KNOB - control levers, 730 grove

2шт.

23

A32869

BEARING

BUSHING - control levers, 730 grove

2шт.

24

A32846

BOLT - pivot, control levers, 730 grove

1шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 730 grove 5/8"

1шт.

26

25-1010

NUT,5/8"-11, G5

730 grove 5/8"-11, G5

1шт.

27

A33928

STUD - valve link (5/16" N.F. x 1-3/8"), 730 grove

2шт.

28

25-155

JAM NUT,Jam, 5/16"-24, G5

- stud lock (5/16" N.F. half hex.), 730 grove

4шт.

29

A27382

BALL

JOINT ASSY. - ball, 730 grove

4шт.
