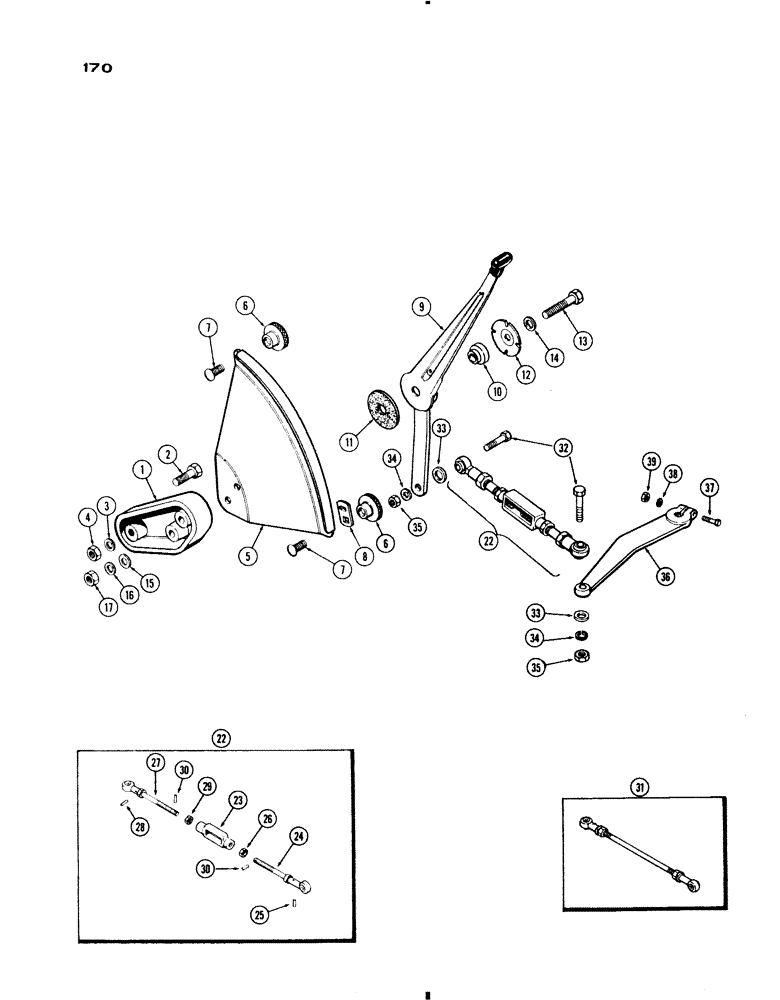

Запчасти Case IH 730 SERIES (170) - DRAFT VALVE CONTROLS, ALL 730 AND 830, EXCEPT GROVE (08) - HYDRAULICS

1

A33416

BRACKET - quadrant mounting

1шт.

2

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Bracket Hex, 3/8"-16 x 2 1/4", G5

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

5

A32993

QUADRANT - draft control

1шт.

6

G15951

NUT

- limit, draft control

2шт.

7

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Lock, limit nut Short NK, 3/8"-16 x 1", G2

2шт.

8

G15950

STOP

- draft control handle

1шт.

9

A32359

LEVER ASSY. - draft control

1шт.

10

G26947

BUSHING - control lever

1шт.

11

G10786

DISC

- friction

1шт.

12

G49412

WASHER

- spring pressure

1шт.

13

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Control lever Hex, 1/2"-13 x 3 1/4", G5

1шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

195-2051

WASHER,17/32" x 13/16" x .060"

- (HI-CLR. only) (17/32 x 13/16 x 16 Ga.)

2шт.

16

92-8

LOCK WASHER,1/2"

1шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

22

A57224

NUT

ROD ASSY. - draft control linkage, Includes: Ref. 23 - 30, Start Serial: 8308965

1шт.

23

NSS

NOT SOLD SEPARAT

TURNBUCKLE

1шт.

24

A57694

END

ASSY. - w/rod (left hand thread)

1шт.

25

138-54

LOCK PIN,1/8" x 9/16", Slotted

PIN, , Rod to end 1/8" x 9/16", Slotted

1шт.

26

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

1шт.

27

A57695

END

ASSY. - w/rod (right hand thread)

1шт.

28

138-54

LOCK PIN,1/8" x 9/16", Slotted

PIN, , Rod to end 1/8" x 9/16", Slotted

1шт.

29

129163

NUT - lock (3/8" N.F. hex., w/R.H. thread

1шт.

30

138-53

LOCK PIN,1/8" x 1/2", Slotted

PIN, , rod retaining 1/8" x 1/2", Slotted

2шт.

31

A34093

X

ROD ASSY. - draft control linkage rod (rod w/L.H. & R.H. thrds.) (Order A57224), Serial Range: -8308965

1шт.

31

A32396

ROD ASSY. - draft control linkage rod (rod w/R.H. threads) (Order A57224), Serial Range: -8308965

1шт.

32

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

33

A32392

SPACER - draft control lever (25/64 x 9/16 x 1/16")

1шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

36

A32399

ARM

- draft control

1шт.

37

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- arm (5/16 x 1-3/4" N.C. hex)

1шт.

38

92-5

LOCK WASHER,5/16"

1шт.

39

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.
