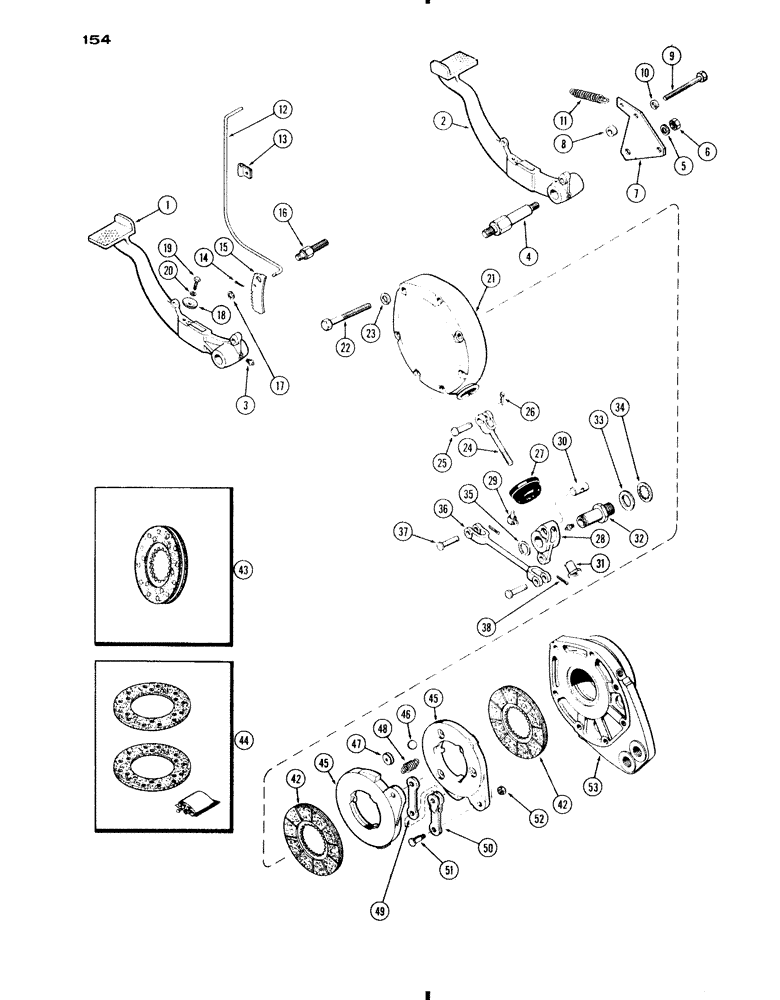

Запчасти Case IH 730 SERIES (154) - BRAKES AND CONTROLS, 730 GROVE (07) - BRAKES

1

A10194

PEDAL - brake, R.H.

1шт.

2

A10195

PEDAL - brake, L.H.

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

4

A8414

STUD - brake pedal pivot

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

2шт.

7

A8415

PLATE - pedal support

2шт.

8

A28893

BUSHING

SPACER - plate

4шт.

9

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Plate Hex, 1/2"-13 x 4 1/2", G5

2шт.

9

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

Plate Hex, 1/2"-13 x 5 1/2", G5

2шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

A27688

VALVE SPRING

SPRING - pedal return

2шт.

12

A10198

HANDLE ASSY. - release, R.H., Includes: Ref. 13

1шт.

12

A10199

HANDLE ASSY. - release, L.H., Includes: Ref. 13

1шт.

13

A8422

CLIP - release handle

2шт.

14

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

15

A8418

RATCHET - parking brake

2шт.

16

A8419

STUD - ratchet pivot

2шт.

17

A26828

RING

- snap, ratchet ret.

2шт.

18

A27698

GASKET

PAWL - parking brake

2шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pawl Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A26353

COVER - brake

2шт.

22

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Cover Hex, 1/2"-13 x 3 3/4", G5

8шт.

22

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

Cover Hex, 1/2"-13 x 4 3/4", G5

6шт.

23

92-8

LOCK WASHER,1/2"

14шт.

24

A28203

ROD

- brake pull

2шт.

25

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, brake pull rod

2шт.

26

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

27

A27465

CAP

- dust (rubber)

2шт.

28

A8411

LEVER - brake

2шт.

29

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 45 deg.)

2шт.

30

A27687

HARDWARE

TRUNNION - brake pull rod

2шт.

31

A27686

NUT

- pull rod adj.

2шт.

32

A8416

STUD - lever pivot

2шт.

33

A26401

WASHER - stud

2шт.

34

193-38

LOCK WASHER,1 1/8"

WASHER - stud (1-1/8" int. skpf.)

2шт.

35

A8417

RING, SNAP

RING - snap, lever ret.

2шт.

36

A28066

ROD - brake control

2шт.

37

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, control rod

4шт.

38

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

42

A40794

DISC

ASSY. - middle, w/bonding lining, Includes: Ref. 44, Start Serial: 8280138

4шт.

43

A30180

X

DISC ASSY - middle, w/riveted lining (Order A40794), Includes: Ref. 44, Serial Range: -8280138

4шт.

44

A30182

LINING

KIT - middle disc, w/rivets

1шт.

45

A31126

DISC

- brake actuating

4шт.

46

211-15

BALL,5/8" Dia

- actuating, () 5/8" Dia

6шт.

47

A31125

INSERT

- ball seat

12шт.

48

A30897

SPRING

- disc tension

6шт.

49

A31119

LINK

- actuating disc. (single)

2шт.

50

A31120

LINK

- actuating disc. (dual)

2шт.

51

A31121

STEP BOLT

BOLT - actuating disc

4шт.

52

25-156

JAM NUT,Jam, 3/8"-24, G5

- (3/8" N.F. half hex.)

4шт.

53

A8410

CARRIER - (See differential)

2шт.
