(195A) - POWER TAKE-OFF DRIVE

Запчасти Case IH 730 SERIES (195A) - POWER TAKE-OFF DRIVE (06) - POWER TRAIN

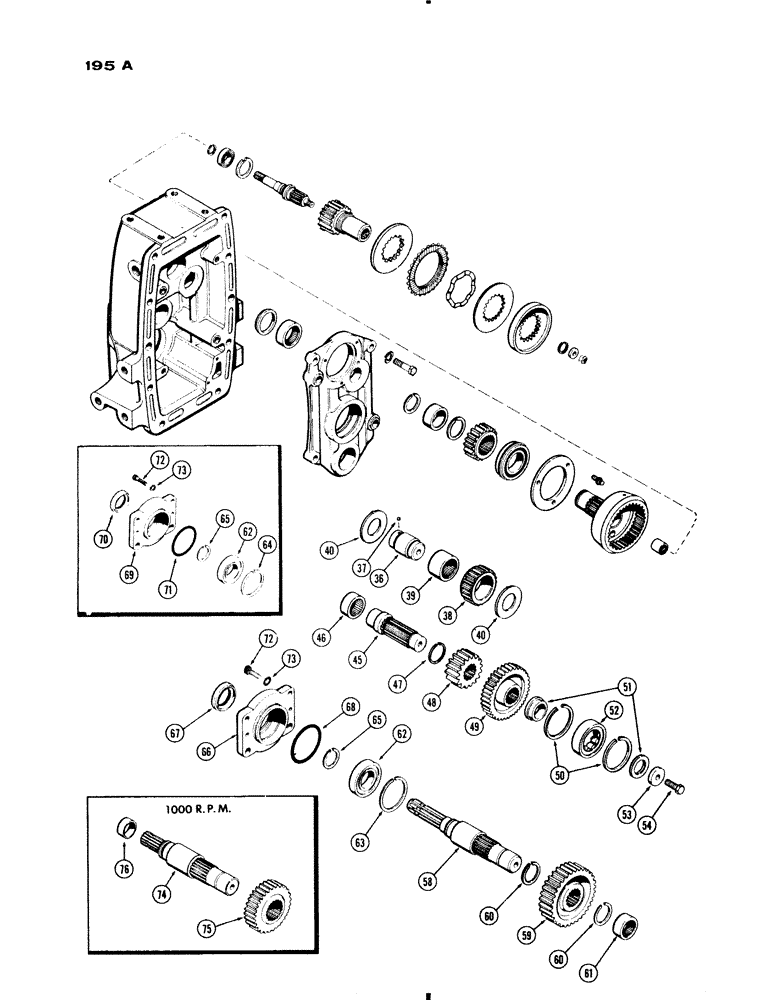

Схема запчастей Case IH 730 SERIES - (195A) - POWER TAKE-OFF DRIVE (06) - POWER TRAIN
51
52
40
37
65
72
65
53
54
62
64
68
75
70
39
71
69
61
60
45
72
38
73
67
36
66
73
76
49
63
62
60
58
59
50
47
46
74
48
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

36

A32400

SHAFT - upper idler gear (Cont'd. From Figure 194)

1шт.

37

211-7

BALL,1/4" Dia

- idler shaft 1/4" Dia

1шт.

38

A34136

GEAR

- upper idler (25 ext. teeth) (2.376" I.D.) (See A32402 before ordering), Includes: Ref. 39

1шт.

39

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING - needle (Torrington WJ-323824) (2.376" O.D.) (See A32404 before ordering)

1шт.

38

A32402

X

GEAR ASSY. - upper idler (25 ext. teeth) (2.375" I.D.) (Order 1-A34136 & 1-A34137)

1шт.

39

A32404

X

BEARING - needle (Torrington B-3324) (2.375 O.D.) (Order 1-A34136 & 1--A34137)

1шт.

40

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

- thrust, idler gear

2шт.

45

A32405

SHAFT

- lower idler & PTO drive

1шт.

46

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, lower idler shaft

1шт.

47

A7339

RING

- snap, driven pinion ret.

1шт.

48

A32410

PINION

- driven (1000 RPM) (30 ext. teeth)

1шт.

48

NLS

NO LONGER SERVICED

PINION - driven (540 RPM) (21 ext. teeth)

1шт.

49

A32408

GEAR

- lower idler (36 est. teeth)

1шт.

50

A32422

SNAP RING,2.36mm Thk, Int

RING - snap, brg. ret.

2шт.

51

A32409

BEARING

RACE ASSY.

1шт.

52

A32423

BEARING ASSY

BEARING - roller

1шт.

53

A57462

WASHER

- (17/32 x 1-7/8 x 3/8") (Replaces A32427)

1шт.

54

121-415

BOLT,Hex, 1/2" x 1"

- ret. washer (1/2 x 1" N.C. hex., spec.)

1шт.

58

A57171

SHAFT

- PTO output (540 RPM) (6 spline, 13-5/8" long) (Replaces A32411)

1шт.

59

A32420

GEAR - PTO drive (540 RPM) (40 ext. teeth)

1шт.

60

A32413

SNAP RING,#212, 1.997", Ext

RING - snap, drive gear ret.

2шт.

61

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

BEARING - needle, output shaft, front

1шт.

62

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARNG - ball, output shaft, rear

1шт.

63

A57921

SNAP RING,3.346", Int, #334

RING - snap, , rear brg, inner, Internal Truarc (7/64" thick), used w/A57922 carrier, 1st used trans. s/n 2235955 3.346", Int, #334

1шт.

64

A32417

RING, SNAP

RING - snap, rear brg. ret., inner (Internal) (1/16" thick) (Used w/A32414 carrier) (Used prior to trans. ser. no. 2235955)

1шт.

65

A27085

RING

- snap, rear brg. ret., outer (Replaces A32412)

1шт.

66

A57922

CARRIER

ASSY. - output shaft brg. (Used w/A57921 Snap Ring) (See Ref. 63) (1st used trans. ser. no. 2235955), Includes: Ref. 67

1шт.

67

A57708

SEAL

- oil (1-3/4 x 2-1/2 x 1/2")

1шт.

68

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

"O"RING - (3-7/8 x 4-1/8 x 1/8")

1шт.

69

A32414

CARRIER

ASSY. - output shaft bearing (Used w/A32417 Snap Ring) (See Ref. 64) (Order 1-A57922 Carrier & 1-A57921 Snap Ring) (Used prior to trans. ser. no. 2235955), Includes: Ref. 70

1шт.

70

A57708

SEAL

- oil (1-3/4 x 2-1/2 x 1/2") (Replaces A32416)

1шт.

71

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

"O"RING - brg. carrier (3-7/8 x 4-1/8 x 1/8")

1шт.

72

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT - brg. carrier (3/8 x 1" N.C., 12 pt. hd.)

2шт.

73

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

74

A57172

SHAFT

- PTO output (1000 RPM) (21 spline, 11-5/8" long) (Replaces A32418)

1шт.

75

A32421

GEAR WHEEL

GEAR - PTO drive (1000 RPM) (31 ext. teeth)

1шт.

76

A32419

SLEEVE CYLINDER

SLEEVE - oil seal (1000 RPM only) (1-5/8 x 1-3/4 x 5/8")

1шт.
