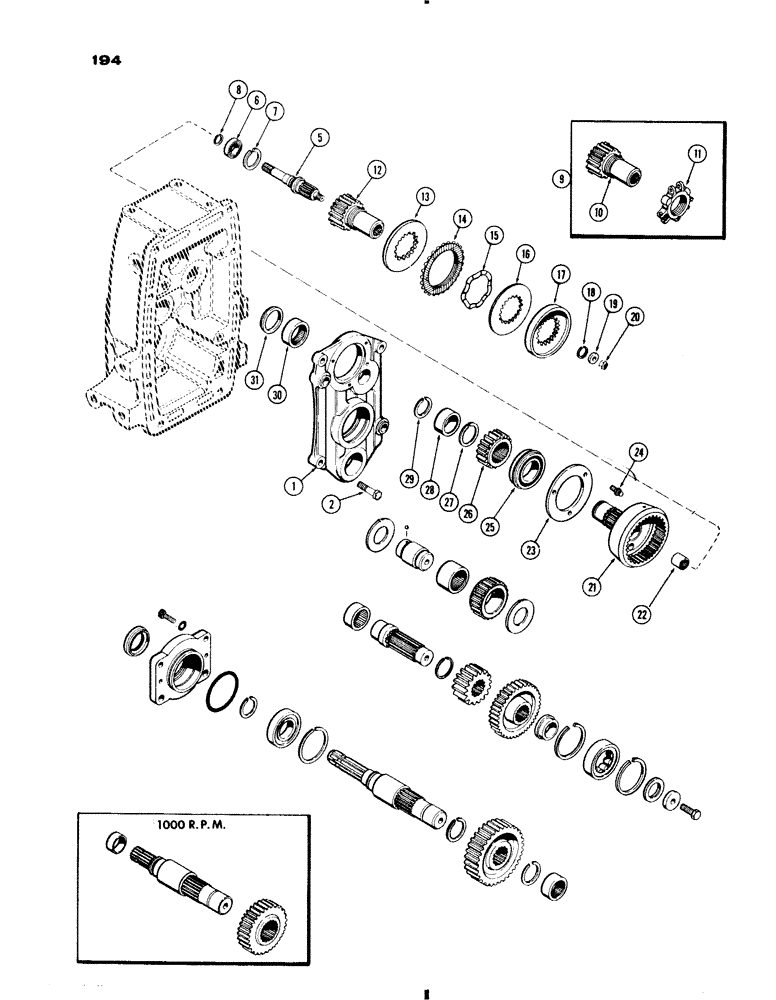

Запчасти Case IH 730 SERIES (194) - POWER TAKE-OFF DRIVE (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

HOUSING - PTO brg. carrier (see Figure 192)

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Brg. carrier Hex, 1/2"-13 x 2", G5

2шт.

5

A32436

SHAFT

- hvd. pump drive

1шт.

6

A32437

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING - ball, clutch drum, inner

1шт.

7

A32439

RING

- snap, brg. ret., inner

1шт.

8

A32438

SNAP RING

RING - snap, brg. ret., outer

1шт.

9

A34876

HUB CAP

HUB ASSY. - (See Ref. 12), Includes: Ref. 10 and 11, Start Serial: 8302483

1шт.

10

A34874

HUB

- clutch (w/left hand thread) (See Ref. 12)

1шт.

11

A34851

JAW

YOKE - clutch adj. (w/left hand thread)

1шт.

12

A32440

HUB

- PTO clutch (w/right hand thread) (for trac. w/P.T.O. order A34876) (for trac. w/out P.T.) (order A34874), Serial Range: -8302483

1шт.

13

A7101

PLATE

- clutch backing

1шт.

14

A33012

PLATE ASSY.

PLATE - clutch friction (24 ext. teeth)

5шт.

15

A27591

VALVE SPRING

SPRING - clutch plate

5шт.

16

A57170

BRAKE DISC

PLATE - clutch, steel (17 int. teeth) (Replaces A7102)

4шт.

17

A33013

PLATE

- clutch pressure

1шт.

18

A32441

RING, SNAP

RING - snap, drive shaft washer stop

1шт.

19

A32450

WASHER

- hvd. pump drive shaft

1шт.

20

131-590

LOCK NUT

NUT - washer ret. (3/8" N.C. Flexloc)

1шт.

21

A34608

DRUM

ASSY. - PTO clutch (replaces A32428), Includes: Ref. 22

1шт.

22

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, clutch drum, inner

1шт.

23

A59019

RING

- clamp, outer brg. ret. (Replaces A32434)

1шт.

24

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

BOLT - clamp ring (5/16 x 3/4" N.C., 12 pt. hd.)

3шт.

25

A33537

BALL BEARING,54.99mm ID x 90mm OD x 18mm W

BEARING - ball, clutch drum, outer

1шт.

26

A32435

GEAR

PINION - PTO driver

1шт.

27

A32413

SNAP RING,#212, 1.997", Ext

RING - snap, pinion ret.

1шт.

28

A33320

NEEDLE BEARING,1.8125" ID x 2.0625" OD x 1.01"

RACE - outer needle brg.

1шт.

29

A33323

RING

- snap, outer brg. race ret.

1шт.

30

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING - needle, clutch drum, outer

1шт.

31

A33007

RING

- oil restrictor

1шт.
