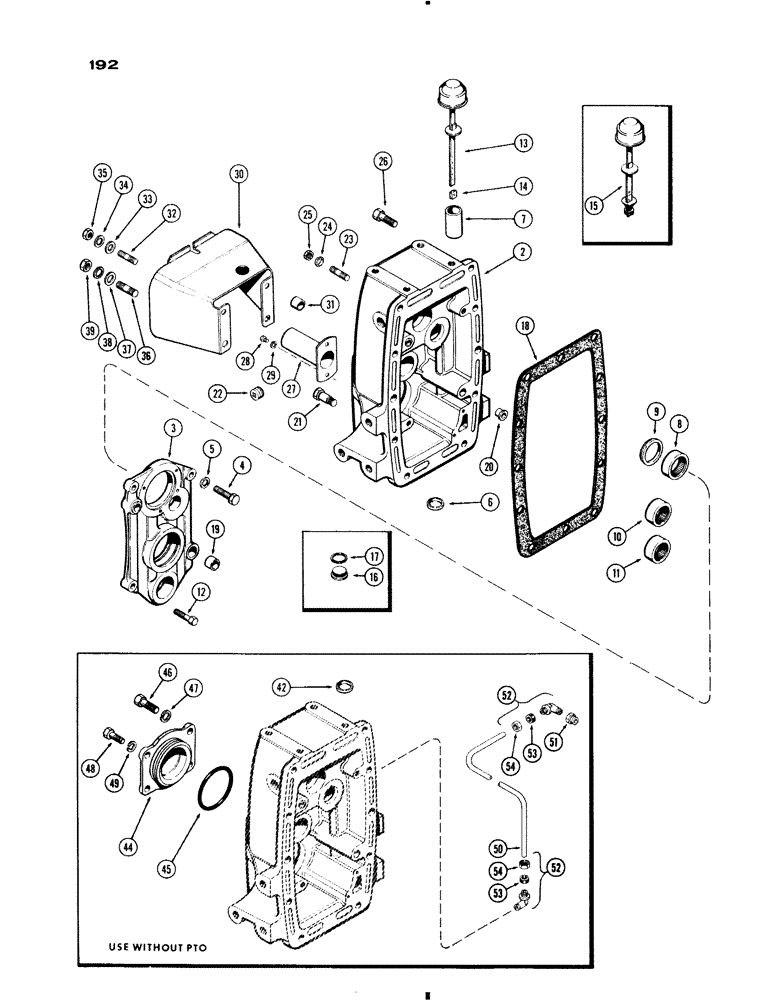

Запчасти Case IH 730 SERIES (192) - POWER TAKE-OFF HOUSING, AND USED W/OUT P.T.O. (06) - POWER TRAIN

A32596

HOUSING ASSY. - P.T.O. (not illust.) (Replaces A33228), Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. (Order A32596)

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. brg. carrier (Order A32596)

1шт.

4

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

2шт.

5

92-8

LOCK WASHER,1/2"

2шт.

6

41-1620

PLUG,Cup, 1 1/4", Stainless

- hsg. (1-17/64" cup type) (See Refs. 16 & 17) (Order 41-1020), Start Serial: 8284131

1шт.

7

A22991

TUBE - oil filler

1шт.

8

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING - needle, clutch drum, outer

1шт.

9

A33007

RING

- oil restrictor

1шт.

10

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, lower idler shaft

1шт.

11

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

BEARING - needle, output shaft, front

1шт.

12

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

13

A34807

DIPSTICK

BREATHER ASSY. - w/dipstick (adjustable), Includes: Ref. 14, Start Serial: 8298029

1шт.

14

A34806

CLIP

- dipstick indicator

1шт.

15

A33008

X

BREATHER ASSY. - w/dipstick (non-adj. magnetic) (Order A34807), Serial Range: -8298029

1шт.

16

A33908

PLUG - hsg., Serial Range: -8284131

1шт.

17

A33907

GASKET - plug, Serial Range: -8284131

1шт.

18

A32461

GASKET

- PTO hsg. to trans. case

1шт.

19

A50011

SLEEVE

- brg. carrier dowel (17/32 x 3/4 x 17/32")

2шт.

20

A32426

BUSHING

SPACER - dowel sleeve

2шт.

21

A32462

BOLT

- sleeve (5/8" N.C. x 1-13/16" spec.)

2шт.

22

221-845

PLUG,Hex Soc, 3/4"-14

- PTO hsg. (3/4" P.T., sckt. hd.)

1шт.

23

A29396

STUD

- (5/8" N.F./N.C, x 2-7/8")

2шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

2шт.

26

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

27

A32456

GUARD - output shaft

1шт.

28

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Guard Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

A28258

GUARD

SHIELD - output shaft

1шт.

31

B18239

SPACER,3/4" Pipe x 3/4"

- shield () (Replaces A57650) 3/4" Pipe x 3/4"

4шт.

32

A32277

STUD - brg. carrier (1/2" N.C. x 3-1/8")

2шт.

33

195-33

WASHER,1/2"

- (17/32 x 1-1/16 x 3/32")

2шт.

34

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

35

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

36

A32276

STUD - brg. carrier (5/8" N.C. x 3-1/2")

2шт.

37

195-41

WASHER,5/8"

2шт.

38

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

39

25-1010

NUT,5/8"-11, G5

2шт.

42

A33045

PLUG

- L.H. side (Order 41-1024), used w/out P.T.O.

1шт.

44

A33312

COVER - output shaft, used w/out P.T.O.

1шт.

45

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

"O"RING - cover (3-7/8 x 4-1/8 x 1/8"), used w/out P.T.O.

1шт.

46

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover, used w/o PTO Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

47

92-8

LOCK WASHER,1/2"

used w/out P.T.O. 1/2"

2шт.

48

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Cover, used w/out PTO Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

49

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/o PTO 5/8"

2шт.

50

A57352

TUBE

- P.T.O. clutch lubrication, used w/out

1шт.

51

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING - lube tube (in rockshaft hsg.) (3/8" to 1/4"), used w/out P.T.O.

1шт.

52

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - lube tube, Includes: Ref. 53 and 54, used w/out P.T.O.

2шт.

53

222-102

SLEEVE,1/4" Tube

Used w/o PTO 1/4" Tube

1шт.

54

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" O.D. tube), used w/out P.T.O.

1шт.
