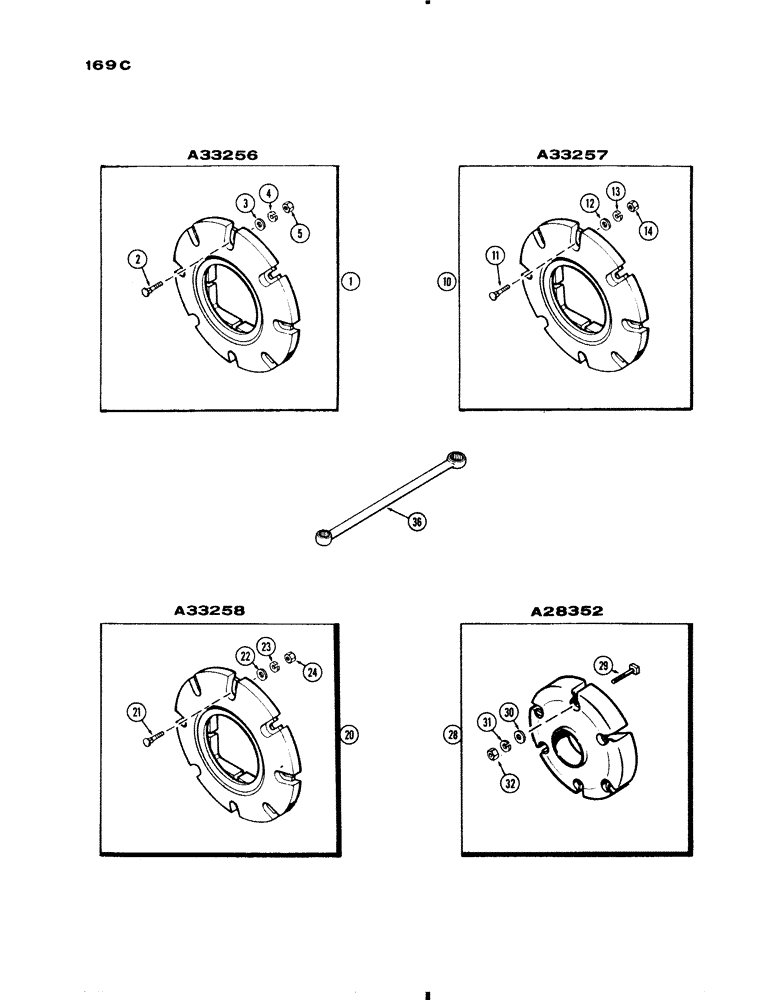

Запчасти Case IH 730 SERIES (169C) - REAR WHEEL WEIGHTS, GENERAL PURPOSE AND 4 WHEEL WETERN, 730 GROVE (06) - POWER TRAIN

1

A33256

WEIGHT SET - (For 34" wheels) (mach. item), Includes: Ref. 2 - 5

1шт.

2

11-1056

BOLT - (5/8 x 3-1/2" N.C. carr.) Short NK, 5/8"-11 x 3 1/2", G2

8шт.

2

9602207

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5

BOLT - (5/8 x 4-1/2" N.C. carr.)

8шт.

2

11-1088

BOLT (MACHINE)

BOLT - (5/8 x 5-1/2" N.C. carr.)

8шт.

3

95-10

WASHER,5/8"

- (11/16 x 1-3/4 x 9/64")

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

25-1010

NUT,5/8"-11, G5

8шт.

10

A33257

WEIGHT SET (For 38" wheels) (mach. item), Includes: Ref. 11 - 14

1шт.

11

11-1088

BOLT (MACHINE)

BOLT - (5/8 x 5-1/2" N.C. carr.)

8шт.

11

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - (5/8 x 4" N.C. carr.)

8шт.

11

11-1080

BOLT - (5/8 x 5" N.C. carr.)

8шт.

12

95-10

WASHER,5/8"

- (11/16 x 1-3/4 x 9/64")

8шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

25-1010

NUT,5/8"-11, G5

8шт.

20

A33258

BOLT

WEIGHT SET - (additional weights) (mach. item)

1шт.

21

411-1064

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2

BOLT - (5/8 x 4" N.C. carr.)

8шт.

22

95-10

WASHER,5/8"

- (11/16 x 1-3/4 x 9/64")

8шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

24

25-1010

NUT,5/8"-11, G5

8шт.

28

A28352

WEIGHT SET - (machinery item), 4 wheel western - 730 grove, Includes: Ref. 29 - 32

1шт.

29

17-1272

BOLT (MACHINE)

BOLT - (3/4 x 4-1/2" N.C. sq. hd.), 4 wheel western - 730 grove

6шт.

30

A26543

WASHER - (25/32 x 1-9/16 x 10 Ga.), 4 wheel western - 730 grove

6шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , 4 wheel western - 730 grove 3/4"

6шт.

32

25-1012

NUT,3/4"-10, G5

4 wheel western - 730 grove 3/4"-10, G5

6шт.

36

A8696

WRENCH - rear wheel hub & rim socket, 4 wheel western - 730 grove

1шт.
