Запчасти Case IH 730 SERIES (169A) - REAR WHEELS W/38" RIMS, 3" AXLE, 48" TO 88", MANUAL ADJUSTABLE, GEN. PURP. & HI-CLEAR (06) - POWER TRAIN

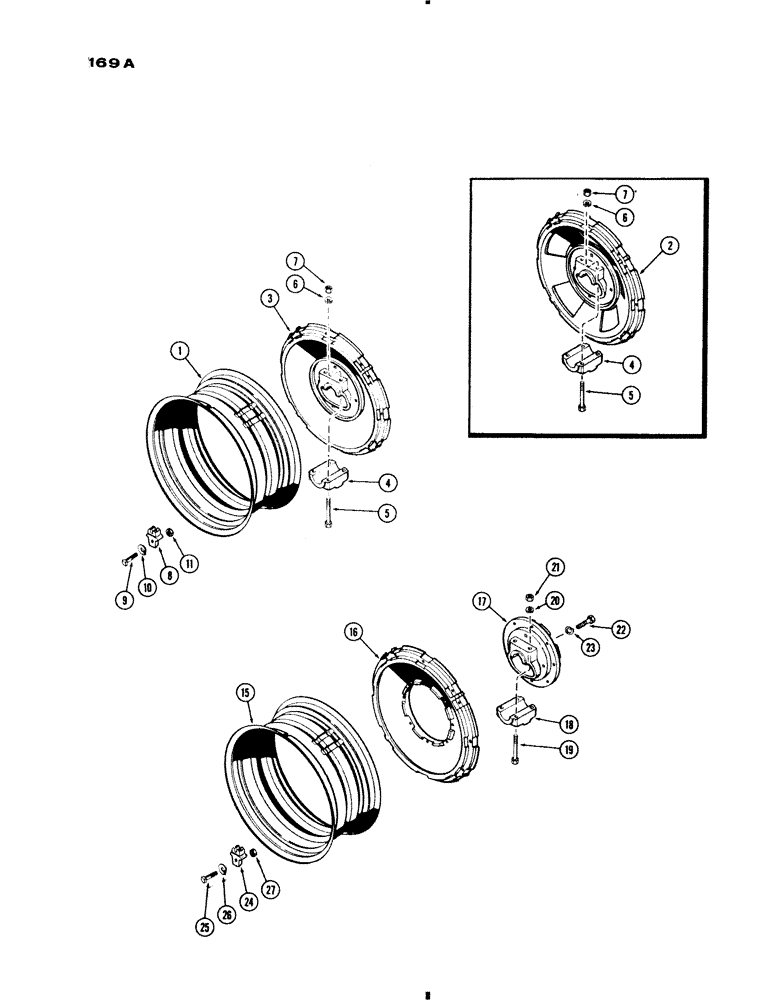

Схема запчастей Case IH 730 SERIES - (169A) - REAR WHEELS W/38" RIMS, 3" AXLE, 48" TO 88", MANUAL ADJUSTABLE, GEN. PURP. & HI-CLEAR (06) - POWER TRAIN
25
6
10
6
2
23
5
20
17
9
22
4
7
18
3
8
24
5
27
19
7
26
1
11
21
4
36
15

Артикул

Название

Примечание

Количество

1

A33224

RIM

- (takes 13.6 x 38 tire) (Gen. Purp.)

2шт.

1

A34102

RIM

- (takes 18.4 x 38 tire) (Hi-Clr)

2шт.

1

A33223

RIM

- (takes 14.9 x 38 or 15.5 x 38 tire) (Gen. Purp. & Hi. Clr.)

2шт.

2

A34803

WHEEL

ASSY. - standard hub (spoke type) (incl. Refs. 4 thru 7) (casting #A34801)

2шт.

3

A33233

WHEEL

ASSY. - standard hub (solid) (Order A34803) (incl. Refs. 4 thru 7) (Casting #A33222)

2шт.

4

A26351

CLAMP - hub

1шт.

5

A22389

WHEEL BOLT

BOLT - clamp (7/8 x 7-1/2" N.F. hex.)

4шт.

6

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

7

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex)

4шт.

8

A57654

CLAMP

- rim to wheel (Replaces A33169)

16шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp (3/4 x 3-1/2" N.C. sq. hd.)

16шт.

10

134799

WASHER - lock, clamp bolt (Replaces A34161)

16шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- (3/4" N.C. hex.)

16шт.

15

A34102

RIM

- (takes 18.4 x 38 tire) (Hi-Clr.)

2шт.

15

A33223

RIM

- (takes 14.9 x38 or 15.5 x 38 tire)

2шт.

16

A33174

WHEEL

- universal hub

2шт.

17

A22646

HUB ASSY. - universal, Includes: Ref. 18 - 21

2шт.

18

A26351

CLAMP - hub

1шт.

19

A22389

WHEEL BOLT

BOLT - clamp (7/8 x 7-1/2" N.F. hex)

4шт.

20

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

21

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

22

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Hub to wheel Hex, 5/8"-11 x 2 1/2", G5

16шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

24

A57654

CLAMP

- rim to wheel (Replaces A33169)

16шт.

25

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp (3/4 x 3-1/2" N.C., sq. hd.)

16шт.

26

A34799

LOCK WASHER

- lock, clamp bolt (Replaces A34161)

16шт.

27

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- (3/4" N.C. hex)

16шт.

Выбрано товаров: 27
