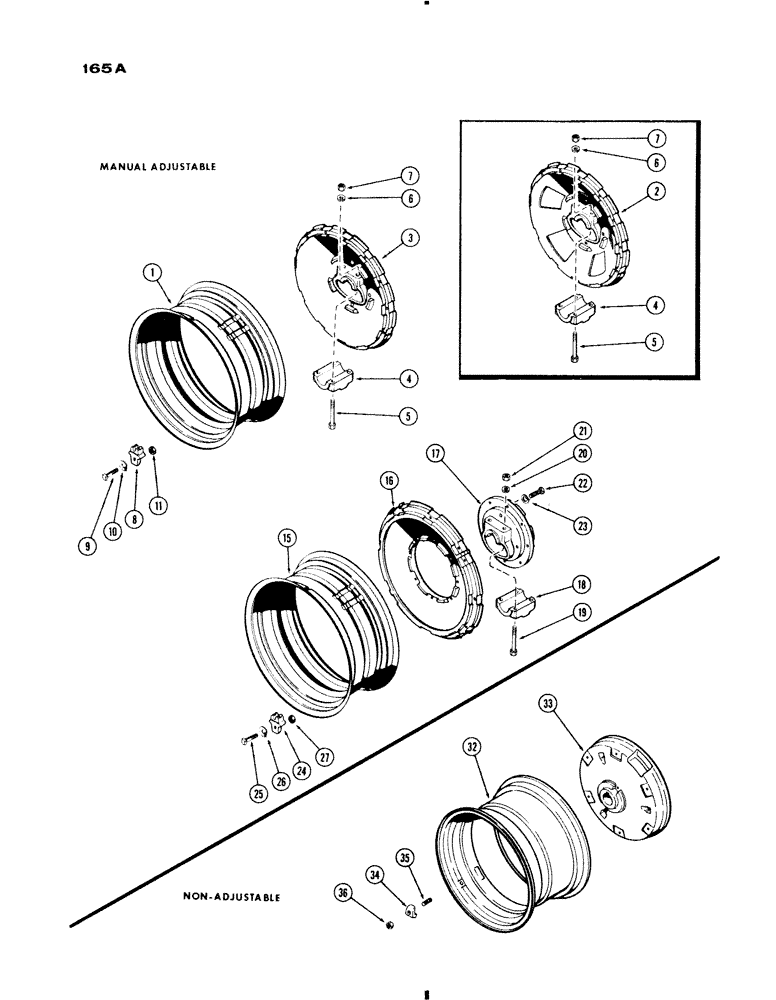

Запчасти Case IH 730 SERIES (165A) - REAR WHEELS W/34" RIMS, 3" AXLE 48" TO 88", MANUAL ADJUST, GEN PURP., AND NON ADJUST 4 WHEEL & WEST (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A57045
RIM
- (takes 16.9 x 34 or 18.4 x 34 tire) (Replaces A33168)
2шт.
2
A34669
WHEEL ASSY. - standard hub (spoke type) (incl. Refs. 4 thru 7) (Casting #A34652)
2шт.
3
A33232
WHEEL ASSY. - standard hub (solid) (Order A34669) (incl. Refs. 4 thru 7) (Casting A33221)
2шт.
4
A26351
CLAMP - hub
1шт.
5
A22389
WHEEL BOLT
BOLT - hub clamp (7/8 x 7-1/2" N.F. hex.)
4шт.
6
92-14
LOCK WASHER,7/8"
WASHER, LOCK, 7/8"
4шт.
7
25-1114
NUT,7/8"-14, G5
- (7/8" N.F. hex.)
4шт.
8
A57654
CLAMP
- rim to wheel (Replaces A33169)
12шт.
9
117-602
X
BOLT - clamp (3/4 x 3-1/2" N.C., sq. hd.)
12шт.
10
A34799
LOCK WASHER
- lock, clamp bolt (Replaces A34161)
12шт.
11
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
- clamp bolat (3/4" N.C. hex.)
12шт.
15
A57045
RIM
- (takes 16.9 x 34 or 18.4 x 34 tire) (Replaces A33168)
2шт.
16
A33172
WHEEL
- universal hub
2шт.
17
A22646
HUB ASSY. - universal
2шт.
18
A26351
CLAMP - hub
1шт.
19
A22389
WHEEL BOLT
BOLT - hub clamp (7/8 x 7-1/2" N.F. hex.)
4шт.
20
92-14
LOCK WASHER,7/8"
WASHER, LOCK, 7/8"
4шт.
21
25-1114
NUT,7/8"-14, G5
- (7/8" N.F. hex.)
4шт.
22
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
Hub to wheel Hex, 5/8"-11 x 2 1/2", G5
16шт.
24
A57654
CLAMP
- rim to wheel (Replaces A33169)
12шт.
25
117-602
X
BOLT - clamp (3/4 x 3-1/2" N.C. hex.)
12шт.
26
A34799
LOCK WASHER
- lock, clamp bolt (Replaces A34161)
12шт.
27
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
- (3/4" N.F. hex.)
12шт.
32
A10693
RIM
- (takes 18.4 x 34 tire), non-adjustable 4 wheel and western
2шт.
33
A33735
WHEEL - center, non-adjustable 4 wheel and western
2шт.
34
F62001
CLAMP
- rim to center wheel, non-adjustable 4 and western
16шт.
35
A27179
STUD
- clamp (5/8" N.C. x 2-3/8"), non-adjustable 4 wheel and western
16шт.
36
A27183
NUT
- (5/8" N.C. hex., spec.), non-adjustable 4 wheel and western
16шт.
Выбрано товаров: 29
