Запчасти Case IH 730 SERIES (164) - REAR WHEELS W/34" RIMS, 3" AXLE, 48" TO 88", POWER ADJUSTABLE, GENERAL PURPOSE (06) - POWER TRAIN

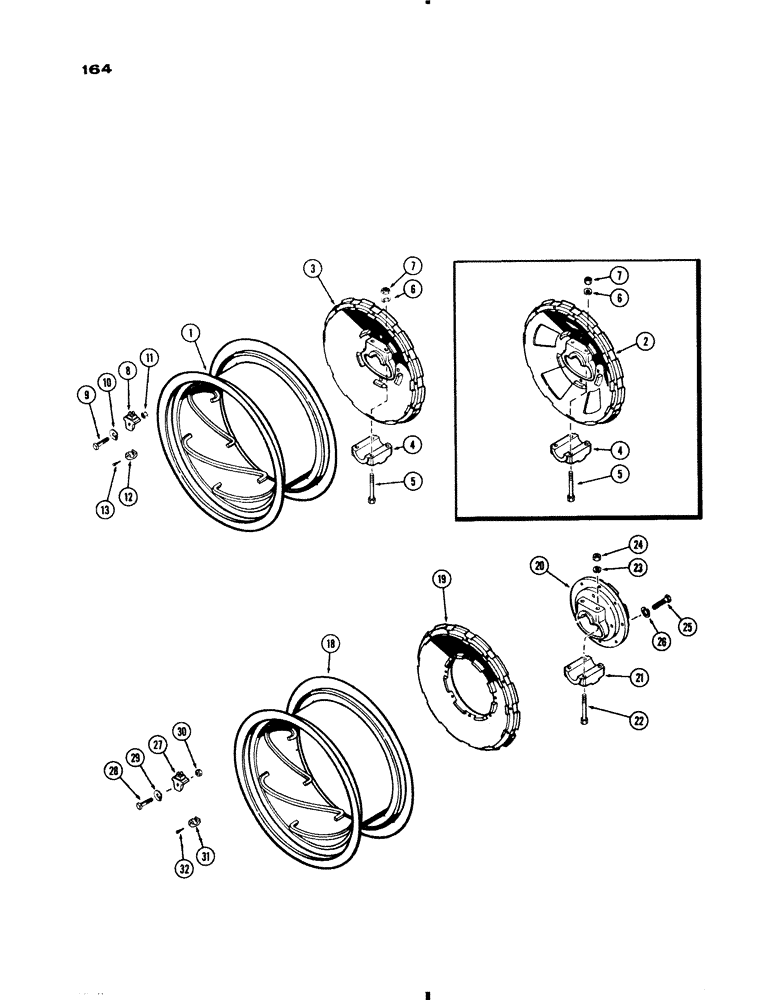

Схема запчастей Case IH 730 SERIES - (164) - REAR WHEELS W/34" RIMS, 3" AXLE, 48" TO 88", POWER ADJUSTABLE, GENERAL PURPOSE (06) - POWER TRAIN
12
19
5
10
18
5
6
2
4
13
9
1
4
26
20
23
22
31
3
29
30
7
27
24
6
11
25
32
7
28
8
21

Артикул

Название

Примечание

Количество

1

A33170

RIM

- (takes 16.9 x 34 or 18.4 x 34 tire)

2шт.

2

A34669

WHEEL ASSY. - standard hub (spoke type) (incl. Refs. 4 thru 7) (casting #A34652)

2шт.

3

A33232

WHEEL ASSY. - standard hub (solid) (Order A34669) (incl. Refs. 4 thru 7) (casting #A33221)

2шт.

4

A26351

CLAMP - hub

1шт.

5

A22389

WHEEL BOLT

BOLT - hub clamp (7/8 x 7-1/2" N.F. hex.)

4шт.

6

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

7

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

8

A33171

CLAMP

- rim to wheel (double ramp type)

12шт.

9

117-601

BOLT,Sq Hd, 3/4" - 10 x 3", Gr 5

- clamp (3/4 x 3" N.C., sq. hd.)

12шт.

10

A34799

LOCK WASHER

- lock, clamp bolt (Replaces A34161)

12шт.

11

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- (3/4" N.C. hex.)

12шт.

12

A9406

STOP

LUG - rim stop

4шт.

13

A9440

STOP

SCREW - lock, stop lug

4шт.

18

A33170

RIM

- (takes 16.9 x 34 or 18.4 x 34 tire)

2шт.

19

A33172

WHEEL

- universal hub, Includes: Ref. 20 - 24

2шт.

20

A22646

HUB ASSY. - universal

2шт.

21

A26351

CLAMP - hub

1шт.

22

A22389

WHEEL BOLT

BOLT - hub clamp (7/8 x 7-1/2" N.F. hex.)

4шт.

23

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

24

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Hub to wheel Hex, 5/8"-11 x 2 1/2", G5

16шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

27

A33171

CLAMP

- rim to wheel (double ramp type)

12шт.

28

117-601

BOLT,Sq Hd, 3/4" - 10 x 3", Gr 5

- clamp (3/4 x 3" N.C. sq. hd.)

12шт.

29

A34799

LOCK WASHER

- lock, clamp bolt (Replaces A34161)

12шт.

30

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- (3/4" N.C. hex.)

12шт.

31

A9406

STOP

LUG - rim stop

4шт.

32

A9440

STOP

SCREW - lock, stop lug

4шт.

Выбрано товаров: 28
