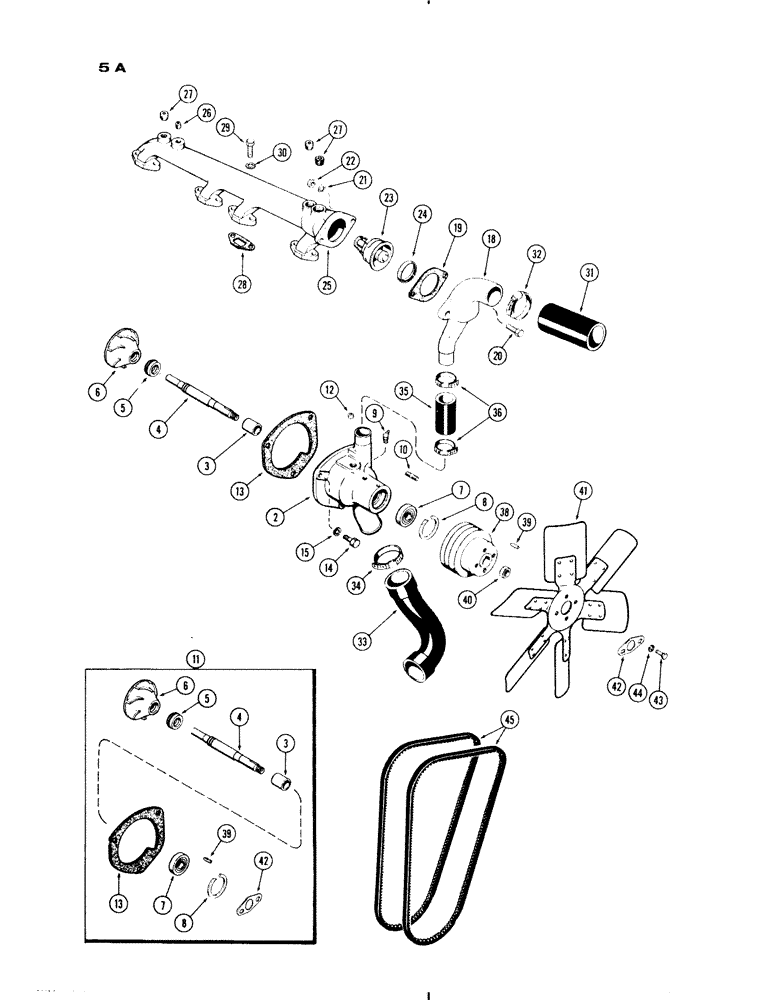

Запчасти Case IH 730 SERIES (005A) - WATER PUMP AND ATTACHING PARTS (02) - ENGINE

A21459

PUMP

ASSY. - water (not illust.), Includes: Ref. 2 - 10

1шт.

2

A11496

BODY

ASSY. - water pump, Includes: Ref. 3

1шт.

3

A27900

BUSHING

- shaft

1шт.

Part of REPAIR KIT, P/N A24181

1шт.

4

A23636

SHAFT

- water pump

1шт.

Part of REPAIR KIT, P/N A24181

1шт.

5

A24995

SEAL

- water pump

1шт.

Part of REPAIR KIT, P/N A24181

1шт.

6

A153453

TURBINE

IMPELLER - water pump (Replaces A26334)

1шт.

Part of REPAIR KIT, P/N A24181

1шт.

7

A27152

BALL BEARING,19.99mm ID x 52mm OD x 19mm W

BEARING - shaft

1шт.

Part of REPAIR KIT, P/N A24181

1шт.

8

A27150

RING

- snap, bearing retaing

1шт.

Part of REPAIR KIT, P/N A24181

1шт.

9

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 67-1/2 degree)

1шт.

10

A7391

STUD

- gen. adj. strap (3/8" N.C./N.F. x 1-1/8")

1шт.

11

A24181

KIT, FIRST AID

REPAIR KIT - water pump, Includes Refs., 3, 4, 5, 6, 7, 8, 13, 39 and 42

1шт.

12

221-1843

PLUG

- body (not used w/L.P.) (3/8" P.T. sckt. hd.)

1шт.

13

A57596

GASKET

- water pump (Replaces A27899)

1шт.

Part of REPAIR KIT, P/N A24181

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

15

92-6

LOCK WASHER,3/8"

3шт.

18

A20866

HOUSING - thermostat

1шт.

19

A28113

GASKET

-, Serial Range: housing-manifold

1шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hsg. (3/8 x 1-1/2" N.C. hex.)

1шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Housing Hex, 3/8"-16 x 1 3/4", G5

1шт.

21

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

23

A28114

THERMOSTAT

ASSY., Includes: Ref. 24

1шт.

24

A30954

GASKET

SEAL - thermostat

1шт.

25

A57995

MANIFOLD

ASSY. - water (Replaces A21031), Includes: Ref. 26 and 27

1шт.

26

221-843

PLUG,Hex Soc, 3/8"-18

- (3/8" P.T., sq. sckt. hd.)

1шт.

27

221-844

PLUG,Hex Soc, 1/2"-14

- (1/2" P.T., sq. sckt. hd.)

3шт.

28

A27905

GASKET

- manifold

4шт.

29

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Manifold Hex, 5/16"-18 x 1 1/8", G5

8шт.

31

A24293

LARGE HOSE,2.50" ID x 6.19", SAE 20R4 CLASS R

RADIATOR HOSE, , Inlet 2.50" ID x 6.19", SAE 20R4 CLASS R

1шт.

32

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16" to 3-1/4" clamp)

2шт.

33

A20384

RADIATOR HOSE,1.75" ID, 2.00" ID x 6.69", SAE 20R4 Class R Grade 1A

- Radiator Outlet 1.75" ID, 2.00" ID x 6.69", SAE 20R4 Class R Grade 1A

1шт.

34

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

35

A28115

HOSE

- water by-pass (1-1/4" I.D. x 3-3/4")

1шт.

36

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4" clamp).

2шт.

38

A21454

PULLEY - fan & water pump drive

1шт.

39

A21075

KEY

- pulley

1шт.

Part of REPAIR KIT, P/N A24181

1шт.

40

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - pulley ret. (5/8" N.F. hex., jam)

1шт.

41

A23106

HALF BLADE

FAN - radiator

1шт.

42

A26707

LOCK

STRAP - lock, pulley nut

1шт.

Part of REPAIR KIT, P/N A24181

1шт.

43

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Fan Hex, 3/8"-16 x 7/8", G5, Full Thd

4шт.

44

92-6

LOCK WASHER,3/8"

4шт.

45

A21457

SET OF BELTS,50.50" L

SET OF 2 BELTS , Assy, Fan 50.50" L

1шт.
