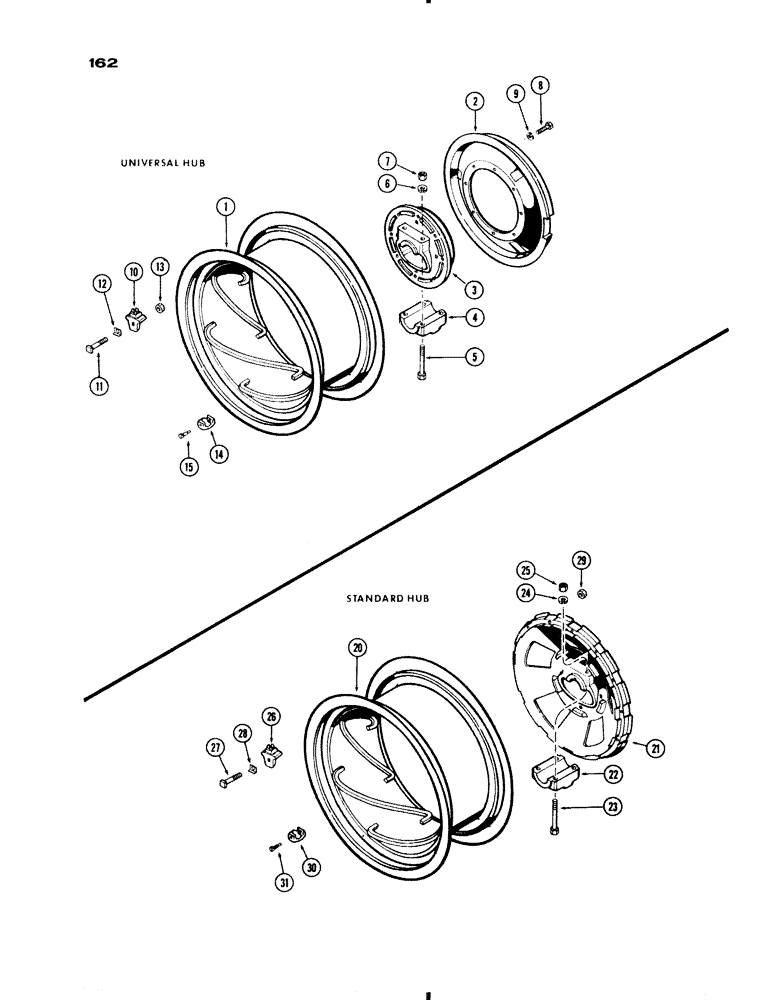

Запчасти Case IH 730 SERIES (162) - REAR WHEELS W/34" RIMS, 3-3/16" AXLE 48" TO 88", POWER ADJUSTABLE, GEN PURP., 4 WHEEL & WEST. (06) - POWER TRAIN

1

A33170

RIM

- (takes 18.4 x 34 or 16.9 x 34 tire)

2шт.

2

A33172

WHEEL

- universal hub

2шт.

3

A22668

HUB ASSY. - universal, Includes: Ref. 4 - 7

2шт.

4

A57032

CAP

- hub

1шт.

5

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F. hex.)

4шт.

6

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

7

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

A33171

CLAMP

-, Serial Range: rim-wheel

12шт.

11

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- rim clamp (3/4 x 3" N.C., sq. hd.)

12шт.

12

A34799

LOCK WASHER

- lock, clamp bolt

12шт.

13

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.)

12шт.

14

A9406

STOP

- wheel

4шт.

15

A9440

STOP

SCREW - lock, wheel stop

4шт.

20

A33170

RIM

- (takes 18.4 x 34 or 16.9 x 34 tire), Includes: Ref. 22 - 25

2шт.

21

A34116

RIM

WHEEL ASSY. - standard hub (Casting #A34117)

2шт.

20

A33170

RIM

- (takes 18.4 x 34 or 16.9 x 34 tire)

2шт.

22

A57032

CAP

- hub

1шт.

23

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F. hex.)

4шт.

24

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

25

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

26

A33171

CLAMP

-, Serial Range: rim-wheel

12шт.

27

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- clamp (3/4 x 3" N.C. sq. hd.)

12шт.

28

A34799

LOCK WASHER

- lock, clamp bolt

12шт.

29

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.)

12шт.

30

A9406

STOP

- wheel

4шт.

31

A9440

STOP

SCREW - lock, wheel stop

4шт.
