Запчасти Case IH 730 SERIES (161C) - REAR WHEELS W/30" RIMS, MANUAL ADJUST, GEN PURP, 3" AXLE 48 TO 88", NON ADJUST 4 WHEEL AND WESTERN (06) - POWER TRAIN

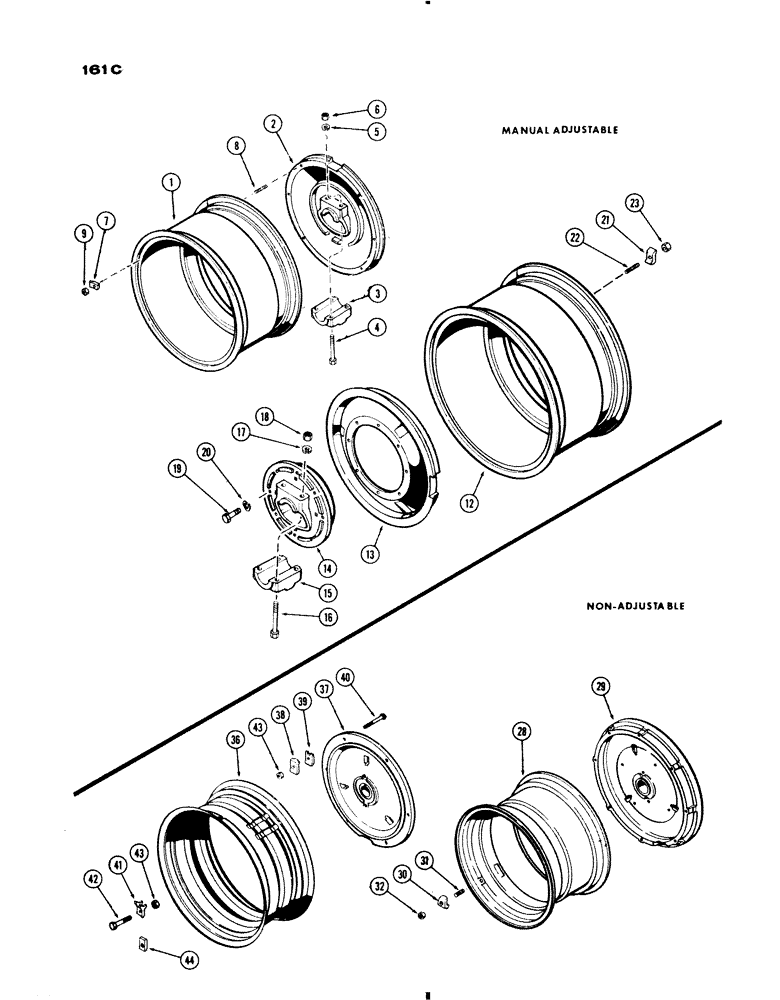

Схема запчастей Case IH 730 SERIES - (161C) - REAR WHEELS W/30" RIMS, MANUAL ADJUST, GEN PURP, 3" AXLE 48 TO 88", NON ADJUST 4 WHEEL AND WESTERN (06) - POWER TRAIN
23
8
14
6
43
22
21
17
36
38
19
32
9
42
28
3
43
29
41
40
7
4
37
30
13
12
2
18
5
15
16
44
1
39
31
20

Артикул

Название

Примечание

Количество

1

A33176

RIM

- (takes 23.1 x 30 tire)

2шт.

2

A33473

WHEEL ASSY. - standard hub (casting #A33472), Includes: Ref. 3 - 6

2шт.

3

A26351

CLAMP - hub

1шт.

4

A22389

WHEEL BOLT

BOLT - hub clamp (7/8 x 7-1/2" N.F. hex.)

4шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

6

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

7

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

8

A27179

STUD

- clamp (5/8" N.C. x 2-3/8")

12шт.

9

A27183

NUT

- clamp stud (5/8" N.C. hex. spec.)

12шт.

12

A33176

RIM

- (takes 23.1 x 30 tire)

2шт.

13

A33175

WHEEL

- universal hub

2шт.

14

A22646

HUB ASSY. - universal, Includes: Ref. 15 - 18

2шт.

15

A26351

CLAMP - hub

1шт.

16

A22389

WHEEL BOLT

BOLT - hub clamp (7/8 x 7-1/2" N.F. hex.)

4шт.

17

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

18

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

19

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Hub to wheel Hex, 5/8"-11 x 2 1/4", G5

16шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

21

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

22

A27179

STUD

- clamp (5/8" N.C. x 2-3/8")

12шт.

23

A27183

NUT

- clamp stud (5/8" N. C. hex. spec.)

12шт.

28

A7340

RIM - (takes 18.4 x 30 tire), non-adjustable 4 wheel and western

2шт.

29

A7346

WHEEL - center, non-adjustable 4 wheel and western

2шт.

30

F62001

CLAMP

- rim to wheel, non-adjustable 4 wheel and western

12шт.

31

A27179

STUD

- clamp (5/8" N.C. x 2-3/8"), non-adjustable 4 wheel and western

12шт.

32

A27183

NUT

- clamp (5/8" N.C. hex., spec.), non-adjustable 4 wheel and western

12шт.

36

A9149

RIM - (takes 16.9 x 30 or 18.4 x 30 tire), non-adjustable 4 wheel and western

2шт.

37

A9125

WHEEL - center, non-adjustable 4 wheel and western

2шт.

38

A28220

CLAMP

- wheel mounting, male, non-adjustable 4 wheel and western

8шт.

39

A28219

CLAMP

- wheel mounting, female, non-adjustable 4 wheel and western

8шт.

40

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

Clamp, non-adjustable 4 wheel and western Hex, 5/8"-11 x 3", G5

8шт.

41

A26347

CLAMP

- wheel drive, non-adjustable 4 wheel and western

4шт.

42

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Clamp, non-adjustable 4 wheel and western Hex, 5/8"-11 x 2 1/2", G5

4шт.

43

A27183

NUT

- clamp bolt (5/8" N.C. hex. spec.), non-adjustable 4 wheel and western

8шт.

44

A28733

LUG

ASSY. - locking, non-adjustable 4 wheel and western

8шт.

Выбрано товаров: 35
