Запчасти Case IH 730 SERIES (161A) - REAR WHEELS W/30" RIMS, MANUAL ADJUST, GEN. PURPOSE 4 WHEEL & WEST., 3-3/16" AXLE 48 TO 88" (06) - POWER TRAIN

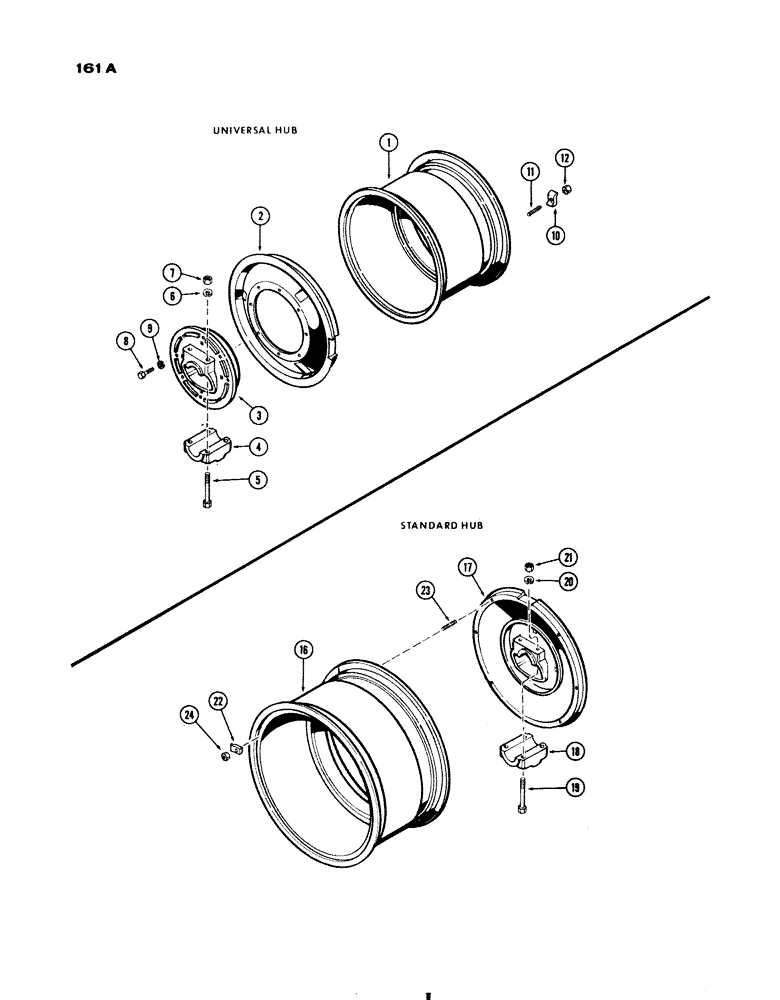

Схема запчастей Case IH 730 SERIES - (161A) - REAR WHEELS W/30" RIMS, MANUAL ADJUST, GEN. PURPOSE 4 WHEEL & WEST., 3-3/16" AXLE 48 TO 88" (06) - POWER TRAIN
21
17
18
23
6
16
20
19
4
9
3
1
10
22
5
12
11
24
2
7
8

Артикул

Название

Примечание

Количество

1

A27315

RIM - (takes 16.9 x 30 or 18.4 x 30 tire)

2шт.

2

A33175

WHEEL

- universal hub

2шт.

3

A22668

HUB ASSY. - universal, Includes: Ref. 4 - 7

2шт.

4

A57032

CAP

- hub

1шт.

5

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F. hex.)

4шт.

6

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

7

25-114

NUT,1/4"-28, G5

- (7/8" N.F.hex.)

4шт.

8

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Wheel to hub Hex, 5/8"-11 x 2 1/4", G5

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

11

A60047

STUD

- clamp (5/8" N.C. x 2-7/16")

12шт.

12

A27183

NUT

- clamp stud (5/8" N.C. hex.)

12шт.

16

A33176

RIM

- (Takes 16.9 x 30 or 18.4 x 30 tire)

2шт.

17

A33294

WHEEL

ASSY. - standard hub (Casting #A33177), Includes: Ref. 18 - 21

2шт.

18

A57032

CAP

- hub

1шт.

19

A22389

WHEEL BOLT

BOLT - cap to wheel hub (7/8 x 7-1/2" N.F. hex.)

4шт.

20

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

21

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

22

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

23

A60047

STUD

- clamp (5/8" N.C. x 2-7/16")

12шт.

24

A27183

NUT

- clamp stud (5/8" N.C. hex.)

12шт.

Выбрано товаров: 21
