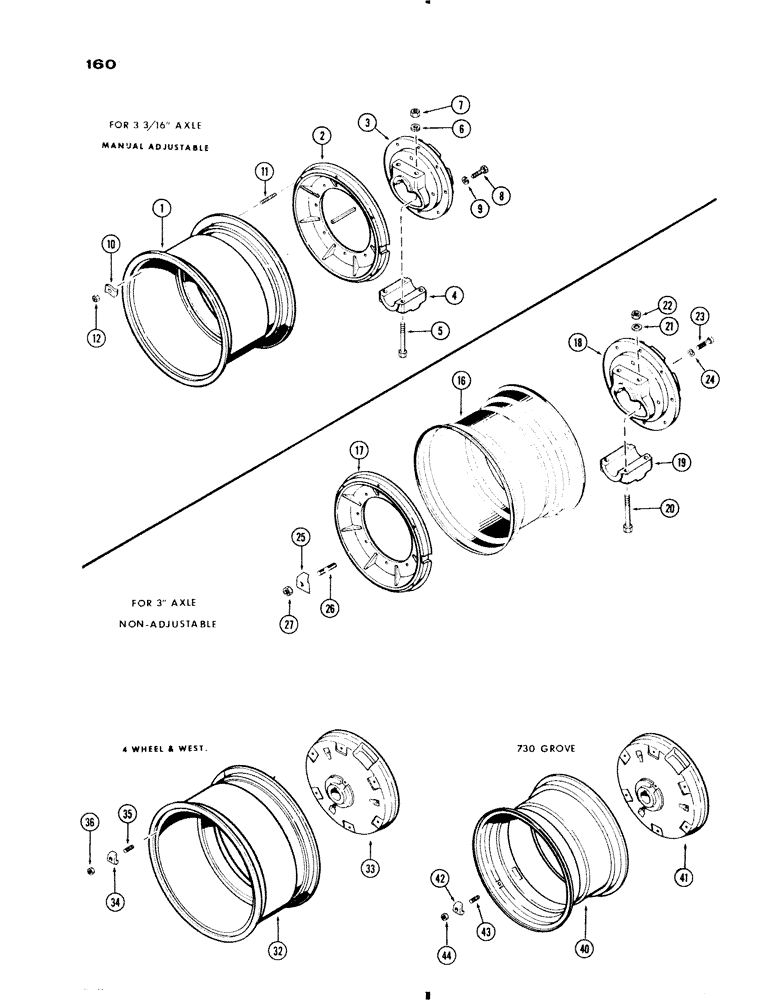

Запчасти Case IH 730 SERIES (160) - REAR WHEELS W/26" RIMS, 3-3/16" AXLE AND 3" AXLE, 48" TO 88", VARIOUS STYLES (06) - POWER TRAIN

1

A23039

RIM - (takes 23.1 x 26 tire)

2шт.

2

F1254

WHEEL - universal hub

2шт.

3

A22668

HUB ASSY. - universaland length of 30 11/32 "4 - 7

2шт.

4

A57032

CAP

- hub

1шт.

5

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F. hex.)

4шт.

6

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

7

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex,)

4шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Wheel to hub Hex, 5/8"-11 x 1 3/4", G5, Full Thd

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

11

A27179

STUD

- clamp (5/8" N.C. x 2-3/8")

12шт.

12

A27183

NUT

- clamp stud (5/8" N.C. hex.)

12шт.

16

A23039

RIM - (takes 23.1 x 26 tire), 3" axle, 48" to 88", manual adjustable general purpose

2шт.

17

F1254

WHEEL - universal hub, 3" axle, 48" to 88", manual adjustable general purpose

2шт.

18

A22646

HUB ASSY. - universal, Includes: Ref. 19 - 22, manual adjustable general purpose

2шт.

19

A26351

CLAMP - hub, 3" axle, 48" to 88", manual adjustable general purpose

1шт.

20

A22389

WHEEL BOLT

BOLT - hub clamp (7/8 x 7-1/2" N.F. hex.), 3" axle, 48" to 88", manual adjustable general purpose

4шт.

21

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , 3" axle, 48" to 88", Manual adjustable general purpose 7/8"

4шт.

22

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.), 3" axle, 48" to 88", manual adjustable general purpose

4шт.

23

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Hub to wheel, 3" axle, 48" to 88", manual adjustable general purpose Hex, 5/8"-11 x 1 3/4", G5, Full Thd

16шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 3" axle, 48" to 88", Manual adjustable general purpose 5/8"

16шт.

25

F62001

CLAMP

- rim to wheel, 3" axle, 48" to 88", manual adjustable general purpose

12шт.

26

A27179

STUD

- clamp (5/8" N.C. x 2-3/8"), 3" axle, 48" to 88", manual adjustable general purpose

12шт.

27

A27183

NUT

- clamp stud (5/8" N.C. hex.), 3" axle, 48" to 88", manual adjustable general purpose

12шт.

32

A8736

RIM - (takes 23.1 x 26 tire), non-adjustable 4 wheel and western

2шт.

33

A7343

WHEEL - center, non-adjustable 4 and western

2шт.

34

A26908

CLAMP

- rim to center wheel, non-adjustable 4 and western

12шт.

35

A27179

STUD

- clamp (5/8" N.C. x 2-3/8"), non-adjustable 4 wheel and western

12шт.

36

A27183

NUT

- clamp (5/8" N.C. hex.), non-adjustable 4 wheel and western

12шт.

40

A27310

RIM - (takes 16.9 x 26 or 18.4 x 26 tire), 730 grove

2шт.

41

A7343

WHEEL - center, 730 grove

2шт.

42

A26908

CLAMP

- rim to center disc., 730 grove

8шт.

43

A27179

STUD

- clamp (5/8" N.C. x 2-3/8"), 730 grove

8шт.

44

A27183

NUT

- clamp stud (5/8" N.C. hex.), 730 grove

8шт.
