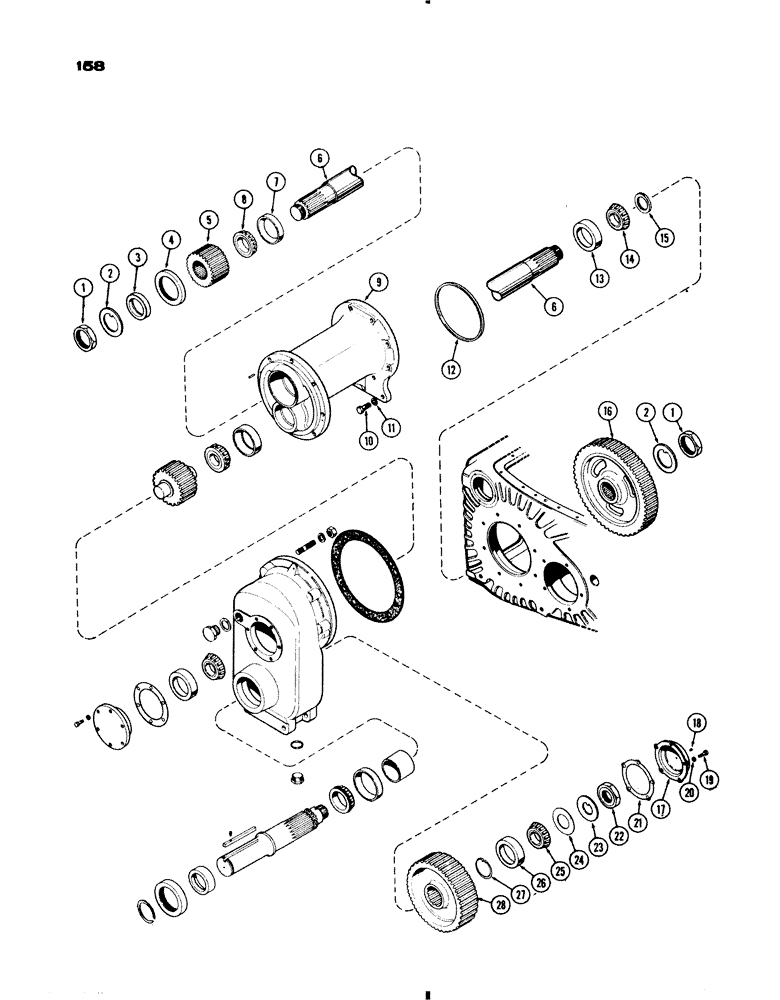

Запчасти Case IH 730 SERIES (158) - REAR AXLE, HIGH CLEARANCE (06) - POWER TRAIN

1

A23386

NUT

- upper shaft

4шт.

2

A28137

LOCK WASHER

WASHER - lock, upper shaft nut

4шт.

3

A7867

COLLAR - upper axle shaft

2шт.

4

A7870

OIL SEAL

SEAL - oil, upper shaft (4 x 5-1/2 x 9/16")

2шт.

5

A7873

GEAR - driven, upper axle (20 teeth)

2шт.

6

A7866

SHAFT - axle, upper

2шт.

7

A7868

BEARING

CUP - bearing, outer

2шт.

8

A7869

CONE - bearing, outer

2шт.

9

A33637

HOUSING - rear axle, upper

2шт.

10

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

12

A33050

OIL SEAL

GASKET - housing, inner

2шт.

13

A28134

BEARING CUP

CUP - bearing, inner

2шт.

14

A28135

ROLLER BEARING,3.0625" ID x 1.172"

CONE - bearing, inner

2шт.

15

A28143

WASHER - thrust, ring gear (3-3/32 x 4-1/8 x 1/8")

2шт.

16

A7863

GEAR - ring, rear axle

2шт.

17

A7894

CAP - lower, housing

2шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

- cap (1-1/8" P.T. sckt. hd.)

2шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

10шт.

20

92-6

LOCK WASHER,3/8"

10шт.

21

A7895

GASKET

- lower hsg. cap.

2шт.

22

A7885

NUT - lock, lower shaft

2шт.

23

A7887

WASHER - tab, lower shaft

2шт.

24

A7886

WASHER - lower shaft

2шт.

25

A7891

ROLLER BEARING

CONE - bearing, inner

2шт.

26

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, inner

2шт.

27

A7888

RING, SNAP

RING - snap, lower driven gear ret.

2шт.

28

A7881

GEAR - driven, lower axle (44 teeth)

2шт.

29

A7882

SPACER - lower gear (3-3/8 x 3-3/4 x 2-53/64")

2шт.

30

A7892

BEARING, CUP

CUP - bearing, outer

2шт.

31

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE - bearing, outer

2шт.

32

A22925

KEY

SHAFT - axle, lower (Replaces A10926)

2шт.

33

A57035

KEY

- axle (6" long) (.625 x .750 sq.) (See inset A), Start Serial: 8310335

2шт.

33

A34890

BUCKET TOOTH KEY

KEY - axle (6" long) (.625 x .625 sq.) (See inset A), Serial Range: -8310335

2шт.

33

A33984

NO LONGER SERVICED

KEY - axle (6-1/2" long) (.625 x .625 sq.) (Order A34890) (See inset A), Serial Range: -8310335

2шт.

34

A57036

KEY - axle (6" long) (.625 x .750 offset) (see inset B), Start Serial: 8310335

2шт.

34

A34891

KEY - axle (6" long) (.625 x .625 offset) ) (See inset B), Serial Range: -8310335

2шт.

35

A26375

PIN - key (1/4 x 1/2" solid)

1шт.

35

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key 1/4" x 1/2", Slotted

1шт.

36

A7884

COLLAR - lower shaft, outer

2шт.

37

A7889

SEAL

- oil, lower shaft, outer (4 x 5-1/2 x 15/16")

2шт.

38

A28145

RING, SNAP

RING - snap, lower shaft, outer

2шт.

39

A7871

HOUSING - rear axle, lower

2шт.

40

A7872

GASKET

- housing, outer

2шт.

41

A14280

PLUG

- drain, lower hsg.

2шт.

42

A27927

OIL PAN GASKET SET

- drain plug (3/4 x 14 Ga. copper)

2шт.

43

A7356

PLUG

- oil filler

2шт.

44

A7357

GASKET - plug (1-1/2 x 1-3/4 x 1/16" copper)

2шт.

45

A7875

CARRIER - lower drive gear brg.

2шт.

46

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

47

92-8

LOCK WASHER,1/2"

12шт.

48

A7878

SHIM - carrier (.003")

1шт.

48

A7879

SHIM - carrier (.005")

1шт.

48

A7880

SHIM - carrier (.010")

1шт.

49

A7876

GASKET

CUP - bearing

4шт.

50

A7877

CONE - bearing

4шт.

51

A7874

GEAR - drive, lower axle (23 teeth)

2шт.

52

A7077

DOWEL

PIN - locating, axle hsg. (1/2 x 1-3/8")

4шт.

53

A50237

STUD

- lower hsg. (5/8" N.C. x 2-1/2" )

16шт.

54

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

55

25-1010

NUT,5/8"-11, G5

16шт.
