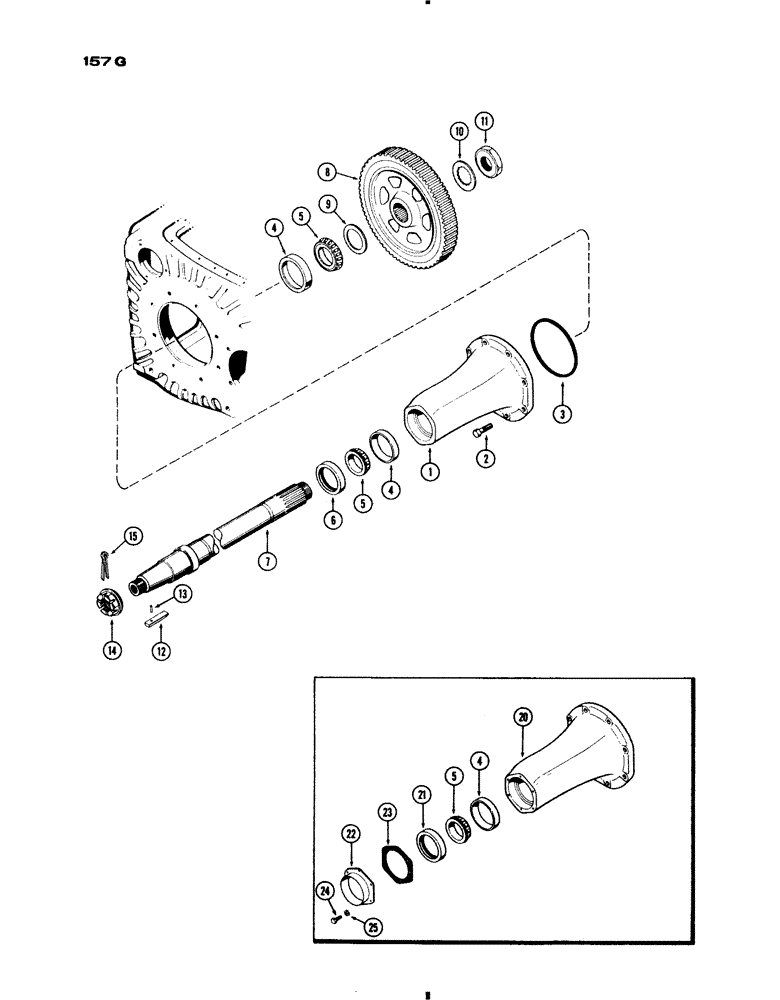

Запчасти Case IH 730 SERIES (157G) - REAR AXLE, 730 GROVE, 3" AXLE 48" TO 88" (06) - POWER TRAIN

1

A60020

SPARE PART

HOUSING - axle (Replaces A34656) (See Ref. 20)

2шт.

2

113-663

BOLT (SPREADER)

BOLT - housing (5/8 x 2-1/4" N.C. hex)

16шт.

3

A33050

OIL SEAL

- housing (9 x 9-1/4 x 1/8")

2шт.

4

A28134

BEARING CUP

CUP - bearing (5-1/4" O.D.)

4шт.

5

A28135

ROLLER BEARING,3.0625" ID x 1.172"

CONE - bearing (3" I.D.)

4шт.

6

A34656

OIL SEAL

- oil (3-3/4 x 5-1/4 x 7/16") (used w/A34655 housing)

2шт.

7

A33046

SHAFT - axle (w/33 spline teeth) 30 11/32 long

2шт.

8

NLS

NO LONGER SERVICED

- drive (2-7/8" I.D. w/33 internal teeth)

2шт.

9

A33048

WASHER - thrust, drive gear (3-3/32 x 4-1/4 x 7/16")

2шт.

10

A32806

LOCK WASHER

- lock, drive gear

2шт.

11

A23386

NUT

- drive gear retaining

2шт.

12

A22917

KEY

- axle (4" long) (1/2 x 3/4")

2шт.

13

A29426

AXLE PIN

PIN - key (3/8 x 3/4")

2шт.

14

A23385

NUT

- axle

2шт.

15

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , Nut 1/4" x 2 1/2"

2шт.

20

A23640

HOUSING - axle (Order 1-A60020 Hsg. & 1-A34656 Oil Seal), Serial Range: -8292763

2шт.

21

A28138

OIL SEAL

SEAL - oil (3-3/4 x 4-3/4 x 15/16") (used w/A26340 housing)

2шт.

22

A28139

GUARD

- dust (used w/A26340 housing)

2шт.

23

A28140

GASKET

- dust guard

2шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Guard Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

25

92-5

LOCK WASHER,5/16"

12шт.
