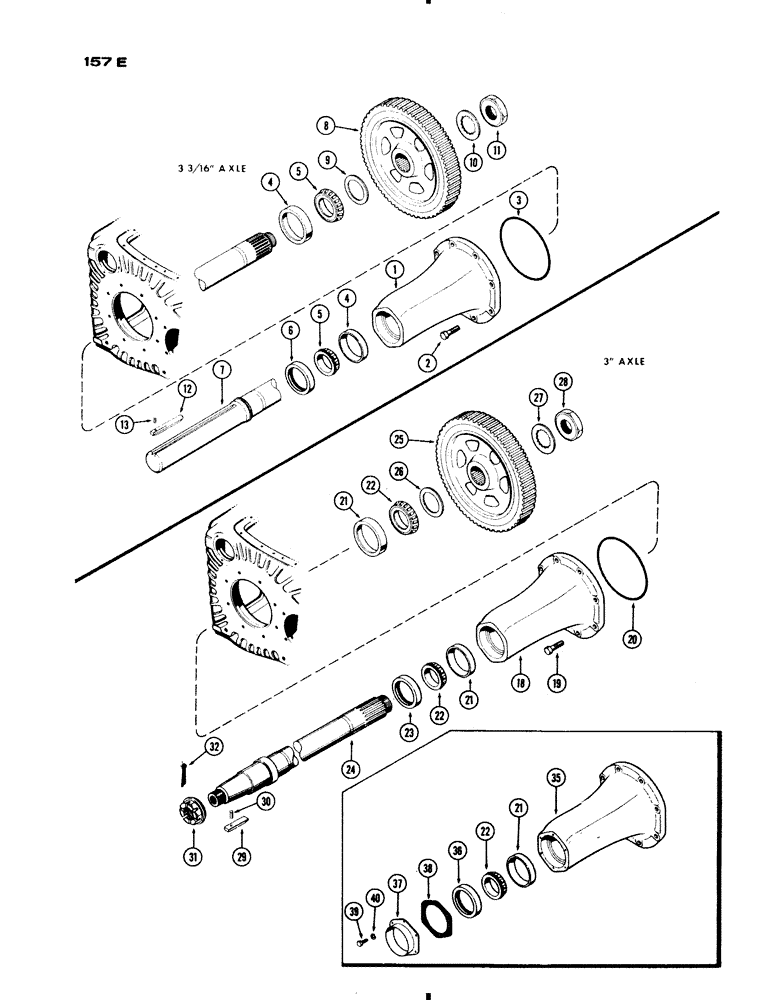

Запчасти Case IH 730 SERIES (157E) - REAR AXLE, WESTERN MODELS, 3-3/16" AXLE 48" TO 88", 3" AXLE 18" TO 88" (06) - POWER TRAIN

1

A60020

SPARE PART

HOUSING - axle (Replaces A34655)

2шт.

2

113-663

BOLT (SPREADER)

BOLT - housing (5/8 x 2-1/4" N.C. hex.)

16шт.

3

A33050

OIL SEAL

- housing (9 x 9-1/4 x 1/8")

2шт.

4

A28134

BEARING CUP

CUP - bearing (5-1/4" O.D.)

4шт.

5

40442

ROLLER BEARING,3.25" ID x 1.172"

CONE - bearing (3-1/4" I.D.)

4шт.

6

A41814

SEAL

- oil (3-1/2 x 5-1/4 x 7/16")

2шт.

7

A57909

SHAFT

- axle, w/out collar & w/38 spline teeth

2шт.

8

A57910

GEAR - drive (3-5/16" I.D. w.38 internal spline)

2шт.

9

A57911

WASHER

- thrust (3-9/32 x 4-1/4 x 7/16")

2шт.

10

A32806

LOCK WASHER

- lock, drive gear

2шт.

11

A23386

NUT

- drive gear retaining

2шт.

12

A34890

BUCKET TOOTH KEY

KEY - axle (6" long) (.625 x .625 sq.)

2шт.

13

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key to axle 1/4" x 1/2", Slotted

2шт.

18

A34655

HOUSING AXLE - (1st used trac. ser. no. 8292763) (Order A60020), 3" axle, Serial Range: 48"-88"

2шт.

19

113-663

BOLT (SPREADER)

BOLT - housing (5/8 x 2-1/4" N.C. hex.), 3" axle, Serial Range: 48"-88"

16шт.

20

A33050

OIL SEAL

- housing (9 x 9-1/4 x 1/8"), 3" axle, Serial Range: 48"-88"

2шт.

21

A28134

BEARING CUP

CUP - bearing (5-1/4" O.D.), 3" axle, Serial Range: 48"-88"

4шт.

22

A28135

ROLLER BEARING,3.0625" ID x 1.172"

CONE - bearing (3" I.D.), 3" axle, 48" to 88"

4шт.

23

A34656

OIL SEAL

- oil (3-3/4 x 5-1/4 x 7/16") (used w/A34655 housing), 3" axle, Serial Range: 48"-88"

2шт.

24

A33052

RING

SHAFT - axle, w/collar & w/33 spline teeth, 3" axle, Serial Range: 48"-88"

2шт.

25

NLS

NO LONGER SERVICED

- drive (2-7/8" I.D. w/33 internal teeth), 3" axle, Serial Range: 48"-88"

2шт.

26

A33048

WASHER - thrust (3-3/32 x 4-1/4 x 7/16"), 3" axle, Serial Range: 48"-88"

2шт.

27

A32806

LOCK WASHER

- lock, drive gear, 3" axle, Serial Range: 48"-88"

2шт.

28

A23386

NUT

- drive gear retaining, 3" axle, Serial Range: 48"-88"

2шт.

29

A22917

KEY

- axle (4" long) (1/2 x 3/4"), 3" axle, Serial Range: 48"-88"

2шт.

30

A29426

AXLE PIN

PIN - key to axle (3/8 x 3/4"), 3" axle, Serial Range: 48"-88"

2шт.

31

A23385

NUT

- axle, 3" axle, Serial Range: 48"-88"

2шт.

32

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), , Nut, 3" axle, 48" to 88" 1/4" x 2 1/2"

2шт.

35

A26340

X

HOUSING - axle (used prior to trac. ser. no. 8292763) (Order 1-A60020 hsg. & 1-A34656 Oil Seal), 3" axle, Serial Range: 48"-88"

2шт.

36

A28138

OIL SEAL

SEAL - oil (3-3/4 x 4-3/4 x 15/16") (used w/A26340 housing), 3" axle, Serial Range: 48"-88"

2шт.

37

A28139

GUARD

- dust (used w/A26340 housing), 3" axle, Serial Range: 48"-88"

2шт.

38

A28140

GASKET

- dust guard, 3" axle, Serial Range: 48"-88"

2шт.

39

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Guard, 3" axle, 48" to 88" Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

40

92-5

LOCK WASHER,5/16"

3" axle, 48" to 88" 5/16"

12шт.
