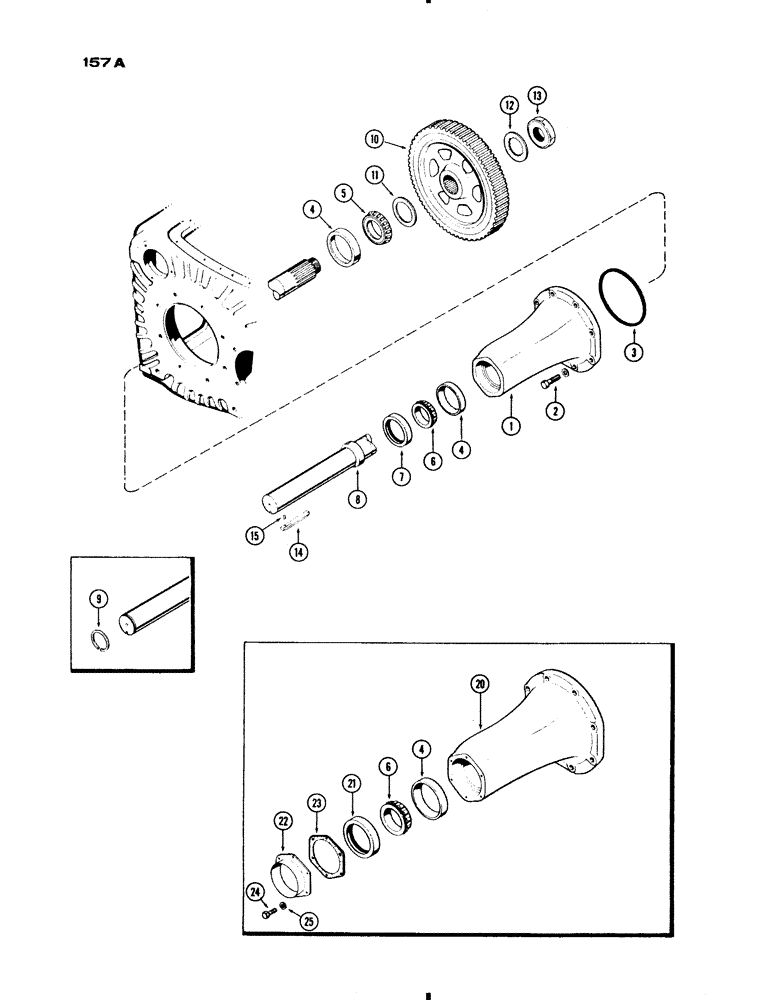

Запчасти Case IH 730 SERIES (157A) - REAR AXLE, GEN PURPOSE MODELS, 3-3/16" AXLE, 52" TO 108" (06) - POWER TRAIN

1

A60020

SPARE PART

HOUSING - axle (Replaces A34655) (See Ref. 20)

2шт.

2

113-663

BOLT (SPREADER)

BOLT - housing (5/8 x 2-1/4" N.C. hex.)

16шт.

3

A33050

OIL SEAL

- housing (9 x 9-1/4 x 1/8" rubber)

2шт.

4

A28134

BEARING CUP

CUP - bearing (5-1/4" O.D.)

4шт.

5

A28135

ROLLER BEARING,3.0625" ID x 1.172"

CONE - bearing, inner (3" I.D.)

2шт.

6

A7122

ROLLER BEARING,3.3125" ID x 1.172"

CONE - bearing, outer (3-5/16" I.D.)

2шт.

7

A34656

OIL SEAL

- oil (3-3/4 x 5-1/4 x 7/16") (Used w/A60020 Hsg.)

2шт.

8

A57507

SHAFT - rear axle (replaces A33056) (w/33 spline teeth is 51.25" long and has a 3 3/16 O.D.)

2шт.

9

A7123

RING - snap (5/32" thick) (used on axle shafts w/snap ring groove)

2шт.

10

NLS

NO LONGER SERVICED

- drive (2-7/8" I.D. w/33 internal teeth)

2шт.

11

A33048

WASHER - thrust, drive gear (3-32 x 4-1/4 x 7/16")

2шт.

12

A32806

LOCK WASHER

- lock, drive gear

2шт.

13

A23386

NUT

- drive gear retaining

2шт.

14

A57035

KEY

- axle (6" long) (.625 x .750 sq.)

2шт.

15

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key 1/4" x 1/2", Slotted

2шт.

20

A26340

X

HOUSING - axle (used prior to trac. ser. no. 8292763) (Order 1-A60020 Hsg. & 1-A34656 Oil Seal)

2шт.

21

A28138

OIL SEAL

SEAL - oil (3-3/4 x 4-3/4 x 15/16") (used w/A26340 housing)

2шт.

22

A28139

GUARD

- dust (used w/A26340 housing)

2шт.

23

A28140

GASKET

- dust guard

2шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Guard Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

25

92-5

LOCK WASHER,5/16"

12шт.
