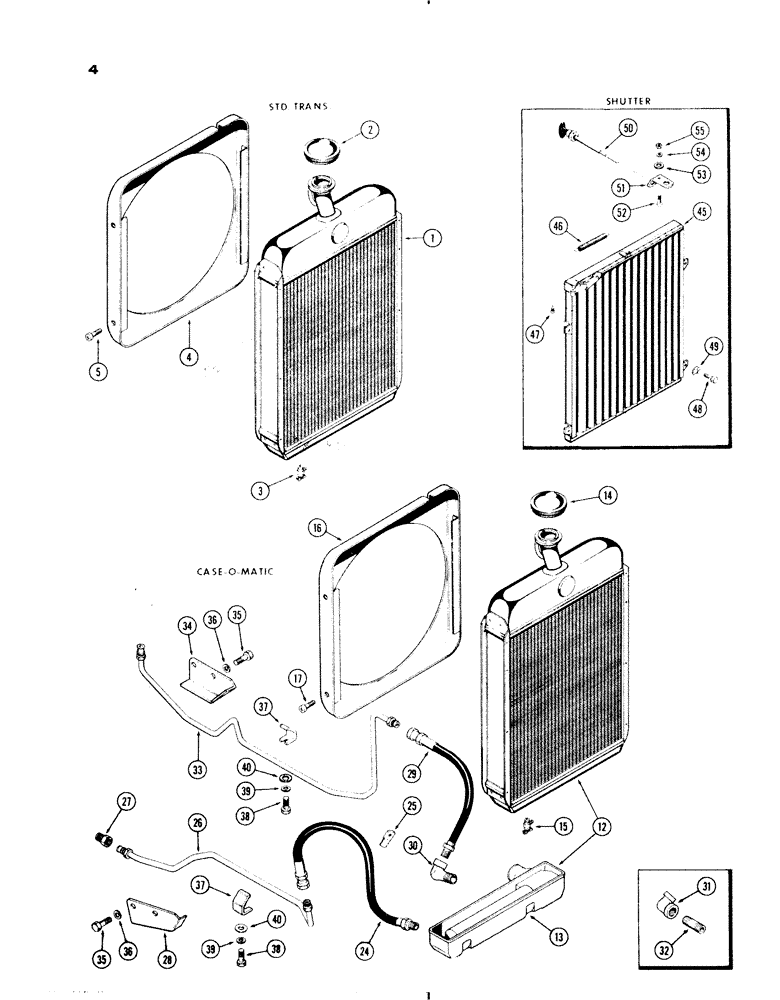

Запчасти Case IH 730 SERIES (004) - RADIATOR, STANDARD TRANSMISSION, RADIATOR AND COOLER LINES TORQUE CONVERTER, RADIATOR SHUTTERS (02) - ENGINE

1

A33625

RADIATOR - (except Grove) (filler neck 5-7/8")

1шт.

1

A21649

RADIATOR

- (Grove) (filler neck 27/32")

1шт.

2

A21389

CAP

- radiator

1шт.

3

A23655

VALVE

COCK - radiator drain

1шт.

4

A20925

SHROUD - radiator fan

1шт.

5

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- shroud (1/4 x 1/2" N.C. Phillips hd.)

4шт.

12

A33624

RADIATOR ASSY, Includes: Ref. 13, cooler lines torque converter

1шт.

13

A40232

TANK - oil cooler, radiator lines torque converter

1шт.

14

A21389

CAP

- radiator & cooler lines torque converter

1шт.

15

A23655

VALVE

COCK - radiator drain, cooler lines torque converter

1шт.

16

A20925

SHROUD - radiator fan, cooler lines torque converter

1шт.

17

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- shroud (1/4 x 1/2" N.C. Phillips hd.), radiator & cooler lines torque converter

4шт.

24

A22624

HYDRAULIC HOSE,0.50" ID x 20.13"

0.50 " ID x 20.13" - Oil cooler, RH side, Radiator lines torque converter

1шт.

25

A20388

CLIP - hose retaining, radiator & cooler lines torque converter

1шт.

26

A23292

TUBE - conv. oil pump, right hand side, radiator & cooler lines torque converter

1шт.

27

A23109

CONNECTOR, ELEC

CONNECTOR - tube to oil pump, radiator & cooler lines torque converter

1шт.

28

A20169

GUARD - right hand tube (G.P. only), radiator & cooler lines torque converter

1шт.

29

A22623

HYDRAULIC HOSE,0.50" ID x 11.25"

- Oil cooler, LH side, Radiator lines torque converter 0.50" ID x 11.25"

1шт.

30

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- (90 degree street) (1/2" male & female threads) (1 piece), radiator & cooler lines torque converter

1шт.

31

221-1377

ELBOW,90 Degree, 1/2" NPT

- (90 degree) (1/2" female threads) (used w/ref. 32), radiator & cooler lines torque converter

1шт.

32

221-1187

NIPPLE, LUBE

NIPPLE - elbow (1/2" P.T. x 1-1/2") (used w/ref. 31), radiator & cooler lines torque converter

1шт.

33

A23293

TUBE - conv. control valve, left hand side, radiator & cooler lines torque converter

1шт.

34

A20170

GUARD - left hand tube (G.P. only), radiator & cooler lines torque converter

1шт.

35

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

Guard, radiator & cooler lines torque converter Hex, 5/8"-11 x 1", G5, Full Thd

4шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Radiator & cooler lines torque converter 5/8"

4шт.

37

A11627

CLIP - tubes, radiator & cooler lines torque converter

4шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- clip (3/8 x 1-1/4" N.C. hex.), radiator & cooler lines torque converter

4шт.

39

92-6

LOCK WASHER,3/8"

radiator & cooler lines torque converter 3/8"

4шт.

40

195-25

WASHER,3/8"

- (13/32 x 13/16 x 5/64"), radiator & cooler lines torque converter

4шт.

45

A21602

SHUTTER ASSY. - radiator, Includes: Ref. 46 - 48

1шт.

46

A21612

SPRING - shutter, radiator

1шт.

47

173-74

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- control (#8 x 5/16" N.C. rd. hd.), radiator shutter

1шт.

48

175-427

SCREW - shutter (1/4 x 1/2" N.C. Phillips hd.), radiator

4шт.

49

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.), radiator shutter

4шт.

50

A24370

CONTROL - shutter, radiator

1шт.

51

A22983

SUPPORT - shutter control guide, radiator

1шт.

52

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- support (1/4 x 5/8" N.C., Ph. truss hd.), radiator shutter

1шт.

53

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16"), radiator shutter

1шт.

54

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Radiator shutter 1/4"

1шт.

55

25-104

NUT,1/4"-20, G5

Radiator shutter 1/4"-20, G5

1шт.
