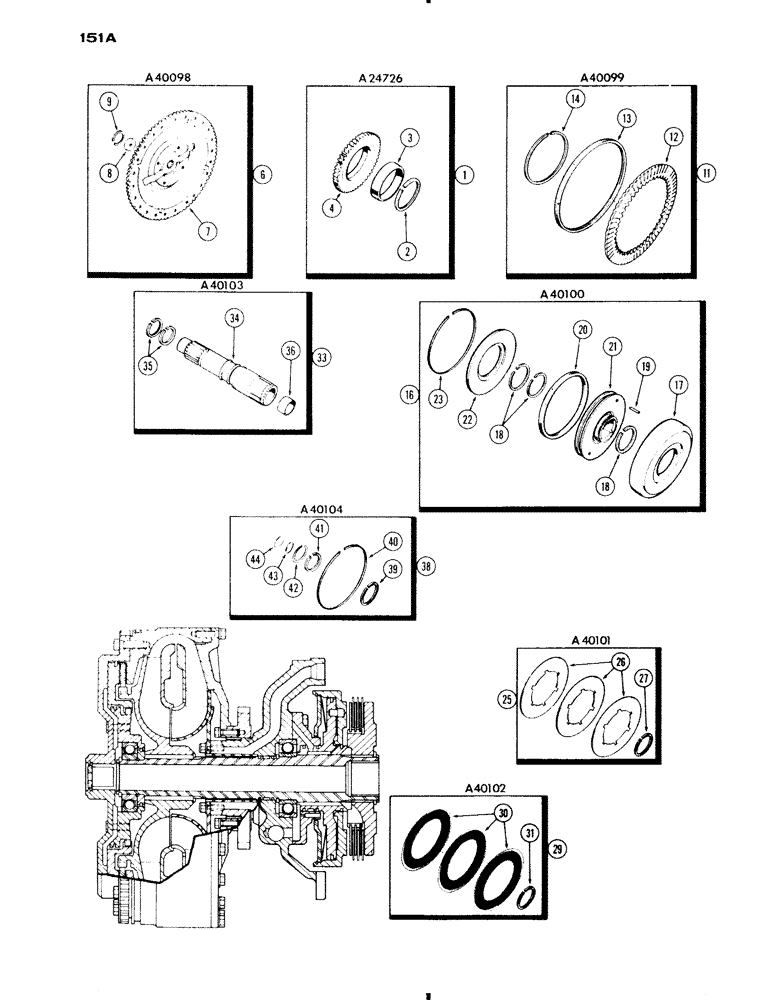

Запчасти Case IH 730 SERIES (151A) - TORQUE CONVERTER KITS (06) - POWER TRAIN

1

A24726

PUMP DRIVE KIT, Includes: Ref. 2 - 4

1шт.

See Fig. 150 for assembly sequence and part location of kit components.

1шт.

2

A20231

RING

- seal

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - (bronze) (order A24276)

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR - pump drive (order A24276)

1шт.

6

A40098

CARRIER LOCKUP KIT, Includes: Ref. 7 - 9

1шт.

See Fig. 150 for assembly sequence and part location of kit components.

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - (Order A40098)

1шт.

8

A40090

PLUG - carrier

1шт.

9

A20224

RING, SNAP

RING - snap, plug retaining

1шт.

11

A40099

PLATE ASSY.

PLATE AND RING KIT, Includes: Ref. 12 - 14

1шт.

See Fig. 150 for assembly sequence and part location of kit components.

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - clutch (Order A40099)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil seal (order A40099)

1шт.

14

NSS

NOT SOLD SEPARAT

RING - oil seal (order A40099)

1шт.

16

A40100

CARRIER AND PISTON KIT, Includes: Ref. 17 - 23

1шт.

See Fig. 150 for assembly sequence and part location of kit components.

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - (order A40100)

1шт.

18

A20228

RING

- piston

3шт.

19

A41621

PIN -, Serial Range: piston-carrier

2шт.

20

A40094

RING

- piston

1шт.

21

NSS

NOT SOLD SEPARAT

CARRIER - (order A40100)

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - (Order A40100)

1шт.

23

A20223

RING, SNAP

RING - snap, plate retaining

1шт.

25

A40101

PLATE

AND RING KIT, Includes: Ref. 26 and 27

1шт.

See Fig. 150 for assembly sequence and part location of kit components.

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE - (order A40101)

3шт.

27

NLS

NO LONGER SERVICED

RING - snap, back plate ret.

1шт.

29

A40102

PLATE

AND RING KIT, Includes: Ref. 30 and 31

1шт.

See Fig. 150 for assembly sequence and part location of kit components.

1шт.

30

NSS

NOT SOLD SEPARAT

PLATE - (order A40102)

3шт.

31

A40158

RING, SNAP

RING - snap, back plate retaining

1шт.

33

A40103

SEAT AND BUSHING KIT, Includes: Ref. 34 - 36

1шт.

See Fig. 150 for assembly sequence and part location of kit components.

1шт.

34

NSS

NOT SOLD SEPARAT

SLEEVE - output (order A40103)

1шт.

35

A20229

RING

- piston

2шт.

36

A22909

BEARING

BUSHING - sleeve

1шт.

38

A40104

SEAL

SNAP RING KIT, Includes: Ref. 39 - 44

1шт.

See Fig. 150 for assembly sequence and part location of kit components.

1шт.

39

NLS

NO LONGER SERVICED

RING - snap, back plate retaining

1шт.

40

A20223

RING, SNAP

RING - snap, converter plate ret.

1шт.

41

A20222

RING, SNAP

RING - snap, bearing retaining

1шт.

42

A22889

RING

- snap, turbine wheel

1шт.

43

A20234

X

RING - snap, bearing retaining

1шт.

44

A20224

RING, SNAP

RING - snap, plug retaining

1шт.
